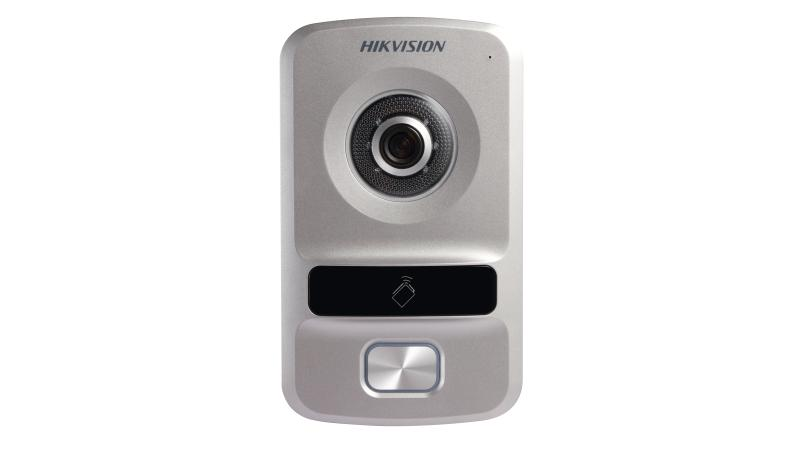

Plastic Villa Door Station

  • Villa Door Station, Plastic, 1-ch Indoor station access
  • 1.3 MP camera, IR Supplement(for I version), Visible light(for V version)
  • 1 Ethernet port, RS-485, one physical button
  • 4-ch alarm input,1-ch alarm output
  • IP65, 12 VDC

Specification

  • System parameters
  • ProcessorHigh-Performance Embedded SOC Processor
  • Operation systemEmbedded Linux Operation System
  • Network parameters
  • Ethernet10/100 Mbps Self-Adaptive Ethernet
  • Network protocolTCP/IP, RTSP
  • Device interfaces
  • Network interface1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
  • I/O input4
  • I/O output1
  • RS-4851 RS-485 Half-Duplex Port
  • USBPlastic
  • General
  • Power supply12 VDC
  • Power consumption≤12 W
  • Working temperature-40° C to +60° C (-40° F to 140° F)
  • Working humidity10% to 90%
  • IP protection levelIP65
  • CertificationFCC, IC, CE, C-TICK, ROHS, REACH, WEEE
  • Dimensions(L × W × H)164 mm × 97 mm × 54.4 mm (6.46" × 3.82" × 2.14")
  • Material24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)
