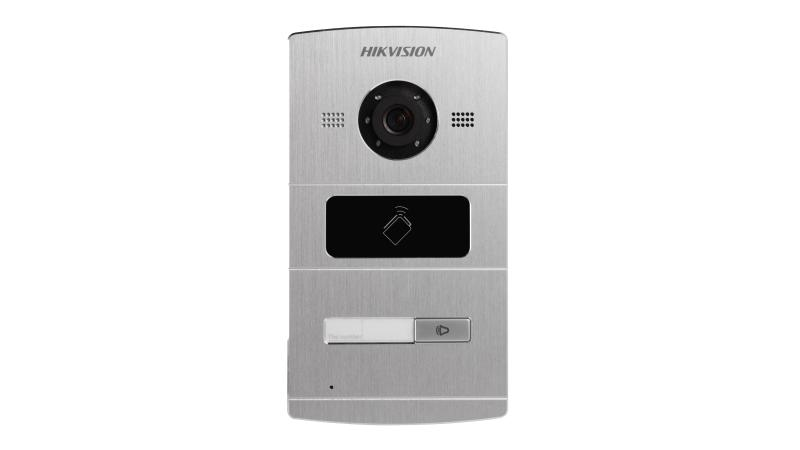

1, 2 or 4 Button Metal Villa Door Station

  • Villa Door Station, Aluminum alloy, 1-ch Indoor station access
  • 1.3 MP camera, IR Supplement
  • RS-485, 1 physical button, 4-ch alarm input,1-ch alarm output
  • IP65, 12 VDC.

Specification

  • System parameters
  • ProcessorHigh-Performance Embedded SOC Processor
  • Operation systemEmbedded Linux Operation System
  • Network parameters
  • Ethernet10/100 Mbps Self-Adaptive Ethernet
  • Network protocolTCP/IP, RTSP
  • Device interfaces
  • Network interface1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
  • I/O input4
  • I/O output1
  • RS-4851 RS-485 Half-Duplex Port
  • General
  • Power supply24 VDC, Power 12 VDCOver Network Cable (DS-KAD606, DS-KAD612)
  • Power consumption≤12 W
  • Working temperature-40° C to +60° C (-40° F to 140° F)
  • Working humidity10% to 90%
  • IP protection levelIP65
  • Indoor station access amount1
  • CertificationFCC, IC, CE, C-TICK, ROHS, REACH, WEEE
  • Dimensions(L × W × H)182 mm × 100 mm × 33 mm (7.17" × 3.94" × 1.30")
  • MaterialAluminum Alloy
