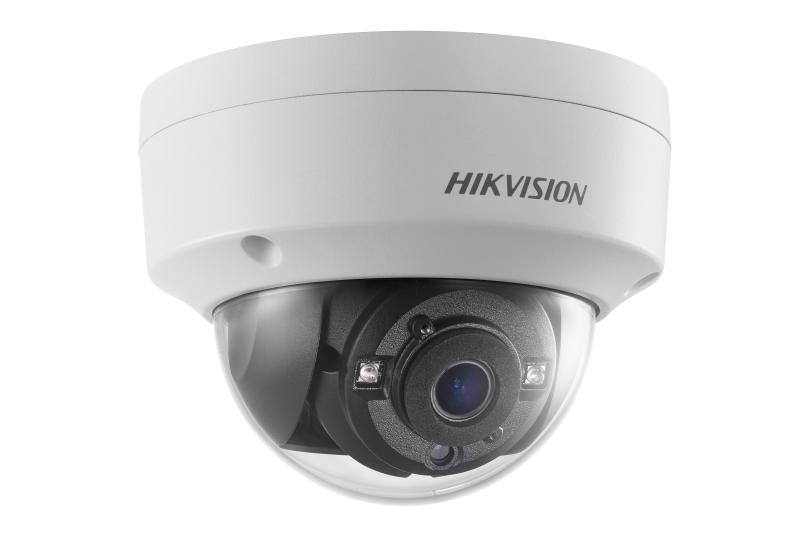

5 MP Vandal PoC Fixed Dome Camera

5 MP dome camera
EXIR 2.0: advanced infrared technology with 20 m IR distance
Water and dust resistant (IP67) and vandal proof (IK10)
Transmits both HD video and power over the same coaxial cable

View Less

Thông số sản phẩm

DS-2CE56H0T-VPITE

Specification
Resources
Accessories

Thông số sản phẩm

Camera
Image Sensor5 MP CMOS image sensor
Signal SystemPAL/NTSC
Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Resolution2560 (H) × 1944 (V)
Min. illuminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Lens2.8 mm, 3.6 mm, 6 mm fixed focal lens
Horizontal Field of View85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)
Lens MountM12
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355°

Menu
AGCSupport
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceATW/MWB
BLC (Backlight Compensation)Yes
LanguageEnglish, Chinese
FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR

Interface
Video Output1 HD analog output

General
Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply12 VDC ±25%, PoC.at
Power ConsumptionMax. 5.4 W
Protection LevelIP67, IK10
MaterialMetal
IR RangeUp to 20 m
CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
DimensionsØ 111 mm × 82.4 mm (Ø 4.4" × 3.2")
WeightApprox. 505 g (1.11 lb.)

Camera

Image Sensor

5 MP CMOS image sensor

Signal System

PAL/NTSC

Frame Rate

PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps

Resolution

2560 (H) × 1944 (V)

Min. illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Lens

2.8 mm, 3.6 mm, 6 mm fixed focal lens

Horizontal Field of View

85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)

Lens Mount

M12

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355°

AGC

Support

Day/Night Mode

Auto/Color/BW (Black and White)

White Balance

ATW/MWB

BLC (Backlight Compensation)

Yes

Language

English, Chinese

Functions

Brightness, Sharpness, DNR, Mirror, Smart IR

Interface

Video Output

1 HD analog output

General

Operating Condition

‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ±25%, PoC.at

Power Consumption

Max. 5.4 W

Protection Level

IP67, IK10

Material

Metal

IR Range

Up to 20 m

Communication

Up the coax, Protocol: HIKVISION-C (TVI output)

Dimensions

Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2")

Weight

Approx. 505 g (1.11 lb.)

Camera

Image Sensor5 MP CMOS image sensor
Signal SystemPAL/NTSC
Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Resolution2560 (H) × 1944 (V)
Min. illuminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Lens2.8 mm, 3.6 mm, 6 mm fixed focal lens
Horizontal Field of View85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)
Lens MountM12
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355°

AGCSupport
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceATW/MWB
BLC (Backlight Compensation)Yes
LanguageEnglish, Chinese
FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR

Interface

Video Output1 HD analog output

General

Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply12 VDC ±25%, PoC.at
Power ConsumptionMax. 5.4 W
Protection LevelIP67, IK10
MaterialMetal
IR RangeUp to 20 m
CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
DimensionsØ 111 mm × 82.4 mm (Ø 4.4" × 3.2")
WeightApprox. 505 g (1.11 lb.)
