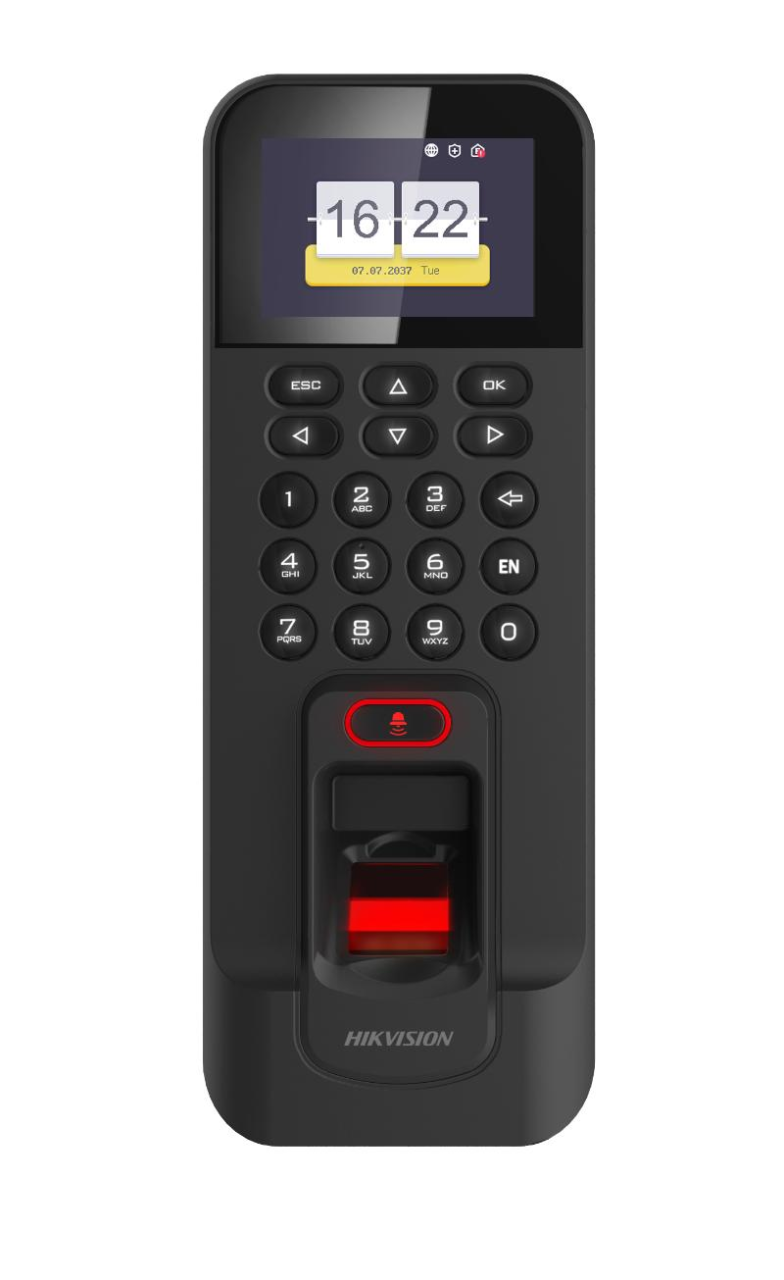

K1T804 Value Series Fingerprint Access Terminal

  • Standalone access control fingerprint terminal
  • LCD display screen
  • 3,000 fingerprints and 100,000 events storage
  • Communication via TCP/TP and Wi-Fi
  • RS-485, wiegand interface
  • EHome for public network communication
  • Alarm input and output interface
  • Multiple time attendance status

Specification

  • General
  • Communication InterfaceTCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34)
  • Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
  • Power Supply12 VDC/2 A
  • Audio1 Buzzer and 1 Loudspeaker
  • LED IndicatorPower/Status (Red/Green)
  • LCD Screen2.4-inch (320 × 240 LCD-TFT Display Screen)
  • Fingerprint CapacityUp to 3000 Fingerprints; Up to 10 Fingerprints for Each Person
  • StorageUp to 3000 Valid Cards;Up to 100,000 Event Records; Up to 150,000 Attendance Records
  • Card Reading ModeNot Support
  • Input InterfaceExit Button × 1, Door Sensor × 1 and Alarm Input × 1
  • Output InterfaceRelay (Lock Output) × 1, and Alarm Output × 1
  • Operating SystemLinux
  • Fingerprint Comparing Mode1:1 and 1:N, N=3000
  • Card Reading Response Duration< 1 s
  • Fingerprint Authentication Duration< 1 s
  • FAR(False Accept Rate)≤ 0.001 %
  • FRR (False Rejection Rate)≤ 0.01 %
  • Fingerprint RecognizerOptical Fingerprint Recognizer Module
  • External Card ReaderStandard Wiegand26/34
  • Card Reading DistanceNot Support
  • KeyboardKeyboard (Back Light)
  • Reset Key× 1
  • Wi-FiSupport
  • Wiegand InterfaceOutput: Wiegand 26/34;Input: Wiegand 26/34
  • Transmission RateTCP/IP: 10/100Mbps, Self-adaptive;RS485: 19200 bps-N-8-1
  • USBUSB 2.0; Type A
