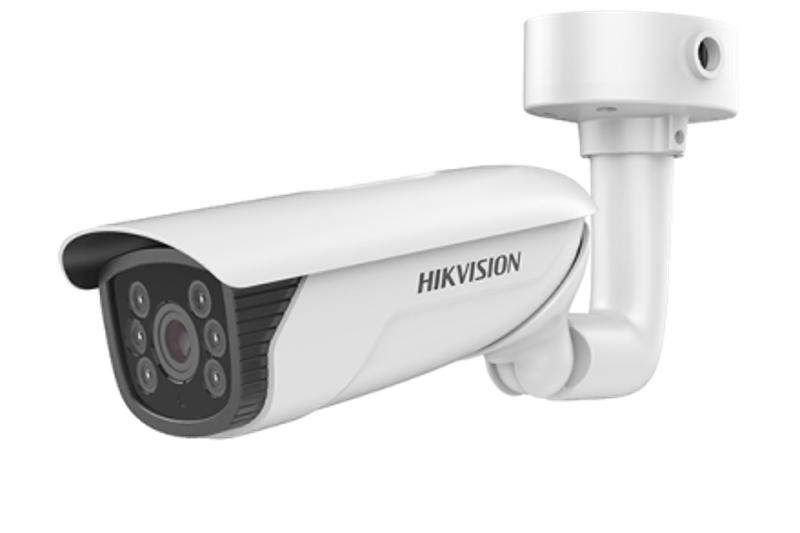

2MP DarkFighter Lite ANPR Moto Varifocal Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • Clear imaging even against strong back light due to 120 dB true WDR technology
  • License plate recognition
  • Water and dust resistant and vandal proof (IP66 and IK10)

View Less
View more
Thông số sản phẩm
Sales Inquiry
DS-2CD4626FWD-IZ(H)(S)/P
Thông số sản phẩm

Specification

  • Camera
  • Image Sensor1/1.8'' Progressive Scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0027 Lux @ (F1.4, AGC ON), 0 Lux with IR
  • Shutter Speed1 s – 1/100,000 s, supports slow shutter
  • Digital Noise Reduction3D DNR
  • WDR120dB
  • Day & NightIR cut filter with auto switch
  • Lens2.8 mm to 12 mm, F1.4, horizontal field of view: 92° to 32°
  • Auto-IrisDC drive
  • Audio
  • Audio Sampling Rate16kHz/32kHz/44.1kHz/48 kHz
  • Environment Noise FilterSupport
  • Audio I/OSupport
  • Image
  • Image EnhancementBLC /3D DNR/Defog/EIS
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Target CroppingSupport
  • Day/Night SwitchAuto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • ROI (Region of Interest)Support 4 fixed region for each stream, and dynamic tracking
  • Third Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution1920 × 1080
  • Main StreamMax. Frame Rate50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-streamMax. Frame Rate50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Network
  • Network StorageSupport microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
  • Alarm TriggerRoad traffic, motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • GeneralOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
  • StandardONVIF (PROFILE S, PROFILE G), ISAPI
  • Interface
  • Communication Interface1 RJ45 10M/100M Ethernet port, 1 RS-485 interface
  • On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 G
  • Reset ButtonYes
  • Video Out1Vp-p composite output (75 Ω/BNC)
  • Audio (-S model)1 audio input(line in/mic in), 1 audio output
  • Alarm (-S model)1 input, 1 output
  • Compression Standard
  • Audio Compression(-S)G.711/G.722.1/G.726/MP2L2
  • Audio Bit Rate(-S)64Kbps (G.711) /16Kbps (G.722.1) /16Kbps (G.726) /32-160Kbps (MP2L2)
  • H.264+Support
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.264/MPEG4 Sub stream: H.264/MPEG4/MJPEG Third stream: H.264/MPEG4/MJPEG
  • Video Bitrate32 Kbps – 16 Mbps
  • General
  • Power Supply24 VAC ± 10%, terminal block PoE (802.3at, class 4)
  • Power Consumption and Current-IZ/P: 24 VAC, 0.98 A, max.23.5 W; PoE (802.3at), 0.4 A to 0.5 A, max.23.5 W -IZHS/P: 24 VAC, 1.04 A, max.25 W; PoE (802.3at), 0.5 A to 0.6 A, max.25 W
  • DimensionsCamera: 158 × 338 × 560 mm (6.22″ × 13.31″ × 22.05″) Package: 578 × 335 ×140 mm (22.76″ × 13.12″ × 5.51″)
  • Weight7500 g (16.5 lb.)
  • Operating Conditions-IZ/P: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) -IZHS/P: -40 °C to +60 °C (-40 °F to +140°F), Humidity 95% or less (non-condensing)
  • Ingress Protection levelIK10
  • Impact ProtectionIP66
  • Heater-IZHS/P: support
  • IR RangeUp to 50 m IR range, 850 nm IR wavelength
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/1.8'' Progressive Scan CMOS
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0027 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Speed
1 s – 1/100,000 s, supports slow shutter
Digital Noise Reduction
3D DNR
WDR
120dB
Day & Night
IR cut filter with auto switch
Lens
2.8 mm to 12 mm, F1.4, horizontal field of view: 92° to 32°
Auto-Iris
DC drive
Audio
Audio Sampling Rate
16kHz/32kHz/44.1kHz/48 kHz
Environment Noise Filter
Support
Audio I/O
Support
Image Enhancement
BLC /3D DNR/Defog/EIS
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Target Cropping
Support
Day/Night Switch
Auto/Schedule/Triggered by Alarm In
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
ROI (Region of Interest)
Support 4 fixed region for each stream, and dynamic tracking
Third Stream Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Max. Resolution
1920 × 1080
Main StreamMax. Frame Rate
50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-streamMax. Frame Rate
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Network
Network Storage
Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Alarm Trigger
Road traffic, motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
General
One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Standard
ONVIF (PROFILE S, PROFILE G), ISAPI
Interface
Communication Interface
1 RJ45 10M/100M Ethernet port, 1 RS-485 interface
On-board Storage
Built-in microSD/SDHC/SDXC slot, up to 128 G
Reset Button
Yes
Video Out
1Vp-p composite output (75 Ω/BNC)
Audio (-S model)
1 audio input(line in/mic in), 1 audio output
Alarm (-S model)
1 input, 1 output
Compression Standard
Audio Compression(-S)
G.711/G.722.1/G.726/MP2L2
Audio Bit Rate(-S)
64Kbps (G.711) /16Kbps (G.722.1) /16Kbps (G.726) /32-160Kbps (MP2L2)
H.264+
Support
H.264 Type
Baseline Profile/Main Profile/High Profile
Video Compression
Main stream: H.264/MPEG4 Sub stream: H.264/MPEG4/MJPEG Third stream: H.264/MPEG4/MJPEG
Video Bitrate
32 Kbps – 16 Mbps
General
Power Supply
24 VAC ± 10%, terminal block PoE (802.3at, class 4)
Power Consumption and Current
-IZ/P: 24 VAC, 0.98 A, max.23.5 W; PoE (802.3at), 0.4 A to 0.5 A, max.23.5 W -IZHS/P: 24 VAC, 1.04 A, max.25 W; PoE (802.3at), 0.5 A to 0.6 A, max.25 W
Dimensions
Camera: 158 × 338 × 560 mm (6.22″ × 13.31″ × 22.05″) Package: 578 × 335 ×140 mm (22.76″ × 13.12″ × 5.51″)
Weight
7500 g (16.5 lb.)
Operating Conditions
-IZ/P: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) -IZHS/P: -40 °C to +60 °C (-40 °F to +140°F), Humidity 95% or less (non-condensing)
Ingress Protection level
IK10
Impact Protection
IP66
Heater
-IZHS/P: support
IR Range
Up to 50 m IR range, 850 nm IR wavelength
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/1.8'' Progressive Scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0027 Lux @ (F1.4, AGC ON), 0 Lux with IR
  • Shutter Speed1 s – 1/100,000 s, supports slow shutter
  • Digital Noise Reduction3D DNR
  • WDR120dB
  • Day & NightIR cut filter with auto switch
  • Lens2.8 mm to 12 mm, F1.4, horizontal field of view: 92° to 32°
  • Auto-IrisDC drive
Audio
  • Audio Sampling Rate16kHz/32kHz/44.1kHz/48 kHz
  • Environment Noise FilterSupport
  • Audio I/OSupport
  • Image EnhancementBLC /3D DNR/Defog/EIS
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Target CroppingSupport
  • Day/Night SwitchAuto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • ROI (Region of Interest)Support 4 fixed region for each stream, and dynamic tracking
  • Third Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution1920 × 1080
  • Main StreamMax. Frame Rate50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-streamMax. Frame Rate50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Network
  • Network StorageSupport microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
  • Alarm TriggerRoad traffic, motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • GeneralOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
  • StandardONVIF (PROFILE S, PROFILE G), ISAPI
Interface
  • Communication Interface1 RJ45 10M/100M Ethernet port, 1 RS-485 interface
  • On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 G
  • Reset ButtonYes
  • Video Out1Vp-p composite output (75 Ω/BNC)
  • Audio (-S model)1 audio input(line in/mic in), 1 audio output
  • Alarm (-S model)1 input, 1 output
Compression Standard
  • Audio Compression(-S)G.711/G.722.1/G.726/MP2L2
  • Audio Bit Rate(-S)64Kbps (G.711) /16Kbps (G.722.1) /16Kbps (G.726) /32-160Kbps (MP2L2)
  • H.264+Support
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.264/MPEG4 Sub stream: H.264/MPEG4/MJPEG Third stream: H.264/MPEG4/MJPEG
  • Video Bitrate32 Kbps – 16 Mbps
General
  • Power Supply24 VAC ± 10%, terminal block PoE (802.3at, class 4)
  • Power Consumption and Current-IZ/P: 24 VAC, 0.98 A, max.23.5 W; PoE (802.3at), 0.4 A to 0.5 A, max.23.5 W -IZHS/P: 24 VAC, 1.04 A, max.25 W; PoE (802.3at), 0.5 A to 0.6 A, max.25 W
  • DimensionsCamera: 158 × 338 × 560 mm (6.22″ × 13.31″ × 22.05″) Package: 578 × 335 ×140 mm (22.76″ × 13.12″ × 5.51″)
  • Weight7500 g (16.5 lb.)
  • Operating Conditions-IZ/P: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) -IZHS/P: -40 °C to +60 °C (-40 °F to +140°F), Humidity 95% or less (non-condensing)
  • Ingress Protection levelIK10
  • Impact ProtectionIP66
  • Heater-IZHS/P: support
  • IR RangeUp to 50 m IR range, 850 nm IR wavelength
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
