Built-in AVR
Super fast charging
Wide input voltage range
Overload protection
Short circuit protection
Surge protection
USB port for remote control
LCD display

View Less

Thông số sản phẩm

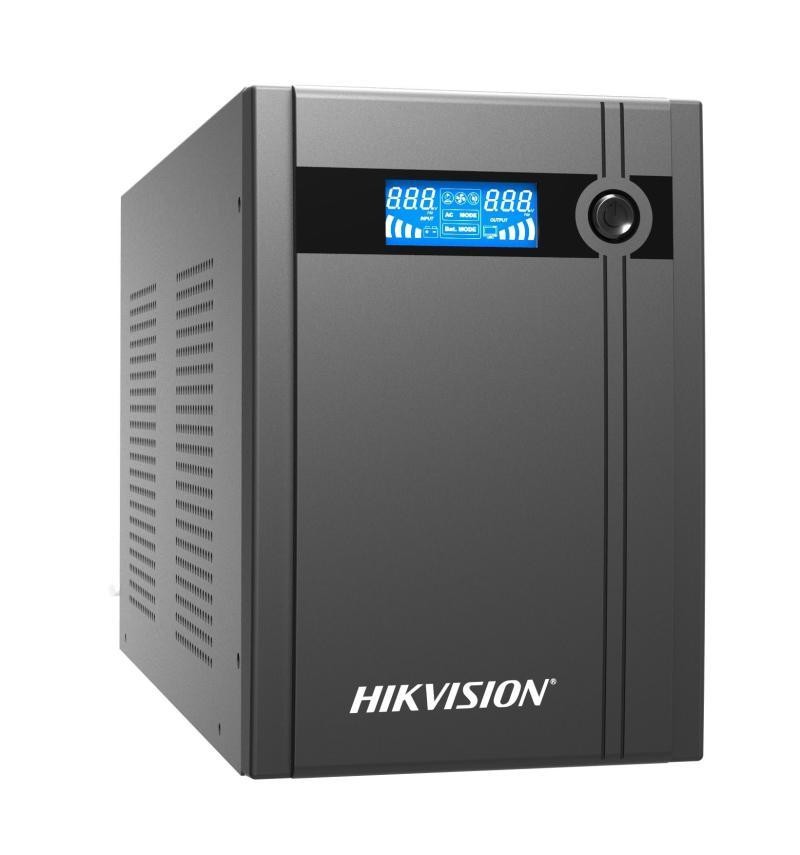

DS-UPS3000

Specification
Resources
Accessories

Thông số sản phẩm

Power
UPS Capacity 3000 VA / 1800 W

Input
Input Voltage Range 140 VAC to 290 VAC
Input Frequency50/60 Hz self-adaptive
Plug TypeAU TYPE I;TYPE H;Type B (NEMA 5-15);TYPE L (10A);UK TYPE G;Schuko

Output
Output Voltage Range210 VAC to 235 VAC
Output Frequency50/60 Hz ± 0.5 Hz self-adaptive
Transfer Time≤ 10 ms
WaveformPWM
Outlet TypeAU TYPE I;TYPE H;Type B (NEMA 5-15);Universal;TYPE L (10/16A)
Outlet Number6;4

Battery
Battery Type12 V/9 Ah *4 pcs, lead-acid battery
Recharge Time6-8 hours recover to 90% capacity
Typical Backup TimeRun time at 100w: 150 min Run time at 600w: 15 min Run time at 900w: 6 min

Interface
Communicate PortsUSB

Protection
Full ProtectionSurge protection, Overload protection, Discharge protection, Short circuit protection

Indicator
DisplayLCD Screen Input Voltage, Output Voltage, Battery capacity, load level
AlarmCharging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding

General
Operating Temperature0 °C to 40 °C (32 °F to 104 °F）
Operating Humidity30% to 90% (non-condensing)
Dimension412 mm × 145 mm × 210 mm (16.22" × 5.71" × 8.27")
WeightApprox. 18.5 kg (40.8 lb)

Power

UPS Capacity

3000 VA / 1800 W

Input

Input Voltage Range

140 VAC to 290 VAC

Input Frequency

50/60 Hz self-adaptive

Plug Type

AU TYPE I;TYPE H;Type B (NEMA 5-15);TYPE L (10A);UK TYPE G;Schuko

Output

Output Voltage Range

210 VAC to 235 VAC

Output Frequency

50/60 Hz ± 0.5 Hz self-adaptive

Transfer Time

≤ 10 ms

Waveform

PWM

Outlet Type

AU TYPE I;TYPE H;Type B (NEMA 5-15);Universal;TYPE L (10/16A)

Outlet Number

6;4

Battery

Battery Type

12 V/9 Ah *4 pcs, lead-acid battery

Recharge Time

6-8 hours recover to 90% capacity

Typical Backup Time

Run time at 100w: 150 min Run time at 600w: 15 min Run time at 900w: 6 min

Interface

Communicate Ports

USB

Protection

Full Protection

Surge protection, Overload protection, Discharge protection, Short circuit protection

Indicator

Display

LCD Screen Input Voltage, Output Voltage, Battery capacity, load level

Alarm

Charging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding

General

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F）

Operating Humidity

30% to 90% (non-condensing)

Dimension

412 mm × 145 mm × 210 mm (16.22" × 5.71" × 8.27")

Weight

Approx. 18.5 kg (40.8 lb)
