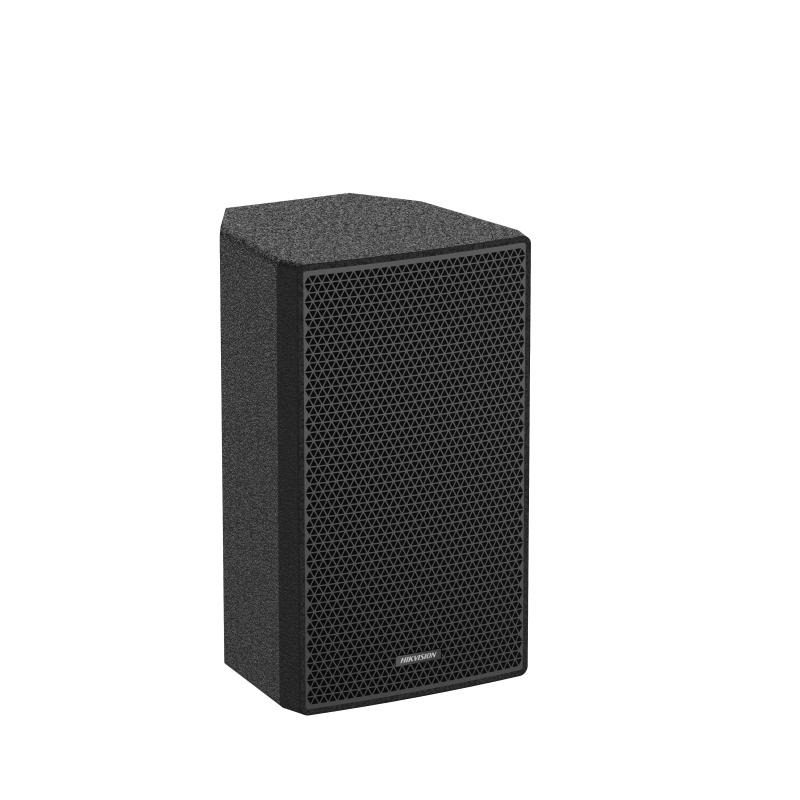

10-inch Full Range Speaker 300W

  • Woofer: 1x10" / Tweeter: 1x1.0"
  • 96.5 dB@ 2.83V/1 m Sensitivity
  • 120 dB (126 dB peak) Rated Maximum SPL
  • 75 Hz-20 kHz (-10 dB) bandwidth
  • 300W Rated Power
View Less
View more
Sales Inquiry
DS-QAPS1R30-10

Specification

  • Speaker
  • Impedance8 Ω
  • Rated Power300W
  • Sensitivity(1 m, 1 W)96.5 dB@ 2.83V/1 m
  • Max. Acoustic Pressure120 dB (126 dB peak)
  • Frequency Response75 Hz-20 kHz (-10 dB)
  • Speaker UnitWoofer: 1x10" / Tweeter: 1x1.0"
  • Coverage Angle80°x50°(HxV)
  • General
  • Material15 cl multi-layer solid wood plywood
  • DimensionH500mmxW305mmxD300mm
  • Approx. 12.8 kg (28 lb.)
  • ColorMatte black raindrop paint
  • Packing ListSpeaker*1/Product Manual*1/Certificate*1/Warranty Card*1
  • InstallationVertical hanging/horizontal hanging/bottom support
  • Application Temperature Range-30~+60°C，95% No condensation
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Speaker
Impedance
8 Ω
Rated Power
300W
Sensitivity(1 m, 1 W)
96.5 dB@ 2.83V/1 m
Max. Acoustic Pressure
120 dB (126 dB peak)
Frequency Response
75 Hz-20 kHz (-10 dB)
Speaker Unit
Woofer: 1x10" / Tweeter: 1x1.0"
Coverage Angle
80°x50°(HxV)
General
Material
15 cl multi-layer solid wood plywood
Dimension
H500mmxW305mmxD300mm
Approx. 12.8 kg (28 lb.)
Color
Matte black raindrop paint
Packing List
Speaker*1/Product Manual*1/Certificate*1/Warranty Card*1
Installation
Vertical hanging/horizontal hanging/bottom support
Application Temperature Range
-30~+60°C，95% No condensation
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Speaker
  • Speaker
  • Speaker
  • Speaker
  • Speaker
  • Speaker
  • Speaker
  • Speaker
General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
