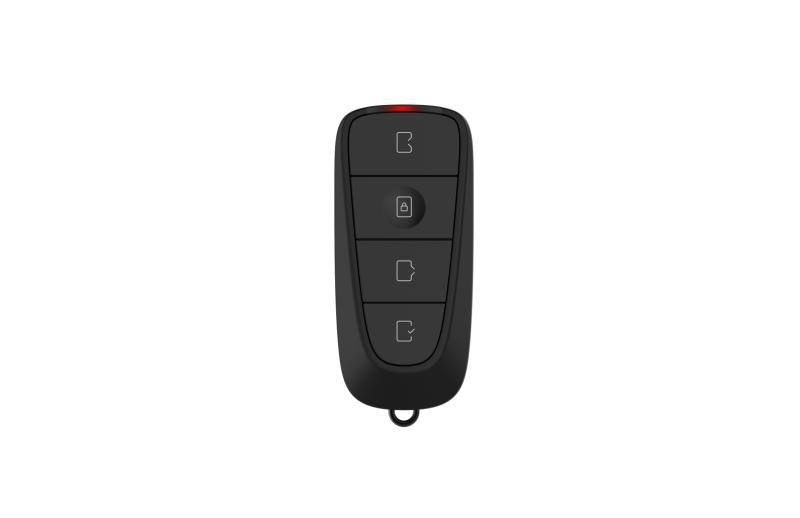

DS-K7R01-868

EOL

Turnstile Remote Controller

  • Supports one-to-one and one-to-many (Max. 6 lanes) communication pairing
  • Convenient to hang on the key chain, easy to use for security managers
  • Simple and convenient control and management for turnstiles
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K7R01-868
DS-K7R01-868
EOL
Data Sheet

Especificación

  • Sistema
  • MCBFMore than 0.5 million times for key press
  • Battery life≥ 4 month (100 times per day, 25 °C)
  • Communication distance50 m (Open area)
  • Autenticación
  • Communication frequency868 MHz
  • General
  • Método de fuente de alimentaciónBattery
  • Temperatura de trabajo -10 ℃ to 55 ℃ (14 °F to 131 °F)
  • Humedad de trabajo10% to 90% (No condensing)
  • Dimensiones80 mm × 36 mm × 20 mm (3.1" × 1.4" × 0.8")
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Sistema
MCBF
More than 0.5 million times for key press
Battery life
≥ 4 month (100 times per day, 25 °C)
Communication distance
50 m (Open area)
Autenticación
Communication frequency
868 MHz
General
Método de fuente de alimentación
Battery
Temperatura de trabajo
-10 ℃ to 55 ℃ (14 °F to 131 °F)
Humedad de trabajo
10% to 90% (No condensing)
Dimensiones
80 mm × 36 mm × 20 mm (3.1" × 1.4" × 0.8")
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Especificación
Sistema
  • MCBFMore than 0.5 million times for key press
  • Battery life≥ 4 month (100 times per day, 25 °C)
  • Communication distance50 m (Open area)
Autenticación
  • Communication frequency868 MHz
General
  • Método de fuente de alimentaciónBattery
  • Temperatura de trabajo -10 ℃ to 55 ℃ (14 °F to 131 °F)
  • Humedad de trabajo10% to 90% (No condensing)
  • Dimensiones80 mm × 36 mm × 20 mm (3.1" × 1.4" × 0.8")
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.0.0_200723
Aplicado a:
DS-K7R01-868
