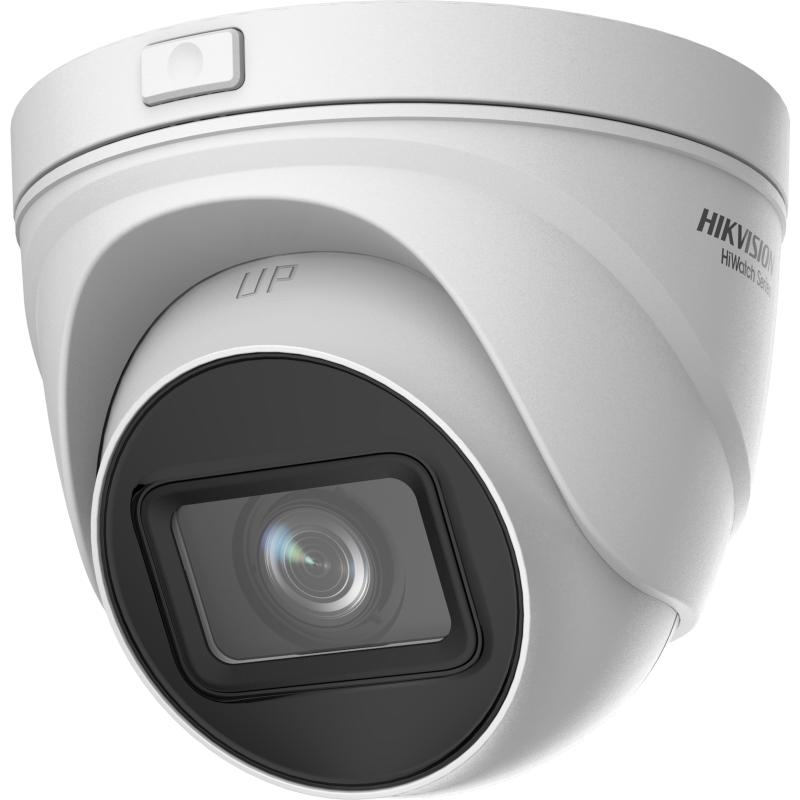

2 MP MD 2.0 Varifocal Turret Network Camera

  • High quality imaging with 2 MP resolution
  • Support Human and Vehicle Detection
  • 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
  • Up to 256 GB memory card slot for storage
  • Water and dust resistant (IP67)
  • EXIR 2.0: advanced infrared technology with long IR range
  • Clear imaging even with strong back lighting due to DWDR technology
  • Efficient H.265+ compression technology

View Less
View more
Data Sheet
Sales Inquiry

Available models:

HWI-T620HA-Z(2.8-12mm)(HiWatchSTD)
HWI-T620HA-Z
Data Sheet

Especificación

  • Cámara
  • Sensor de imagen 1/2.9" Progressive Scan CMOS
  • Max. Resolución 1920 × 1080
  • Iluminación mínima Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Tiempo de obturación 1/3 s to 1/100,000 s
  • Día y Noche IR cut filter
  • Ajuste de ángulo Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
  • Lente
  • Lente Varifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV 2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°
  • Montura del lente Ø14
  • Iris Type Fixed
  • Apertura F1.6
  • Iluminador
  • Tipo de luz suplementaria IR
  • Rango de luz suplementaria Up to 30 m
  • Luz de suplemento inteligente Yes
  • IR Wavelength 850 nm
  • Vídeo
  • Main stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Compresión de video Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
  • Vídeo bitrate 32 Kbps to 8 Mbps
  • Tipo H.264 Baseline Profile,Main Profile,High Profile
  • Tipo H.265 Main Profile
  • Región de interés (ROI) 1 fixed region(s) for main stream
  • Red
  • Protocolos TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
  • Vista en vivo simultánea Up to 6 channels
  • API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
  • Seguridad Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user
  • Cliente iVMS-4200,Hik-Connect
  • Navegador web Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
  • Imagen
  • Configuración de imagen Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Interruptor día/noche Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR) Digital WDR
  • Mejora de la imagen BLC,HLC,3D DNR
  • Interfaz
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Reset Key Yes
  • Evento
  • Evento Básico Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Linkage Upload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture
  • General
  • alimentación 12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W
  • Dimensión Ø129.4 mm × 116.4 mm (Ø5.1" × 4.6")
  • Dimensión del paquete 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
  • Approx. 570 g (1.3 lb.)
  • Con peso del paquete Approx. 850 g (1.9 lb.)
  • Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Idioma English, Ukrainian
  • Función general Heartbeat,anti-banding,mirror,password protection,privacy mask, watermark
  • Certificaciones
  • EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
  • Seguridad CE-LVD: EN 62368-1: 2014/A11: 2017
  • Ambiente CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protección IP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Cámara
Sensor de imagen
1/2.9" Progressive Scan CMOS
Max. Resolución
1920 × 1080
Iluminación mínima
Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Tiempo de obturación
1/3 s to 1/100,000 s
Día y Noche
IR cut filter
Ajuste de ángulo
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lente
Lente
Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV
2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°
Montura del lente
Ø14
Iris Type
Fixed
Apertura
F1.6
Iluminador
Tipo de luz suplementaria
IR
Rango de luz suplementaria
Up to 30 m
Luz de suplemento inteligente
Yes
IR Wavelength
850 nm
Vídeo
Main stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-stream
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Compresión de video
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate
32 Kbps to 8 Mbps
Tipo H.264
Baseline Profile,Main Profile,High Profile
Tipo H.265
Main Profile
Región de interés (ROI)
1 fixed region(s) for main stream
Red
Protocolos
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Vista en vivo simultánea
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
Seguridad
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Usuario/operador
Up to 32 users 3 user levels: administrator, operator, and user
Cliente
iVMS-4200,Hik-Connect
Navegador web
Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
Imagen
Configuración de imagen
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Interruptor día/noche
Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)
Digital WDR
Mejora de la imagen
BLC,HLC,3D DNR
Interfaz
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Reset Key
Yes
Evento
Evento Básico
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Upload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture
General
alimentación
12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W
Dimensión
Ø129.4 mm × 116.4 mm (Ø5.1" × 4.6")
Dimensión del paquete
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Approx. 570 g (1.3 lb.)
Con peso del paquete
Approx. 850 g (1.9 lb.)
Condiciones de almacenaje
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Idioma
English, Ukrainian
Función general
Heartbeat,anti-banding,mirror,password protection,privacy mask, watermark
Certificaciones
EMC
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
Seguridad
CE-LVD: EN 62368-1: 2014/A11: 2017
Ambiente
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protección
IP67: IEC 60529-2013
