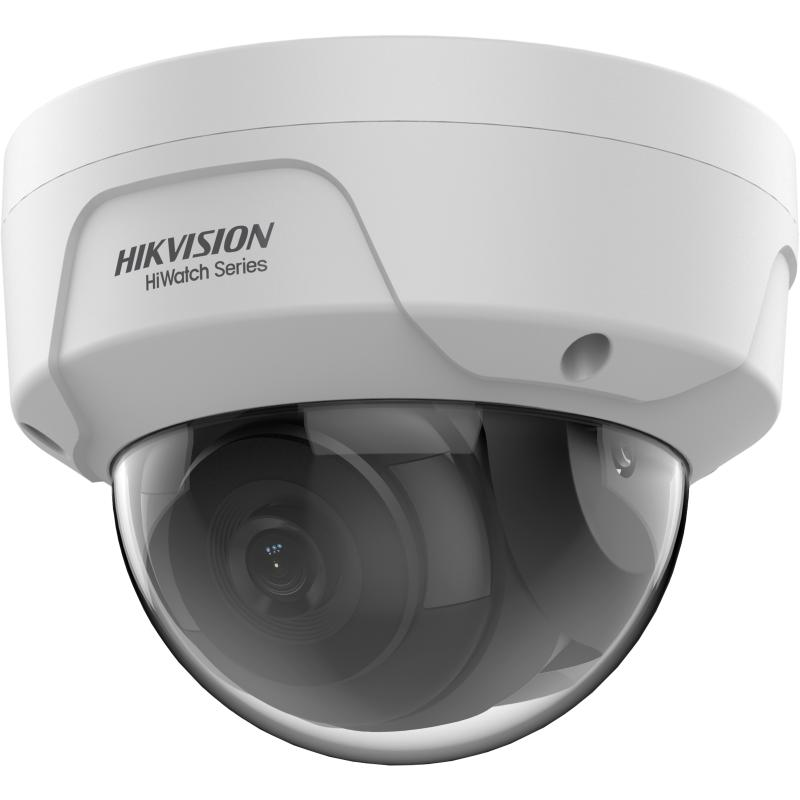

4K Fixed Dome Network Camera

High quality imaging with 8 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67) and vandal resistant (IK10)
3D DNR technology delivers clean and sharp images
Easy installation with Power over Ethernet (PoE) technology

View Less

Data Sheet

Available models:

HWI-D180H(2.8mm)(C)(HiWatchSTD)

HWI-D180H(4mm)(C)(HiWatchSTD)

HWI-D180H

Especificación
Resources
Accesorios

Data Sheet

Cámara
Sensor de imagen1/2.8" Progressive Scan CMOS
Max. Resolución3840 × 2160
Iluminación mínimaColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Tiempo de obturación1/3 s to 1/100,000 s
Día y NocheIR cut filter
Ajuste de ánguloPan: 0° to 355°, tilt: 0° to 75°

Lente
LenteFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127° 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°
Montura del lenteM12
Iris TypeFixed
AperturaF2.0

DORI
DORI2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m 4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m

Iluminador
Tipo de luz suplementariaIR
Rango de luz suplementariaUp to 30 m
Luz de suplemento inteligenteYes
IR Wavelength850 nm

Vídeo
Main stream50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Bit Rate ControlCBR/VBR
Región de interés (ROI)1 fixed region for main stream

Red
SeguridadPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)
Vista en vivo simultáneaUp to 6 channels
APIOpen Network Video Interface (Profile S), ISAPI, SDK
ProtocolosTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
Usuario/operadorUp to 32 users 3 levels: Administrator, Operator and User
ClienteiVMS-4200, Hik-Connect
Navegador webPlug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+

Imagen
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Interruptor día/nocheDay, Night, Auto, Schedule
Mejora de la imagenBLC, HLC, 3D DNR
Configuración de imagenMirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Máscara de privacidad4 regions of privacy mask

Interfaz
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Evento
Evento BásicoMotion detection , video tampering alarm, exception
LinkageNotify surveillance center, trigger capture

General
alimentación12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
MaterialMetal & Plastic
DimensiónØ110.8 mm × 84.7 mm (4.4" × 3.3")
Dimensión del paquete134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Approx. 520 g (1.1 lb.)
Con peso del paqueteApprox. 720 g (1.6 lb.)
Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
IdiomaEnglish, Ukrainian
Función generalAnti-flicker, heartbeat, password protection, password reset via email

Certificaciones
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014)
SeguridadCE-LVD (EN 62368-1:2014/A11:2017)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtecciónIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Cámara

Sensor de imagen

1/2.8" Progressive Scan CMOS

Max. Resolución

3840 × 2160

Iluminación mínima

Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR

Tiempo de obturación

1/3 s to 1/100,000 s

Día y Noche

IR cut filter

Ajuste de ángulo

Pan: 0° to 355°, tilt: 0° to 75°

Lente

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127° 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°

Montura del lente

M12

Iris Type

Fixed

Apertura

F2.0

DORI

2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m 4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m

Iluminador

Tipo de luz suplementaria

Rango de luz suplementaria

Up to 30 m

Luz de suplemento inteligente

Yes

IR Wavelength

850 nm

Vídeo

Main stream

50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Compresión de video

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Bit Rate Control

CBR/VBR

Región de interés (ROI)

1 fixed region for main stream

Red

Seguridad

Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)

Vista en vivo simultánea

Up to 6 channels

API

Open Network Video Interface (Profile S), ISAPI, SDK

Protocolos

TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP

Usuario/operador

Up to 32 users 3 levels: Administrator, Operator and User

Cliente

iVMS-4200, Hik-Connect

Navegador web

Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+

Imagen

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Interruptor día/noche

Day, Night, Auto, Schedule

Mejora de la imagen

BLC, HLC, 3D DNR

Configuración de imagen

Mirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Máscara de privacidad

4 regions of privacy mask

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Evento

Evento Básico

Motion detection , video tampering alarm, exception

Linkage

Notify surveillance center, trigger capture

General

alimentación

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Material

Metal & Plastic

Dimensión

Ø110.8 mm × 84.7 mm (4.4" × 3.3")

Dimensión del paquete

134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")

Approx. 520 g (1.1 lb.)

Con peso del paquete

Approx. 720 g (1.6 lb.)

Condiciones de almacenaje

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Idioma

English, Ukrainian

Función general

Anti-flicker, heartbeat, password protection, password reset via email

Certificaciones

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014)

Seguridad

CE-LVD (EN 62368-1:2014/A11:2017)

Ambiente

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protección

IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
