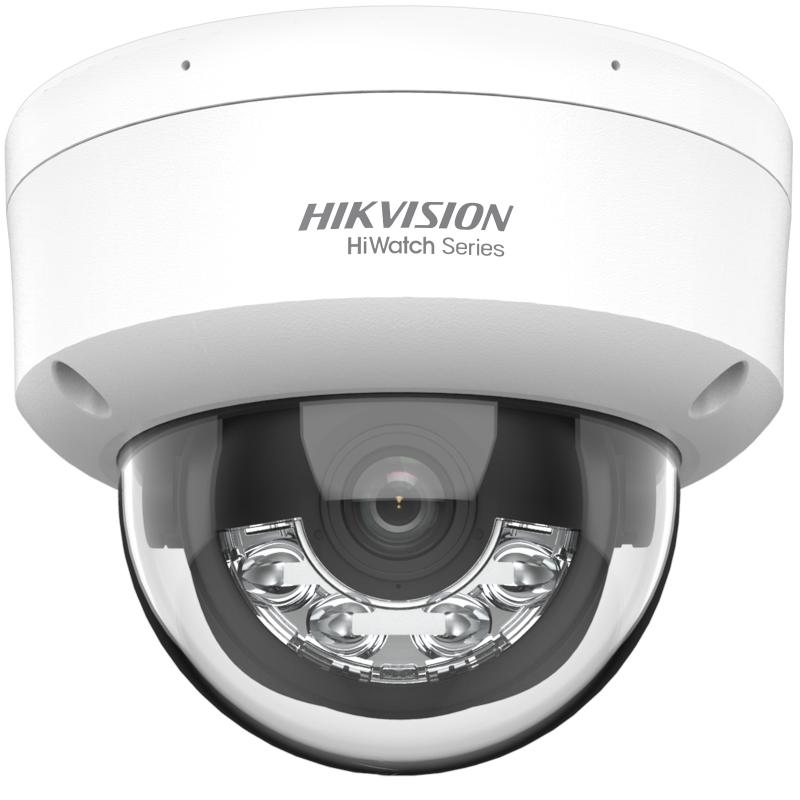

4 MP Smart Hybrid Light Fixed Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Support Human Detection
  • Efficient H.265+ compression technology
  • Smart Hybrid Light: advanced technology with long range coverage
  • Built-in microphone for real-time audio security
  • -F model supports on-board storage up to 512 GB (SD card slot)

View Less
View more
Sales Inquiry

Available models:

HWI-D140HA-LUC(2.8mm)(HiWatchSTD)
HWI-D140HA-LUC(4mm)(HiWatchSTD)
HWI-D140HA-LU(F)C

Especificación

  • Cámara
  • Sensor de imagen 1/2.8" Progressive Scan CMOS
  • Max. Resolución 2560 × 1440
  • Iluminación mínima Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
  • Tiempo de obturación 1/3 s to 1/100,000 s
  • Día y Noche IR cut filter
  • Ajuste de ángulo Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
  • Lente
  • Lente Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123° 4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°
  • Montura del lente M12
  • Iris Type Fixed
  • Apertura F2.2
  • Depth of Field 2.8 mm: 0.9 m to ∞ 4 mm: 1.1 m to ∞
  • DORI
  • DORI 2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m 4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m
  • Iluminador
  • Tipo de luz suplementaria IR,White Light
  • Rango de luz suplementaria Up to 20 m
  • Luz de suplemento inteligente Yes
  • IR Wavelength 850 nm
  • Vídeo
  • Main stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
  • Sub-stream 50 Hz: 25 fps (1280 × 720，640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720，640 × 480, 640 × 360)
  • Compresión de video Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
  • Vídeo bitrate 32 Kbps to 8 Mbps
  • Tipo H.264 Baseline Profile,Main Profile,High Profile
  • Tipo H.265 Main Profile
  • Bit Rate Control CBR,VBR
  • Región de interés (ROI) 1 fixed region for main stream
  • Audio
  • Tipo de audio Mono sound
  • Velocidad de bits de audio 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
  • Filtro de ruido ambiental Yes
  • Frecuencia de muestreo de audio 8 kHz/16 kHz
  • Compresión de audio G.711ulaw/AAC-LC
  • Red
  • Protocolos TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
  • API ONVIF (Profile S, Profile T, Profile G (only -F model supports Profile G)),ISAPI,SDK
  • Seguridad Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Vista en vivo simultánea Up to 6 channels
  • Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user
  • Cliente iVMS-4200,HiLookVision
  • Navegador web Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11
  • Imagen
  • Wide Dynamic Range (WDR) Digital WDR
  • SNR ≥ 52 dB
  • Interruptor día/noche Day,Night,Auto,Schedule
  • Mejora de la imagen BLC,HLC,3D DNR
  • Configuración de imagen Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Máscara de privacidad 1 programmable polygon privacy mask
  • Interfaz
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage -F model: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Micrófono incorporado Yes,1 built-in microphone
  • Reset Key -F model supports
  • Evento
  • Evento Básico Motion detection (support alarm triggering by specified target type (human)), exception
  • Linkage Upload to memory card (-F model supports), send email, notify surveillance center, trigger recording (-F model supports), trigger capture
  • General
  • alimentación 12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W
  • Material Plastic
  • Dimensión Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
  • Dimensión del paquete 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Approx. 570 g (1.2 lb.)
  • Con peso del paquete Approx. 780 g (1.8 lb.)
  • Condiciones de almacenaje -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • Idioma English, Ukrainian
  • Función general Heartbeat,anti-banding,mirror,password protection,password reset via email
  • Certificaciones
  • EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, KC: KN32: 2015, KN35: 2015
  • Seguridad CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • Ambiente CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Cámara
Sensor de imagen
1/2.8" Progressive Scan CMOS
Max. Resolución
2560 × 1440
Iluminación mínima
Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Tiempo de obturación
1/3 s to 1/100,000 s
Día y Noche
IR cut filter
Ajuste de ángulo
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lente
Lente
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123° 4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°
Montura del lente
M12
Iris Type
Fixed
Apertura
F2.2
Depth of Field
2.8 mm: 0.9 m to ∞ 4 mm: 1.1 m to ∞
DORI
DORI
2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m 4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m
Iluminador
Tipo de luz suplementaria
IR,White Light
Rango de luz suplementaria
Up to 20 m
Luz de suplemento inteligente
Yes
IR Wavelength
850 nm
Vídeo
Main stream
50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
Sub-stream
50 Hz: 25 fps (1280 × 720，640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720，640 × 480, 640 × 360)
Compresión de video
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate
32 Kbps to 8 Mbps
Tipo H.264
Baseline Profile,Main Profile,High Profile
Tipo H.265
Main Profile
Bit Rate Control
CBR,VBR
Región de interés (ROI)
1 fixed region for main stream
Audio
Tipo de audio
Mono sound
Velocidad de bits de audio
64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
Filtro de ruido ambiental
Yes
Frecuencia de muestreo de audio
8 kHz/16 kHz
Compresión de audio
G.711ulaw/AAC-LC
Red
Protocolos
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
API
ONVIF (Profile S, Profile T, Profile G (only -F model supports Profile G)),ISAPI,SDK
Seguridad
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Vista en vivo simultánea
Up to 6 channels
Usuario/operador
Up to 32 users 3 user levels: administrator, operator, and user
Cliente
iVMS-4200,HiLookVision
Navegador web
Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11
Imagen
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Interruptor día/noche
Day,Night,Auto,Schedule
Mejora de la imagen
BLC,HLC,3D DNR
Configuración de imagen
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Máscara de privacidad
1 programmable polygon privacy mask
Interfaz
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
-F model: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Micrófono incorporado
Yes,1 built-in microphone
Reset Key
-F model supports
Evento
Evento Básico
Motion detection (support alarm triggering by specified target type (human)), exception
Linkage
Upload to memory card (-F model supports), send email, notify surveillance center, trigger recording (-F model supports), trigger capture
General
alimentación
12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W
Material
Plastic
Dimensión
Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Dimensión del paquete
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Approx. 570 g (1.2 lb.)
Con peso del paquete
Approx. 780 g (1.8 lb.)
Condiciones de almacenaje
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Idioma
English, Ukrainian
Función general
Heartbeat,anti-banding,mirror,password protection,password reset via email
Certificaciones
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, KC: KN32: 2015, KN35: 2015
Seguridad
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Ambiente
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
