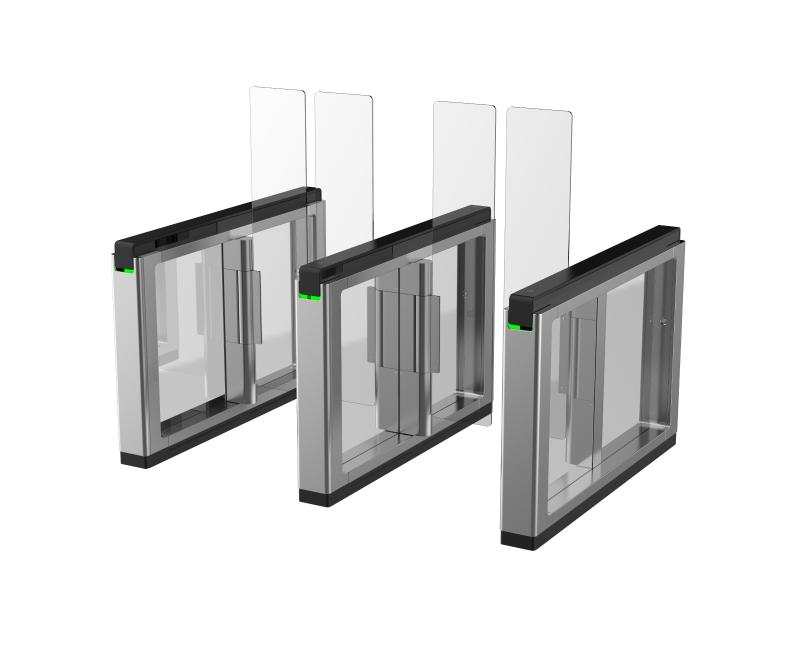

Ultra Swing Barriers

Built-in card reader and access controller.
The door wings will be locked or stop working when people are nipped.
Self-detection, Self-diagnostics, and automatic alarm.
Fire alarm passing: When the fire alarm is triggered, the barrier will be open automatically for emergency evacuation.
Audible and visual alarm will be triggered when detecting intrusion, tailgating, reverse passing, climbing over barrier, and overstay.
The barrier's material is high-strength tampered glass, sticked with film, which will not cause injury when the glass is broken.
TCP/IP network communication: The communication data is specially encrypted to relieve the concern of privacy leak.

View Less

Data Sheet

Available models:

DS-K3B802BX-L/MPg-Dg65H12

DS-K3B802BX-L/MPg-Dg90H12

DS-K3B802BX-M/MPg-Dg65H12

DS-K3B802BX-M/MPg-Dg65-90H12

DS-K3B802BX-M/MPg-Dg90H12

DS-K3B802BX-R/MPg-Dg65H12

DS-K3B802BX-R/MPg-Dg90H12

DS-K3B802BX-L/M

DS-K3B802BX-M/M

DS-K3B802BX-R/M

DS-K3B802BX ^NEW

Especificación
Resources
Accesorios

Data Sheet

Sistema
MotorServo motor
MCBF≥ 8 million times

Red
Protocolo de comunicaciónISAPI,ISUP5.0
Red cableada10/100Mbps self-adaptive Ethernet

Interfaz
Interfaz de red1
Lock control2
Botón de salida2
Salida de alarma2
TamperYES
RS-4854
RS-2322
Wiegand2
Fire alarm input1
Case input2

Hardware
Access controllerSupplied
SupercapacitorSupplied

Capacidad
Capacidad de huella digital5,000 (optional)
Capacidad de tarjetas1,000,000
Capacidad de eventos1,000,000

Función
Configuration via Web browserSupport

General
Throughput30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method
Detectores de luz IR24 pairs
Ancho de carril550 mm to 1100 mm (21.65" to 43.31")
Material de barreraTempered glass
Material del pedestalSUS304 stainless steel with the thickness of 2 mm (0.08")
alimentación100 to 240 VAC; 50 to 60 Hz
Consumo de energía70W (stand by)
Temperatura de trabajo-10 °C to 55 °C (14 °F to 131 °F)
Humedad de trabajo10% to 95% (No Condensing)
DimensionesWith packaging: 1688 mm × 348 mm × 1318 mm (66.5" × 13.7" × 51.9") Without packaging: 1500 mm × 160 mm × 1010 mm (59.1" × 6.3" × 39.8")
Not include door wings (Net) Left: 99.34 kg (219.00 lbs) Middle: 108.8 kg (239.86 lbs) Right: 102.8 kg kg (226.64 lbs) (Rough) Left: 147.8 kg (325.84 lbs) Middle: 157.26 kg (346.70 lbs) Right: 151.26 kg (333.47lbs)
CertificacionesCE/CB/RoHS/REACH/WEEE

Configuración
Ancho de carril650,900
Longitud del pedestal1500mm
Módulo de selecciónYES
Ancho de pedestal160mm
Distancia de la pared50mm
BaseYES
Material de barreraTempered glass
Entorno de aplicaciónIndoor
Modo de autenticaciónCard;Face
Tipo de tarjetaEM;M1
Ancho recomendado650
Modelo baseDS-K3B802X-BASE
Tipo de productoSwing barrier
Remote controller type433Mhz;868Mhz
Movement Protrusion Width65mm
Door wing height1.6m

Sistema

Motor

Servo motor

MCBF

≥ 8 million times

Red

Protocolo de comunicación

ISAPI,ISUP5.0

Red cableada

10/100Mbps self-adaptive Ethernet

Interfaz

Interfaz de red

Lock control

Botón de salida

Salida de alarma

Tamper

YES

RS-485

RS-232

Wiegand

Fire alarm input

Case input

Hardware

Access controller

Supplied

Supercapacitor

Supplied

Capacidad

Capacidad de huella digital

5,000 (optional)

Capacidad de tarjetas

1,000,000

Capacidad de eventos

1,000,000

Función

Configuration via Web browser

Support

General

Throughput

30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method

Detectores de luz IR

24 pairs

Ancho de carril

550 mm to 1100 mm (21.65" to 43.31")

Material de barrera

Tempered glass

Material del pedestal

SUS304 stainless steel with the thickness of 2 mm (0.08")

alimentación

100 to 240 VAC; 50 to 60 Hz

Consumo de energía

70W (stand by)

Temperatura de trabajo

-10 °C to 55 °C (14 °F to 131 °F)

Humedad de trabajo

10% to 95% (No Condensing)

Dimensiones

With packaging: 1688 mm × 348 mm × 1318 mm (66.5" × 13.7" × 51.9") Without packaging: 1500 mm × 160 mm × 1010 mm (59.1" × 6.3" × 39.8")

Not include door wings (Net) Left: 99.34 kg (219.00 lbs) Middle: 108.8 kg (239.86 lbs) Right: 102.8 kg kg (226.64 lbs) (Rough) Left: 147.8 kg (325.84 lbs) Middle: 157.26 kg (346.70 lbs) Right: 151.26 kg (333.47lbs)

Certificaciones

CE/CB/RoHS/REACH/WEEE

Configuración

Ancho de carril

650,900

Longitud del pedestal

1500mm

Módulo de selección

YES

Ancho de pedestal

160mm

Distancia de la pared

50mm

Base

YES

Material de barrera

Tempered glass

Entorno de aplicación

Indoor

Modo de autenticación

Card;Face

Tipo de tarjeta

EM;M1

Ancho recomendado

650

Modelo base

DS-K3B802X-BASE

Tipo de producto

Swing barrier

Remote controller type

433Mhz;868Mhz

Movement Protrusion Width

65mm

Door wing height

1.6m
