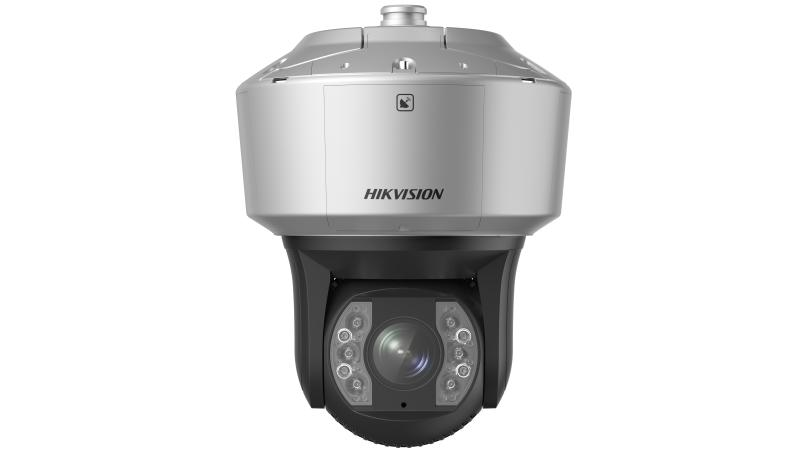

4 MP 40X DarkFighter Radar Network Speed Dome

Up to 2560 × 1440 @ 60 fps resolution
Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
40 × optical zoom, 16 × digital zoom
Up to 200 m IR distance, supporting Smart IR
Up to 100 m white light visual alarm, flashing and solid modes are available
140 dB WDR
Supports optical defog, 3D DNR, HLC, EIS
Supports vandal-proof alarm
Supports detecting radar events, including intrusion detection and line crossing detection
Supports video double check. The PTZ camera double checks the radar detected targets to decrease false alarms.

View Less

Data Sheet

Available models:

iDS-2SR8141IXS-AB(40X)(T2)

Especificación
Resources
Accesorios

Data Sheet

Radar Detection
Frecuencia de trabajo24.05 to 24.25 GHz
Distancia de detecciónhuman: 100 m; vehicle: 120 m
Ángulo de detección horizontal±45°
Ángulo de detección vertical±14°
Max. Objetivos detectables32
Precisión de medición de distancia±1 m
Precisión de medición de velocidad±0.07 m/s
Exactitud de medición de ángulo±1°
Evento de radarRadar events including line crossing detection and intrusion detection. Detected target is tracked and captured by PTZ camera channel. Video double checks radar detected targets to improve detection accuracy.

Cámara
Sensor de imagen1/1.8＂ progressive scan CMOS
Max. Resolución2560 × 1440
Iluminación mínimaColor: 0.002 Lux @ (F1.2, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Velocidad de obturación1/1 s to 1/30,000 s
Día y NocheICR
Zoom40 × optical,16 × digital
Obturador lentoyes

Lente
Longitud focal6.0 mm to 240 mm, 40 × Optical
FOVHorizontal field of view: 59.0° to 1.8° (wide-tele) Vertical field of view: 34.2° to 1.0° (wide-tele) Diagonal field of view: 67° to 2.0° (wide-tele)
Enfoquesemi-auto, manual, auto
AperturaF1.2
Velocidad del Zoomapprox. 4.8 s (optical, wide-tele)

Iluminador
Tipo de luz suplementariaIR
Rango de luz suplementariaUp to 200 m
Luz de suplemento inteligenteyes

PTZ
Rango de movimiento (pan)360°
Rango de movimiento (tilt)-20° to 90° (auto flip)
Velocidad de movimiento horizontal (pan)pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Velocidad de vertical (tilt)tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Proportional Panyes
Preajustes300
Congelación preestablecidayes
Escaneo de patrulla8 patrols
Patrón de escaneo4 pattern scans
Acción del parquepreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
Posicionamiento 3Dyes
Pantalla de estado de PTZyes
Tarea programadapreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Memoria de apagadoyes

Vídeo
Main stream50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 50fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Compresión de vídeoH.265, H.264, MJPEG
Vídeo bitrate32 Kbps to 16384 Kbps
Tipo H.264baseline profile, main profile, high profile
Tipo H.265main profile
Codificación de video escalable (SVC)yes
Región de interés (ROI)dynamic target tracking, main stream, sub-stream and third stream respectively support eight fixed areas

Audio
Compresión de audioG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Velocidad de bits de audio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)

Red
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Vista en vivo simultánea20
APIISUP
Usuario/operador32
SeguridadAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Almacenamiento en redNAS (NFS, SMB/ CIFS)
ClienteiVMS-4200
Navegador webFirefox30+, Safari11+, Chrome41+, IE 11.0.9600.17843 and above version

Imagen
Interruptor de parámetros de imagenyes
Configuración de imagensaturation, brightness, contrast, sharpness
Wide Dynamic Range (WDR)140 dB WDR
SNR≥52dB
DesempañarOptical defog
Image StabilizationEIS
Mejora de la imagenBLC, HLC, 3D DNR
Máscara de privacidadup to 24 masks, mosaic mask , mask color configurable, rectangle region
Enfoque regionalyes
Exposición regionalyes

Interfaz
Ethernet Interface1 RJ45 10 M/100 M Ethernet Interface
Almacenamiento a bordoBuilt-in microSD slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
Alarma7 alarm inputs, 2 alarm outputs
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Evento
Evento Básicomotion detection, video tampering alarm, alarm input, alarm output, video tampering alarm, exception
Evento inteligenteintrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection
Linkagepreset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, white light flashing
Seguimiento inteligentemanual tracking, panorama tracking, event tracking, support patrol tracking among multiple detection scenes

General
alimentación24 VAC±25% (max. 60W, including max. 5 W for heater, max. 12 W for IR, max. 6 W for white light, and max. 8 W for radar)
DimensiónΦ338 mm (13.31") × 436 mm (17.17")
Approx. 12 kg (26.46 lb)
Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
Función generalmirror, password protection, video tampering alarm, watermark, IP address filter

Certificaciones
ProtecciónIP67 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Radar Detection

Frecuencia de trabajo

24.05 to 24.25 GHz

Distancia de detección

human: 100 m; vehicle: 120 m

Ángulo de detección horizontal

±45°

Ángulo de detección vertical

±14°

Max. Objetivos detectables

Precisión de medición de distancia

±1 m

Precisión de medición de velocidad

±0.07 m/s

Exactitud de medición de ángulo

±1°

Evento de radar

Radar events including line crossing detection and intrusion detection. Detected target is tracked and captured by PTZ camera channel. Video double checks radar detected targets to improve detection accuracy.

Cámara

Sensor de imagen

1/1.8＂ progressive scan CMOS

Max. Resolución

2560 × 1440

Iluminación mínima

Color: 0.002 Lux @ (F1.2, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR

Velocidad de obturación

1/1 s to 1/30,000 s

Día y Noche

ICR

Zoom

40 × optical,16 × digital

Obturador lento

yes

Lente

Longitud focal

6.0 mm to 240 mm, 40 × Optical

FOV

Horizontal field of view: 59.0° to 1.8° (wide-tele) Vertical field of view: 34.2° to 1.0° (wide-tele) Diagonal field of view: 67° to 2.0° (wide-tele)

Enfoque

semi-auto, manual, auto

Apertura

F1.2

Velocidad del Zoom

approx. 4.8 s (optical, wide-tele)

Iluminador

Tipo de luz suplementaria

Rango de luz suplementaria

Up to 200 m

Luz de suplemento inteligente

yes

PTZ

Rango de movimiento (pan)

360°

Rango de movimiento (tilt)

-20° to 90° (auto flip)

Velocidad de movimiento horizontal (pan)

pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s

Velocidad de vertical (tilt)

tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s

Proportional Pan

yes

Preajustes

300

Congelación preestablecida

yes

Escaneo de patrulla

8 patrols

Patrón de escaneo

4 pattern scans

Acción del parque

preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

Posicionamiento 3D

yes

Pantalla de estado de PTZ

yes

Tarea programada

preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Memoria de apagado

yes

Vídeo

Main stream

50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 50fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Compresión de vídeo

H.265, H.264, MJPEG

Vídeo bitrate

32 Kbps to 16384 Kbps

Tipo H.264

baseline profile, main profile, high profile

Tipo H.265

main profile

Codificación de video escalable (SVC)

yes

Región de interés (ROI)

dynamic target tracking, main stream, sub-stream and third stream respectively support eight fixed areas

Audio

Compresión de audio

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Velocidad de bits de audio

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)

Red

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Vista en vivo simultánea

API

ISUP

Usuario/operador

Seguridad

Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter

Almacenamiento en red

NAS (NFS, SMB/ CIFS)

Cliente

iVMS-4200

Navegador web

Firefox30+, Safari11+, Chrome41+, IE 11.0.9600.17843 and above version

Imagen

Interruptor de parámetros de imagen

yes

Configuración de imagen

saturation, brightness, contrast, sharpness

Wide Dynamic Range (WDR)

140 dB WDR

SNR

≥52dB

Desempañar

Optical defog

Image Stabilization

EIS

Mejora de la imagen

BLC, HLC, 3D DNR

Máscara de privacidad

up to 24 masks, mosaic mask , mask color configurable, rectangle region

Enfoque regional

yes

Exposición regional

yes

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M Ethernet Interface

Almacenamiento a bordo

Built-in microSD slot, support microSD/microSDHC/microSDXC cards, up to 256 GB

Audio

1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω

Alarma

7 alarm inputs, 2 alarm outputs

RS-485

Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Evento

Evento Básico

motion detection, video tampering alarm, alarm input, alarm output, video tampering alarm, exception

Evento inteligente

intrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection

Linkage

preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, white light flashing

Seguimiento inteligente

manual tracking, panorama tracking, event tracking, support patrol tracking among multiple detection scenes

General

alimentación

24 VAC±25% (max. 60W, including max. 5 W for heater, max. 12 W for IR, max. 6 W for white light, and max. 8 W for radar)

Dimensión

Φ338 mm (13.31") × 436 mm (17.17")

Approx. 12 kg (26.46 lb)

Operating Condition

Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%

Función general

mirror, password protection, video tampering alarm, watermark, IP address filter

Certificaciones

Protección

IP67 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Radar Detection

Frecuencia de trabajo24.05 to 24.25 GHz
Distancia de detecciónhuman: 100 m; vehicle: 120 m
Ángulo de detección horizontal±45°
Ángulo de detección vertical±14°
Max. Objetivos detectables32
Precisión de medición de distancia±1 m
Precisión de medición de velocidad±0.07 m/s
Exactitud de medición de ángulo±1°
Evento de radarRadar events including line crossing detection and intrusion detection. Detected target is tracked and captured by PTZ camera channel. Video double checks radar detected targets to improve detection accuracy.

Cámara

Sensor de imagen1/1.8＂ progressive scan CMOS
Max. Resolución2560 × 1440
Iluminación mínimaColor: 0.002 Lux @ (F1.2, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Velocidad de obturación1/1 s to 1/30,000 s
Día y NocheICR
Zoom40 × optical,16 × digital
Obturador lentoyes

Lente

Longitud focal6.0 mm to 240 mm, 40 × Optical
FOVHorizontal field of view: 59.0° to 1.8° (wide-tele) Vertical field of view: 34.2° to 1.0° (wide-tele) Diagonal field of view: 67° to 2.0° (wide-tele)
Enfoquesemi-auto, manual, auto
AperturaF1.2
Velocidad del Zoomapprox. 4.8 s (optical, wide-tele)

Iluminador

Tipo de luz suplementariaIR
Rango de luz suplementariaUp to 200 m
Luz de suplemento inteligenteyes

PTZ

Rango de movimiento (pan)360°
Rango de movimiento (tilt)-20° to 90° (auto flip)
Velocidad de movimiento horizontal (pan)pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Velocidad de vertical (tilt)tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Proportional Panyes
Preajustes300
Congelación preestablecidayes
Escaneo de patrulla8 patrols
Patrón de escaneo4 pattern scans
Acción del parquepreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
Posicionamiento 3Dyes
Pantalla de estado de PTZyes
Tarea programadapreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Memoria de apagadoyes

Vídeo

Main stream50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 50fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Compresión de vídeoH.265, H.264, MJPEG
Vídeo bitrate32 Kbps to 16384 Kbps
Tipo H.264baseline profile, main profile, high profile
Tipo H.265main profile
Codificación de video escalable (SVC)yes
Región de interés (ROI)dynamic target tracking, main stream, sub-stream and third stream respectively support eight fixed areas

Audio

Compresión de audioG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Velocidad de bits de audio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)

Red

ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Vista en vivo simultánea20
APIISUP
Usuario/operador32
SeguridadAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Almacenamiento en redNAS (NFS, SMB/ CIFS)
ClienteiVMS-4200
Navegador webFirefox30+, Safari11+, Chrome41+, IE 11.0.9600.17843 and above version

Imagen

Interruptor de parámetros de imagenyes
Configuración de imagensaturation, brightness, contrast, sharpness
Wide Dynamic Range (WDR)140 dB WDR
SNR≥52dB
DesempañarOptical defog
Image StabilizationEIS
Mejora de la imagenBLC, HLC, 3D DNR
Máscara de privacidadup to 24 masks, mosaic mask , mask color configurable, rectangle region
Enfoque regionalyes
Exposición regionalyes

Interfaz

Ethernet Interface1 RJ45 10 M/100 M Ethernet Interface
Almacenamiento a bordoBuilt-in microSD slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
Alarma7 alarm inputs, 2 alarm outputs
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Evento

Evento Básicomotion detection, video tampering alarm, alarm input, alarm output, video tampering alarm, exception
Evento inteligenteintrusion detection, line crossing detection, region entrance detection, region exiting detection, audio exception detection
Linkagepreset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, white light flashing
Seguimiento inteligentemanual tracking, panorama tracking, event tracking, support patrol tracking among multiple detection scenes

General

alimentación24 VAC±25% (max. 60W, including max. 5 W for heater, max. 12 W for IR, max. 6 W for white light, and max. 8 W for radar)
DimensiónΦ338 mm (13.31") × 436 mm (17.17")
Approx. 12 kg (26.46 lb)
Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
Función generalmirror, password protection, video tampering alarm, watermark, IP address filter
