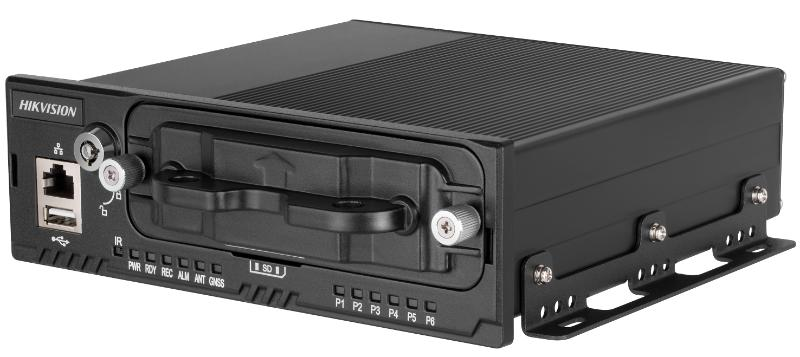

4-ch , H.264/H.265, 2 x HDD/SSD Mobile NVR

4-ch IP cameras connectable via PoE interfaces, and 4-ch IP cameras extendable via PoE switch.
Up to 5MP resolution of H.264/H.265 compression for each IP camera.( *Support this function since V5.6.4 )
Pluggable 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB
User-friendly GUI providing easy and flexible operations.
Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions.
Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
Specialized aviation connectors ensuring signal stability.
Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
Build-in super-capacitor prevents the mobile NVR from damage caused by sudden power outage.
Wide-range power input (+9 VDC to +36 VDC).
Power-off protection prevents key data loss.
Aluminum die-cast chassis with no fan design well adaptable to working environment.
Software-based firewall supported.
Support accessing via WEB browser.
Support recording backup on redundant HDD/SSDs.

View Less

Data Sheet

Available models:

AE-MN5043(RJ45)

AE-MN5043(1T/SSD)(RJ45)

AE-MN5043(RJ45)

Especificación
Resources
Accesorios

Data Sheet

Entrada vídeo/audio
Audio bidireccional4-ch connected via PoE interfaces and 4-ch extendable via PoE switch.
Cámara IP1, integrated in EXT.DEV interface

Salida vídeo/audio
Salida de audio1, integrated in EXT.DEV interface
Salida de VídeoMain output: 1, integrated in EXT.DEV interface. VGA: 1

Parámetros de Codificación/Decodificación
Compresión de vídeoH.265/H.264
Compresión de audioG.711a/G.711u/G.722.1/G.726
Velocidad de bits de audio16 Kbps
Stream TypeVideo, video & audio
Dual StreamSupported
Frame RatePAL: 1 to 25 fps; NTSC: 1 to 30 fps
Resolución de codificaciónMain stream: 1080P/720P/WD1/4CIF Sub-stream: 720P/WD1/4CIF/2CIF/CIF

Red inalámbrica
Wi-FiWI58 model: 2 × 5.8 G Wi-Fi SMA antenna (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)
Marcación 3G/4G1 × 4G card slot, 1 × FAKRA antenna

Almacenamiento
SD Card Storage1 × SD card, up to 512 GB（not for baseline. Note the SD card capacity when ordering）
HDD/SDD2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB HDD/SSD data can be exported locally via this converter (optional) Hard Disk Case with heating function (optional)

Auxiliary Interface
Interfaz de redFront panel :1 ×10M/100M RJ45 Rear panel: 1 × 10M/100M 6-pin aviation connector Note：The front and rear network ports are at different network segments and the 6-pin aviation network cable female head to RJ45 is optional.
Entrada de alarma4 high/low level signal inputs, 1 pulse signal input, 1 button input
Salida de alarma2 relay signal outputs
Entrada de sensor4 high/low level signal inputs
Puerto Serial1 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface)

Posicionamiento
GNSS (Global Navigation Satellite System)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna

Sensor
Sensor GBuilt-in

General
Fuente de alimentación+9 to +36 VDC
Dimensión del producto206 mm × 225.4 mm × 60.1 mm (8.1" × 8.87" × 2.37")
Consumo de energíaStandby: ≤ 0.5 W Full load: ≤ 55 W Note: Without peripheral and storage media ≤ 20 W
Temperatura de funcionamiento-25 °C to +70 °C (-13 °F to +158°F)
Condiciones de humedad10% to 95% (non-condensing)
Método de operaciónMouse, IR remote control, Web control, and touchscreen
CertificaciónCE/FCC/Emark/EN50155/CB/EN45545/ROHS 2.0/ISO-7637-2
Weight (Without Storage Media)1.66 kg (3.67 lb.)

Certificaciones
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021)
SeguridadCB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020 )
AmbienteCE-RoHS (2011/65/EU and amendment 2015/863/EU)
Automotriz y ferroviarioEN50155(EN 50155:2021 clause 13, EN 50121-3-2:2016+A1:2019, EN45545-2:2020, EN50153:2014+A1:2017+A2:2020, BS EN ISO:13732-1:2008,ISO 13732-1:2006;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10)

Entrada vídeo/audio

Audio bidireccional

4-ch connected via PoE interfaces and 4-ch extendable via PoE switch.

Cámara IP

1, integrated in EXT.DEV interface

Salida vídeo/audio

Salida de audio

1, integrated in EXT.DEV interface

Salida de Vídeo

Main output: 1, integrated in EXT.DEV interface. VGA: 1

Parámetros de Codificación/Decodificación

Compresión de vídeo

H.265/H.264

Compresión de audio

G.711a/G.711u/G.722.1/G.726

Velocidad de bits de audio

16 Kbps

Stream Type

Video, video & audio

Dual Stream

Supported

Frame Rate

PAL: 1 to 25 fps; NTSC: 1 to 30 fps

Resolución de codificación

Main stream: 1080P/720P/WD1/4CIF Sub-stream: 720P/WD1/4CIF/2CIF/CIF

Red inalámbrica

Wi-Fi

WI58 model: 2 × 5.8 G Wi-Fi SMA antenna (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)

Marcación 3G/4G

1 × 4G card slot, 1 × FAKRA antenna

Almacenamiento

SD Card Storage

1 × SD card, up to 512 GB（not for baseline. Note the SD card capacity when ordering）

HDD/SDD

2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB HDD/SSD data can be exported locally via this converter (optional) Hard Disk Case with heating function (optional)

Auxiliary Interface

Interfaz de red

Front panel :1 ×10M/100M RJ45 Rear panel: 1 × 10M/100M 6-pin aviation connector Note：The front and rear network ports are at different network segments and the 6-pin aviation network cable female head to RJ45 is optional.

Entrada de alarma

4 high/low level signal inputs, 1 pulse signal input, 1 button input

Salida de alarma

2 relay signal outputs

Entrada de sensor

4 high/low level signal inputs

Puerto Serial

1 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface)

Posicionamiento

GNSS (Global Navigation Satellite System)

GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna

Sensor

Sensor G

Built-in

General

Fuente de alimentación

+9 to +36 VDC

Dimensión del producto

206 mm × 225.4 mm × 60.1 mm (8.1" × 8.87" × 2.37")

Consumo de energía

Standby: ≤ 0.5 W Full load: ≤ 55 W Note: Without peripheral and storage media ≤ 20 W

Temperatura de funcionamiento

-25 °C to +70 °C (-13 °F to +158°F)

Condiciones de humedad

10% to 95% (non-condensing)

Método de operación

Mouse, IR remote control, Web control, and touchscreen

Certificación

CE/FCC/Emark/EN50155/CB/EN45545/ROHS 2.0/ISO-7637-2

Weight (Without Storage Media)

1.66 kg (3.67 lb.)

Certificaciones

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021)

Seguridad

CB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020 )

Ambiente

CE-RoHS (2011/65/EU and amendment 2015/863/EU)

Automotriz y ferroviario

EN50155(EN 50155:2021 clause 13, EN 50121-3-2:2016+A1:2019, EN45545-2:2020, EN50153:2014+A1:2017+A2:2020, BS EN ISO:13732-1:2008,ISO 13732-1:2006;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10)
