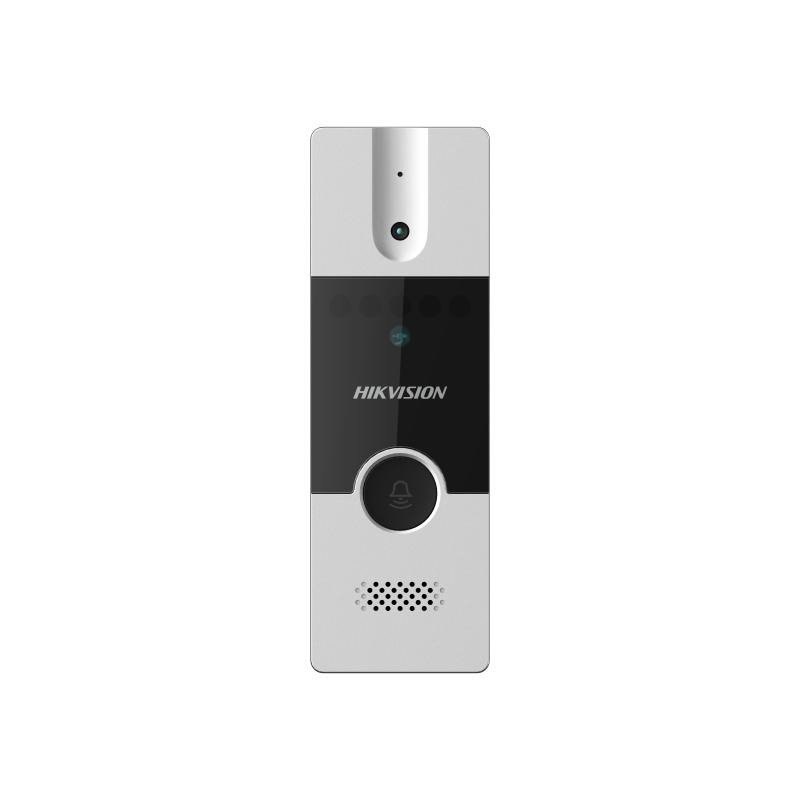

DS-KB2411T-IM

Analog Four Wire Door Station

4-wire plug & play analog door station
2 MP Pinhole camera with self-adaptive IR supplement
One-touch calling design for easier calls
Supports two door stations simultaneously in the intercom system
Convenient installation and easy operation

View Less

Available models:

DS-KB2411T-IM

Parámetros de vídeo
Cámara1/2.7" CMOS
Resolución1920 × 1080 Stream resolution: 960 × 576
FOVHorizontal: 66.2°，Vertical: 37.2°
Vídeo frame ratePAL: 25 fps

Parámetros de audio
Entrada de AudioBuilt-in omnidirectional microphone
Salida de audioBuilt-in loudspeaker

Interfaz de dispositivos
Interfaz a 4-hilos1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding)
Salida I/O1 relay output

General
Fuente de alimentación12 VDC
Consumo de energíaMax. 5W
Temperatura de trabajo-10° C to + 55° C (14° F to 131° F)
Condiciones de Humedad10% to 90%
Dimensiones (L x W x D)135.14 mm × 49.6 mm × 41.93 mm (5.32" × 1.95" × 1.65")
MaterialAluminum alloy

Especificación

Parámetros de vídeo

Cámara

1/2.7" CMOS

Resolución

1920 × 1080 Stream resolution: 960 × 576

FOV

Horizontal: 66.2°，Vertical: 37.2°

Vídeo frame rate

PAL: 25 fps

Parámetros de audio

Entrada de Audio

Built-in omnidirectional microphone

Salida de audio

Built-in loudspeaker

Interfaz de dispositivos

Interfaz a 4-hilos

1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding)

Salida I/O

1 relay output

General

Fuente de alimentación

12 VDC

Consumo de energía

Max. 5W

Temperatura de trabajo

-10° C to + 55° C (14° F to 131° F)

Condiciones de Humedad

10% to 90%

Dimensiones (L x W x D)

135.14 mm × 49.6 mm × 41.93 mm (5.32" × 1.95" × 1.65")

Material

Aluminum alloy

Parámetros de vídeo

Cámara1/2.7" CMOS
Resolución1920 × 1080 Stream resolution: 960 × 576
FOVHorizontal: 66.2°，Vertical: 37.2°
Vídeo frame ratePAL: 25 fps

Parámetros de audio

Entrada de AudioBuilt-in omnidirectional microphone
Salida de audioBuilt-in loudspeaker

Interfaz de dispositivos

Interfaz a 4-hilos1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding)
Salida I/O1 relay output

General

Fuente de alimentación12 VDC
Consumo de energíaMax. 5W
Temperatura de trabajo-10° C to + 55° C (14° F to 131° F)
Condiciones de Humedad10% to 90%
Dimensiones (L x W x D)135.14 mm × 49.6 mm × 41.93 mm (5.32" × 1.95" × 1.65")
MaterialAluminum alloy

Data Sheet
