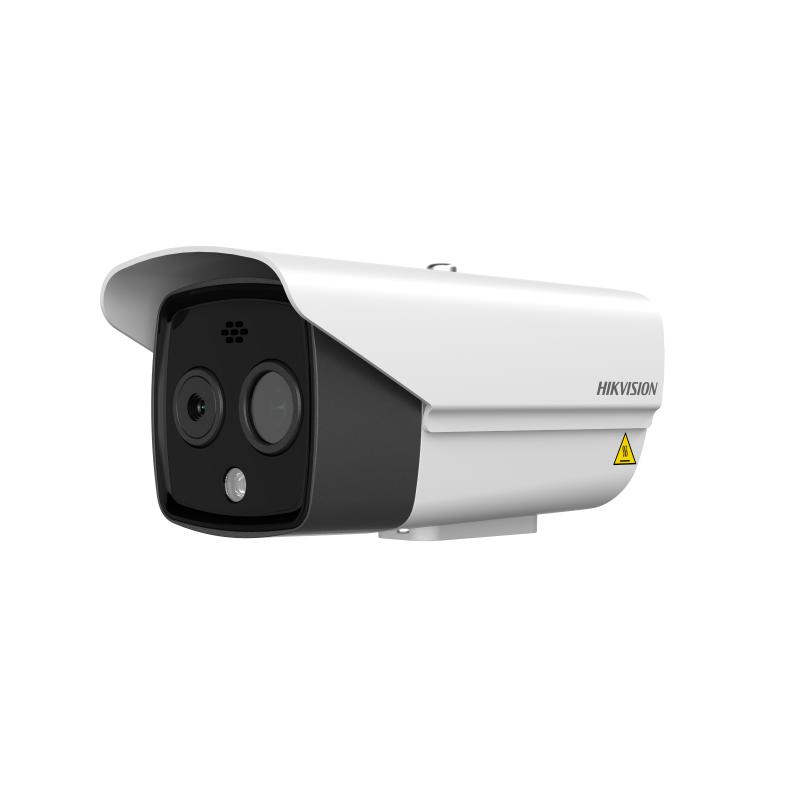

4G Thermal & Optical Bi-spectrum Network Bullet Camera

256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
Video content analysis: vehicle/human classification
Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
LTE-TDD/LTE-FDD/WCDMA 4G wireless network transmission, support Micro SIM card
Water and dust resistant (IP67)
Embedded audible alert and strobe light
High quality detector with 10 years guarantee

View Less

Data Sheet

Available models:

DS-2TD2628-3/QA/GLT

Especificación
Resources
Accesorios

Data Sheet

Módulo térmico
Sensor de imagenVanadium Oxide Uncooled Focal Plane Arrays
Resolución256 x 192
Tamaño de píxel12 μm
Spectral Range8 μm to 14 μm
NETD ≤ 40 mK (@25° C,F# = 1.0)
Longitud focal3.6 mm
Modo de enfoqueAthermalized
IFOV3.33 mrad
Apertura F1.0
Campo de visión50.0° × 37.3° (H × V)
Min. Distancia de enfoque0.5 m
Zoom Digital×2, ×4

Módulo óptico
Sensor de imagen1/2.7" Progressive Scan CMOS
Resolución2688 × 1520
Iluminación mínima0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Campo de visión 84.0° ×43.1° (H × V)
Longitud focal4.3 mm
AperturaF 1.6
Velocidad de obturación1 s to 1/100,000 s
Balance de blancosMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
Modo día y noche IR Cut Filter with Auto Switch
WDR120 dB

Image Effect
Fusión de imagen de doble espectro Display the details of optical channel on thermal channel
Target Coloration Yes. Supported in white hot and black hot mode

Iluminador
Distancia IR Up to 30 m
Intensidad y ángulo IR Automatically adjusted

Audible and Visual Alarm
Rango de luz blanca Up to 30 m
Alarma visualYes. White light alarm with adjustable flashing frequencies
Audio alarm Yes, for three types of audible alarm (VCA and Temperature Exception) 3 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types)

Función inteligente
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Medida de temperatura3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Rango de temperatura-20°C to 150°C (-4°F to 302°F)
Precisión de la temperatura ± 8°C (± 14.4°F)

Video and Audio
Main stream Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
Compresión de vídeo Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Compresión de audioG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Red
Protocolos IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
Almacenamiento en redMicroSD/SDHC/SDXC card (32G inside) (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
Vista en vivo simultáneaUp to 20 channels
Nivel de usuario/operadorUp to 32 users, 3 levels: Administrator, Operator, User
Seguridad User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Cliente iVMS-4200, Hik-Connect

Mobile Communication
SIM Card TypeMicroSIM
FrecuenciaLTE FDD: B 1/3/5/7/8/20/28 LTE TDD: B 38/40/41 WCDMA: B 1/5/8
EstándarLTE FDD/LTE TDD/WCDMA

Interfaz
Entrada de alarma2, alarm input (0-5 VDC)
Salida de alarma 2, alarm output (alarm response actions configurable)
Acción de alarmaLinkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
Entrada de Audio1, 3.5 mm Mic in/Line in interface Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Salida de audioLinear level, impedance: 600 Ω
Interfaz de comunicación 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)

General
Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Fuente de alimentación 12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3af, class 3)
Consumo de energía12 VDC ± 25%: 0.83 A, Max. 10 W PoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.18 A, Max. 10 W
Working Temperature/HumidityTemperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
Nivel de protecciónIP67 Standard ,IK10-rated housing TVS 4000V lightning protection, surge protection, voltage transient protection
Dimensiones 208.9 mm × 106 mm × 105.2 mm (8.22" × 4.17" × 4.14")
1332 g (2.94 lb)

Tabla de rango de detección/rango de función inteligente
Rango VCA para humanos24 m
Rango VCA para vehículos72 m
