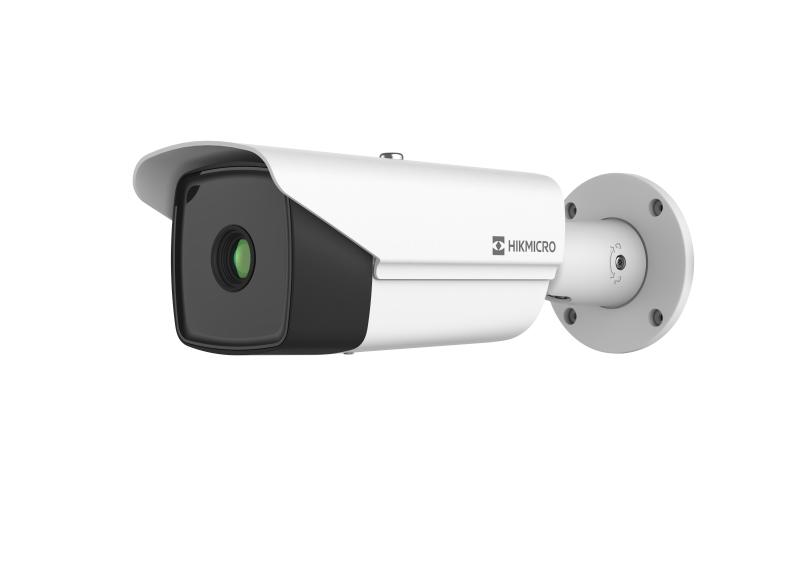

Thermal Network Bullet Camera

384 × 288 resolution, 12 μm, VOx UFPA, NETD ≤ 25 mK (25°C, F1.0)
Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
High quality detector with 10 years guarantee

View Less

Data Sheet

Available models:

HM-TD2138-8/G0/T1Y(L)

HM-TD2138-8/G0/T1Y(L) ^NEW

Especificación
Resources
Accesorios

Data Sheet

Módulo térmico
Sensor de imagenVanadium Oxide Uncooled Focal Plane Arrays
Resolución384 x 288
Tamaño de píxel12 μm
NETD ≤ 25 mK (@25° C,F# = 1.0)
Longitud focal7.6 mm
IFOV1.58 mrad
AperturaF1.0
Campo de visión35° × 26.1° (H × V)
Min. Distancia de enfoque1 m
Zoom Digital×2, ×4，×8

Image Effect
EISSupport

Video and Audio
Main stream25 fps (1280 × 720P, 704 × 576, 352 × 288, 384 × 288)
Sub-stream25 fps (704 × 576, 352 × 288, 384 × 288)
Third Stream25 fps(1280 × 720P, 704 × 576, 352 × 288, 384 × 288)
Compresión de vídeoMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Compresión de audioG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Video and Image
Color Palettes17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)

Red
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS
Almacenamiento en redMicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
APIISAPI,ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T)
Vista en vivo simultáneaUp to 20 channels
Nivel de usuario/operadorUp to 32 users, 3 levels: Administrator, Operator, User
SeguridadUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Cliente iVMS-4200, Hik-Connect

Interfaz
Entrada de alarma2, alarm input (0-5 VDC)
Salida de alarma2-ch, relay outputs (alarm response actions configurable)
Acción de alarmaSD recording/Relay output/Smart capture/FTP upload/Email linkage
Entrada de Audio1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Salida de audio Linear level, impedance: 600 Ω
Interfaz de comunicación1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)
Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC

General
Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Fuente de alimentación24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block PoE (802.3af, class 3)
Consumo de energía24 VAC ± 25%: 0.33 A to 0.55 A, max. 6.2 W 12 VDC ± 25%: 0.8 A to 1.33 A, max. 5.3 W PoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max.5.8 W
Working Temperature/HumidityTemperature: -40°C to 70°C (-40°F to 158°F) Humidity: 95% or less
Nivel de protecciónIP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection IK10-rated housing NEMA 4X anti-corrosion housing
Dimensiones 351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53")
Approx. 1.77 kg (3.90 lb)

Certificaciones
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)
SeguridadCB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005 LOA: SANS/IEC 60950-1
AmbienteCE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
ProtecciónIP67: IEC 60529-2013 IK10: IEC 62262-2002
Protección anticorrosivaNEMA 4X (NEMA 250-2018)

Módulo térmico

Sensor de imagen

Vanadium Oxide Uncooled Focal Plane Arrays

Resolución

384 x 288

Tamaño de píxel

12 μm

NETD

≤ 25 mK (@25° C,F# = 1.0)

Longitud focal

7.6 mm

IFOV

1.58 mrad

Apertura

F1.0

Campo de visión

35° × 26.1° (H × V)

Min. Distancia de enfoque

1 m

Zoom Digital

×2, ×4，×8

Image Effect

EIS

Support

Video and Audio

Main stream

25 fps (1280 × 720P, 704 × 576, 352 × 288, 384 × 288)

Sub-stream

25 fps (704 × 576, 352 × 288, 384 × 288)

Third Stream

25 fps(1280 × 720P, 704 × 576, 352 × 288, 384 × 288)

Compresión de vídeo

Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG

Compresión de audio

G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Video and Image

Color Palettes

17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)

Red

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS

Almacenamiento en red

MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

API

ISAPI,ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T)

Vista en vivo simultánea

Up to 20 channels

Nivel de usuario/operador

Up to 32 users, 3 levels: Administrator, Operator, User

Seguridad

User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Cliente

iVMS-4200, Hik-Connect

Interfaz

Entrada de alarma

2, alarm input (0-5 VDC)

Salida de alarma

2-ch, relay outputs (alarm response actions configurable)

Acción de alarma

SD recording/Relay output/Smart capture/FTP upload/Email linkage

Entrada de Audio

1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

Salida de audio

Linear level, impedance: 600 Ω

Interfaz de comunicación

1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)

Analog Output

1.0V [p-p]/75Ω, PAL/NTSC/BNC

General

Menu Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Fuente de alimentación

24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block PoE (802.3af, class 3)

Consumo de energía

24 VAC ± 25%: 0.33 A to 0.55 A, max. 6.2 W 12 VDC ± 25%: 0.8 A to 1.33 A, max. 5.3 W PoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max.5.8 W

Working Temperature/Humidity

Temperature: -40°C to 70°C (-40°F to 158°F) Humidity: 95% or less

Nivel de protección

IP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection IK10-rated housing NEMA 4X anti-corrosion housing

Dimensiones

351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53")

Approx. 1.77 kg (3.90 lb)

Certificaciones

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)

Seguridad

CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005 LOA: SANS/IEC 60950-1

Ambiente

CE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006

Protección

IP67: IEC 60529-2013 IK10: IEC 62262-2002

Protección anticorrosiva

NEMA 4X (NEMA 250-2018)
