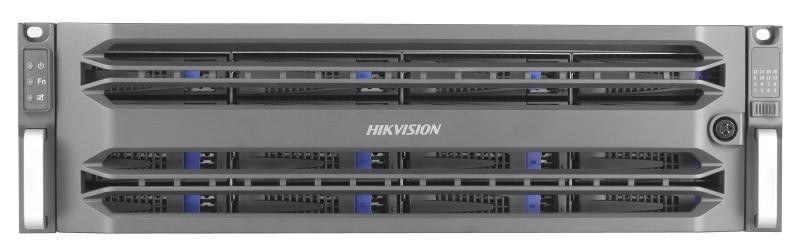

16-slot Cost-efficient Super Capacity Storage

  • 15*20 TB IoT SMR enterprise HDD
  • IoT fully sealed helium HDD technology
  • Surveillance-specialized direct storage (Direct Streaming mode)
  • Highly cost efficient, safe and reliable
  • Energy saving and space saving
  • Easy operation and maintenance
  • SMR HDD providing 5-year warranty
View Less
View more
Sales Inquiry
DS-AT1000S/300

Especificación

  • Hardware
  • Cache12 GB, extendable to 32 GB
  • Procesador64-bit multi-core processor
  • Administración de almacenamiento
  • Disk managementDisk detection, pre-alarm, and repair
  • Gestión lógica del volumenRecording volume management
  • Gestión de grabación
  • Modo grabaciónContinuous recording, manual recording, and alarm recording
  • Video protectionVideo lock, video loss alarm
  • Searching modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
  • Downloading modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
  • Red
  • ProtocoloRTSP;ONVIF;HKSDK
  • Mantenimiento de dispositivo
  • Modo de gestiónGUI based on web, serial port CLI, platform
  • Modo de alarmaAudio, indicator, GUI
  • Almacenamiento
  • HDD slot16
  • Interface/capacitySATA, Up to 20TB
  • RAIDRAID5, RAID6, iRAID
  • Rendimiento
  • Video performance256
  • Picture performance50
  • Direct streaming mode: video (2 Mbps) + picture256-ch
  • General
  • Fuente de alimentación100 to 127 VAC or 200 to 240 VAC/47 to 63Hz, redundant power supply
  • Consumption (with HDDs)≤ 255 W
  • Environment temperatureWorking: +5 °C to +40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
  • Environment humidityWorking: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
  • Dimensiones (W x H x D)486 x 535 x 134 mm (19.2 x 21.1 x 5.3 in)
  • Weight (without HDDs)≤20kg (44.1 lb)
  • Interfaces
  • USB2, USB 3.0
  • Data network interface3, 1000 Mbps Ethernet interface
  • MiniSAS interface2
  • COM1, RS-232
  • Management network interface1, 1000 Mbps Ethernet interface
  • HDD
  • HDD ModelHikvision,HK7220AH,20T
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Hardware
Cache
12 GB, extendable to 32 GB
Procesador
64-bit multi-core processor
Administración de almacenamiento
Disk management
Disk detection, pre-alarm, and repair
Gestión lógica del volumen
Recording volume management
Gestión de grabación
Modo grabación
Continuous recording, manual recording, and alarm recording
Video protection
Video lock, video loss alarm
Searching mode
Log in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
Downloading mode
Log in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
Red
Protocolo
RTSP;ONVIF;HKSDK
Mantenimiento de dispositivo
Modo de gestión
GUI based on web, serial port CLI, platform
Modo de alarma
Audio, indicator, GUI
Almacenamiento
HDD slot
16
Interface/capacity
SATA, Up to 20TB
RAID
RAID5, RAID6, iRAID
Rendimiento
Video performance
256
Picture performance
50
Direct streaming mode: video (2 Mbps) + picture
256-ch
General
Fuente de alimentación
100 to 127 VAC or 200 to 240 VAC/47 to 63Hz, redundant power supply
Consumption (with HDDs)
≤ 255 W
Environment temperature
Working: +5 °C to +40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
Environment humidity
Working: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
Dimensiones (W x H x D)
486 x 535 x 134 mm (19.2 x 21.1 x 5.3 in)
Weight (without HDDs)
≤20kg (44.1 lb)
Interfaces
USB
2, USB 3.0
Data network interface
3, 1000 Mbps Ethernet interface
MiniSAS interface
2
COM
1, RS-232
Management network interface
1, 1000 Mbps Ethernet interface
HDD
HDD Model
Hikvision,HK7220AH,20T
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Especificación
Hardware
  • Cache12 GB, extendable to 32 GB
  • Procesador64-bit multi-core processor
Administración de almacenamiento
  • Disk managementDisk detection, pre-alarm, and repair
  • Gestión lógica del volumenRecording volume management
Gestión de grabación
  • Modo grabaciónContinuous recording, manual recording, and alarm recording
  • Video protectionVideo lock, video loss alarm
  • Searching modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
  • Downloading modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
Red
  • ProtocoloRTSP;ONVIF;HKSDK
Mantenimiento de dispositivo
  • Modo de gestiónGUI based on web, serial port CLI, platform
  • Modo de alarmaAudio, indicator, GUI
Almacenamiento
  • HDD slot16
  • Interface/capacitySATA, Up to 20TB
  • RAIDRAID5, RAID6, iRAID
Rendimiento
  • Video performance256
  • Picture performance50
  • Direct streaming mode: video (2 Mbps) + picture256-ch
General
  • Fuente de alimentación100 to 127 VAC or 200 to 240 VAC/47 to 63Hz, redundant power supply
  • Consumption (with HDDs)≤ 255 W
  • Environment temperatureWorking: +5 °C to +40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
  • Environment humidityWorking: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
  • Dimensiones (W x H x D)486 x 535 x 134 mm (19.2 x 21.1 x 5.3 in)
  • Weight (without HDDs)≤20kg (44.1 lb)
Interfaces
  • USB2, USB 3.0
  • Data network interface3, 1000 Mbps Ethernet interface
  • MiniSAS interface2
  • COM1, RS-232
  • Management network interface1, 1000 Mbps Ethernet interface
HDD
  • HDD ModelHikvision,HK7220AH,20T
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
