*Images are for illustrative purposes. Actual product appearance and specifications may vary.

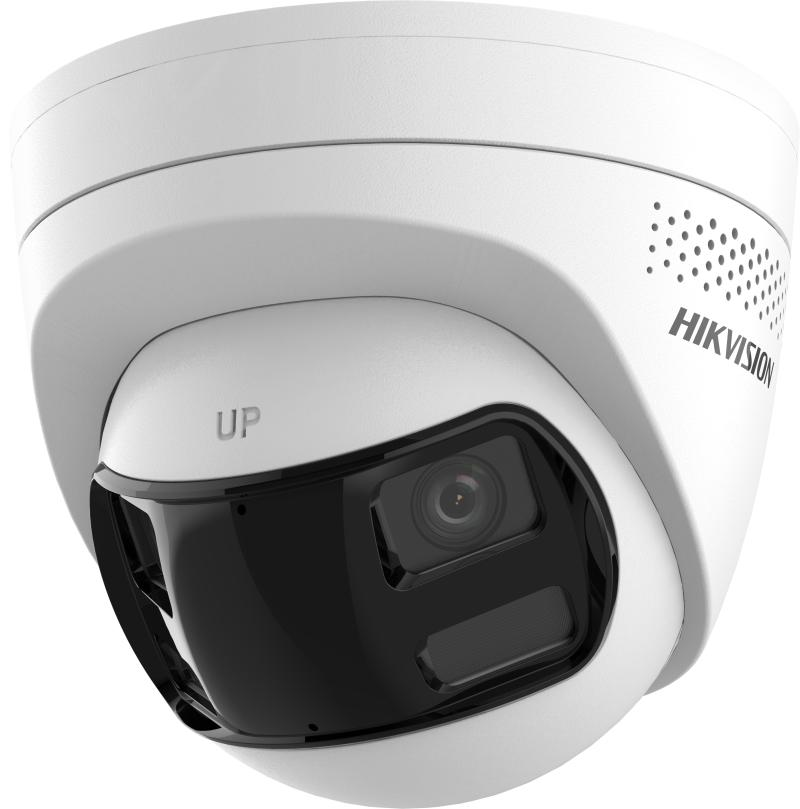

6 MP Dual Lens Stitched Wide Angle Smart Hybrid Light Fixed Turret Network Camera

180° Field of view
High quality imaging with 6 MP resolution
Support Person and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Efficient H.265+ compression technology
Support on-board storage up to 512 GB (SD card slot)
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
Built-in Microphone
Active strobe light and audio alarm to warn intruders off

View Less

Data Sheet

Available models:

DS-2CD1363G2P-LIUF/SL(2.8mm)

DS-2CD1363G2P-LIUF/S(L)(RB)

Especificación
Resources
Accesorios

Data Sheet

Cámara
Sensor de imagen 1/2.5" Progressive Scan CMOS
Max. Resolución 3632 × 1632
Iluminación mínima Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
Tiempo de obturación 1 s to 1/100,000 s
Día y Noche IR cut filter
Ajuste de ángulo Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lente
Lente Fixed focal lens, 2.8 mm
Focal Length & FOV 2.8 mm, horizontal FOV 180°, vertical FOV 77°
Montura del lente M12
Iris Type Fixed
Apertura F1.6

DORI
DORI 2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m

Iluminador
Tipo de luz suplementaria IR,White Light
Rango de luz suplementaria Up to 30 m
Luz de suplemento inteligente Yes
IR Wavelength 850 nm

Vídeo
Main stream 50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632)
Sub-stream 50 Hz: 20 fps (1200× 536, 960 × 432) 60 Hz: 20 fps (1200× 536, 960 × 432)
Compresión de video Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate 32 Kbps to 16 Mbps
Tipo H.264 Baseline Profile,Main Profile,High Profile
Tipo H.265 Main Profile
Bit Rate Control CBR,VBR
Codificación de video escalable (SVC) H.264 and H.265 encoding
Región de interés (ROI) 1 fixed region for main stream

Audio
Tipo de audio Mono sound
Compresión de audio G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Velocidad de bits de audio 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Frecuencia de muestreo de audio 8 kHz/16 kHz
Filtro de ruido ambiental Yes

Red
Protocolos TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
Vista en vivo simultánea Up to 6 channels
API ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK
Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user
Seguridad Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Cliente iVMS-4200,Hik-Connect
Navegador web Plug-in required live view: IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+

Imagen
Configuración de imagen Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Interruptor día/noche Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Mejora de la imagen BLC,HLC,3D DNR
Máscara de privacidad 4 programmable polygon privacy masks

Interfaz
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Micrófono incorporado Yes,1 built-in microphone
Altavoz incorporado Yes, 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Reset Key Yes

Evento
Evento Básico Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage Upload to FTP/memory card, send email, notify surveillance center, trigger recording, trigger capture, audible warning, strobe light flashing

General
alimentación 12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 11.5 W
Dimensión Ø130.1 mm × 109.1 mm (Ø5.12" × 4.3")
Dimensión del paquete 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Approx. 580 g (1.3 lb.)
Con peso del paquete Approx. 760 g (1.7 lb.)
Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Idioma English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
Función general Heartbeat,anti-banding,password protection,password reset via email
Luz intermitente /SRB model: Red and Blue Light /SL model: White Light

Certificaciones
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Seguridad CB: IEC 62368-1: 2014+A11, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Ambiente CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protección IP67: IEC 60529-2013

Cámara

Sensor de imagen

1/2.5" Progressive Scan CMOS

Max. Resolución

3632 × 1632

Iluminación mínima

Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light

Tiempo de obturación

1 s to 1/100,000 s

Día y Noche

IR cut filter

Ajuste de ángulo

Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lente

Fixed focal lens, 2.8 mm

Focal Length & FOV

2.8 mm, horizontal FOV 180°, vertical FOV 77°

Montura del lente

M12

Iris Type

Fixed

Apertura

F1.6

DORI

2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m

Iluminador

Tipo de luz suplementaria

IR,White Light

Rango de luz suplementaria

Up to 30 m

Luz de suplemento inteligente

Yes

IR Wavelength

850 nm

Vídeo

Main stream

50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632)

Sub-stream

50 Hz: 20 fps (1200× 536, 960 × 432) 60 Hz: 20 fps (1200× 536, 960 × 432)

Compresión de video

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Baseline Profile,Main Profile,High Profile

Tipo H.265

Main Profile

Bit Rate Control

CBR,VBR

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Región de interés (ROI)

1 fixed region for main stream

Audio

Tipo de audio

Mono sound

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Velocidad de bits de audio

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Frecuencia de muestreo de audio

8 kHz/16 kHz

Filtro de ruido ambiental

Yes

Red

Protocolos

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP

Vista en vivo simultánea

Up to 6 channels

API

ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK

Usuario/operador

Up to 32 users 3 user levels: administrator, operator, and user

Seguridad

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Cliente

iVMS-4200,Hik-Connect

Navegador web

Plug-in required live view: IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+

Imagen

Configuración de imagen

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interruptor día/noche

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Mejora de la imagen

BLC,HLC,3D DNR

Máscara de privacidad

4 programmable polygon privacy masks

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Micrófono incorporado

Yes,1 built-in microphone

Altavoz incorporado

Yes, 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.

Reset Key

Yes

Evento

Evento Básico

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Upload to FTP/memory card, send email, notify surveillance center, trigger recording, trigger capture, audible warning, strobe light flashing

General

alimentación

12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 11.5 W

Dimensión

Ø130.1 mm × 109.1 mm (Ø5.1" × 4.3")

Dimensión del paquete

150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Approx. 580 g (1.3 lb.)

Con peso del paquete

Approx. 760 g (1.7 lb.)

Condiciones de almacenaje

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Idioma

English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian

Función general

Heartbeat,anti-banding,password protection,password reset via email

Luz intermitente

/SRB model: Red and Blue Light /SL model: White Light

Certificaciones

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015

Seguridad

CB: IEC 62368-1: 2014+A11, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Ambiente

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protección

IP67: IEC 60529-2013
