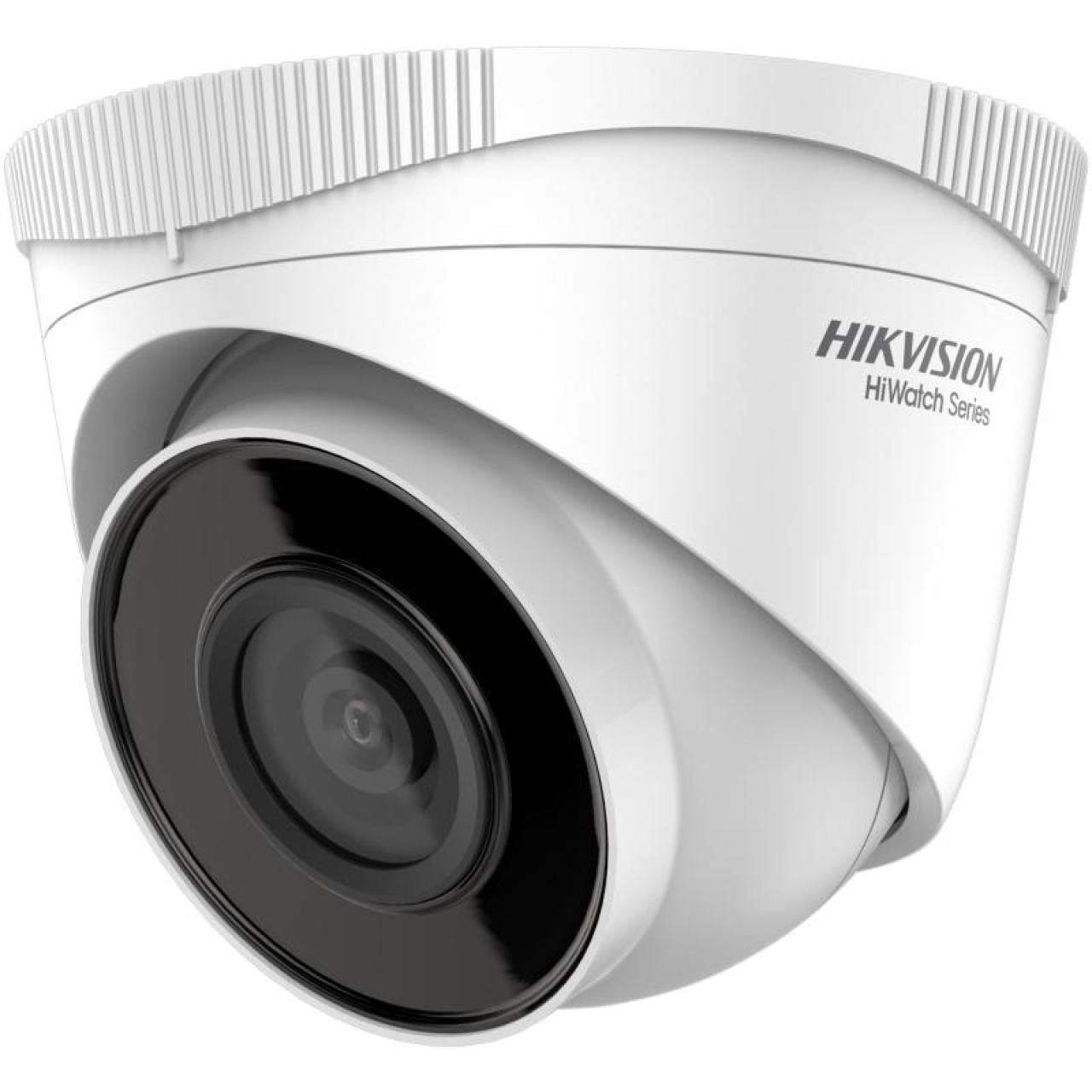

4K Fixed Turret Network Camera

High quality imaging with 8 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67)
Easy installation with Power over Ethernet (PoE) technology

View Less

Data Sheet

Available models:

HWI-T280H(2.8mm)(C)(HiWatchSTD)

HWI-T280H(4mm)(C)(HiWatchSTD)

HWI-T280H

Especificación
Resources
Accesorios

Data Sheet

Cámara
Sensor de imagen1/2.8" Progressive Scan CMOS
Max. Resolución3840 × 2160
Iluminación mínimaColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Tiempo de obturación1/3 s to 1/100,000 s
Día y NocheIR cut filter
Ajuste de ánguloPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lente
LenteFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127° 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°
Montura del lenteM12
Iris TypeFixed
AperturaF2.0

DORI
DORI2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m 4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m

Iluminador
Tipo de luz suplementariaIR
Rango de luz suplementariaUp to 30 m
Luz de suplemento inteligenteYes
IR Wavelength850 nm

Vídeo
Main stream50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Bit Rate ControlCBR/VBR
Región de interés (ROI)1 fixed region for main stream

Red
SeguridadPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)
Vista en vivo simultáneaUp to 6 channels
APIOpen Network Video Interface (Profile S), ISAPI, SDK
ProtocolosTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
Usuario/operadorUp to 32 users 3 levels: Administrator, Operator and User
ClienteiVMS-4200, Hik-Connect
Navegador webPlug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+

Imagen
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Interruptor día/nocheDay, Night, Auto, Schedule
Mejora de la imagenBLC, HLC, 3D DNR
Configuración de imagenMirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Máscara de privacidad4 regions of privacy mask

Interfaz
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Evento
Evento BásicoMotion detection , video tampering alarm, exception
LinkageNotify surveillance center, trigger capture

General
alimentación12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
MaterialMetal & Plastic
DimensiónØ110 mm × 95.2 mm (Ø4.3" × 3.8")
Dimensión del paquete150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Approx. 320 g (0.7 lb.)
Con peso del paqueteApprox. 540 g (1.2 lb.)
Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
IdiomaEnglish, Ukrainian
Función generalAnti-flicker, heartbeat, password protection, password reset via email

Certificaciones
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014)
SeguridadCE-LVD (EN 62368-1:2014/A11:2017)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtecciónIP67 (IEC 60529-2013)
