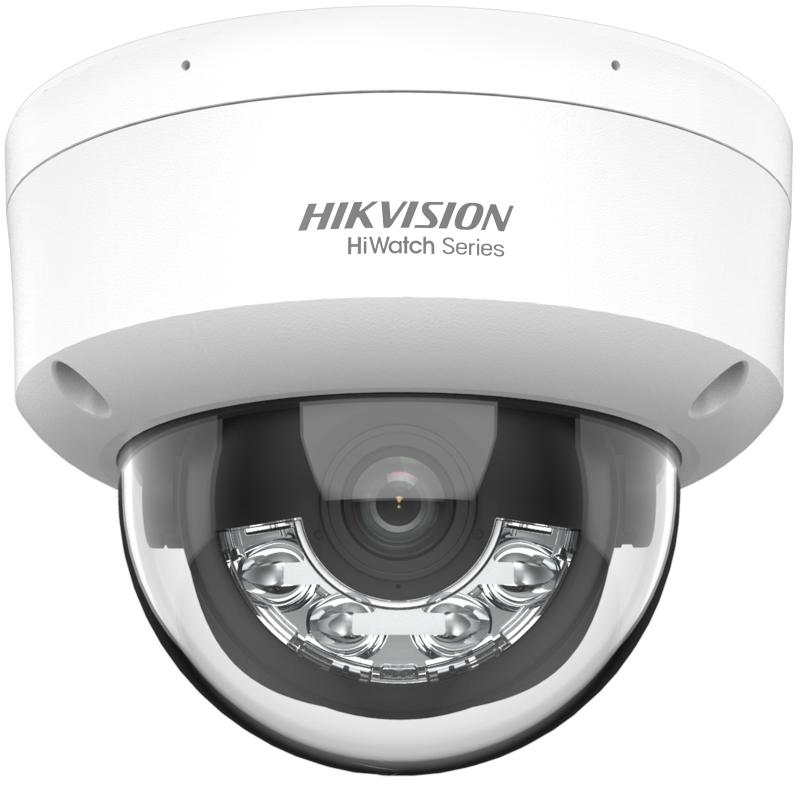

4 MP Smart Hybrid Light MD 2.0 Fixed Dome Network Camera

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67) and vandal resistant (IK08)
Efficient H.265+ compression technology

View Less

Data Sheet

Available models:

HWI-D140HA-LU(2.8mm)(HiWatchSTD)

HWI-D140HA-LU(4mm)(HiWatchSTD)

HWI-D140HA-LU

Especificación
Resources
Accesorios

Data Sheet

Cámara
Sensor de imagen1/3" Progressive Scan CMOS
Max. Resolución2560 × 1440
Iluminación mínimaColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Tiempo de obturación1/3 s to 1/100,000 s
Día y NocheIR cut filter
Ajuste de ánguloPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lente
LenteFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
Montura del lenteM12
Iris TypeFixed
AperturaF1.6

DORI
DORI2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Iluminador
Tipo de luz suplementariaIR,White Light
Rango de luz suplementariaUp to 30 m
Luz de suplemento inteligenteYes
IR Wavelength850 nm

Vídeo
Main stream50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Sub-stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 8 Mbps
Tipo H.264Baseline Profile,Main Profile,High Profile
Tipo H.265Main Profile
Bit Rate ControlCBR,VBR
Región de interés (ROI)1 fixed region for main stream

Audio
Tipo de audioMono sound
Filtro de ruido ambientalYes
Frecuencia de muestreo de audio8 kHz/16 kHz
Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Velocidad de bits de audio64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Red
SeguridadPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Vista en vivo simultáneaUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile T),ISAPI,SDK
ProtocolosTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Usuario/operadorUp to 32 users 3 user levels: administrator, operator, and user
ClienteiVMS-4200,Hik-Connect
Navegador webPlug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+

Imagen
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Interruptor día/nocheDay,Night,Auto,Schedule
Mejora de la imagenBLC,HLC,3D DNR
Configuración de imagenRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Máscara de privacidad4 programmable polygon privacy masks

Interfaz
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Micrófono incorporadoYes

Evento
Evento BásicoMotion detection,video tampering alarm,exception
LinkageUpload to FTP,send email,notify surveillance center,trigger capture

General
alimentación 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Cass 3, max. 7.5 W
MaterialMetal & Plastic
DimensiónØ121.4 mm × 97.7 mm (Ø4.8" × 3.8")
Dimensión del paquete150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Approx. 550 g (1.2 lb.)
Con peso del paqueteApprox. 800 g (1.8 lb.)
Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
IdiomaEnglish, Ukrainian
Función generalHeartbeat,anti-banding,mirror,password protection,password reset via email

Certificaciones
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
Seguridad CE-LVD: EN 62368-1: 2014/A11: 2017
AmbienteCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtecciónIP67: IEC 60529-2013,IK08: IEC 62262:2002
