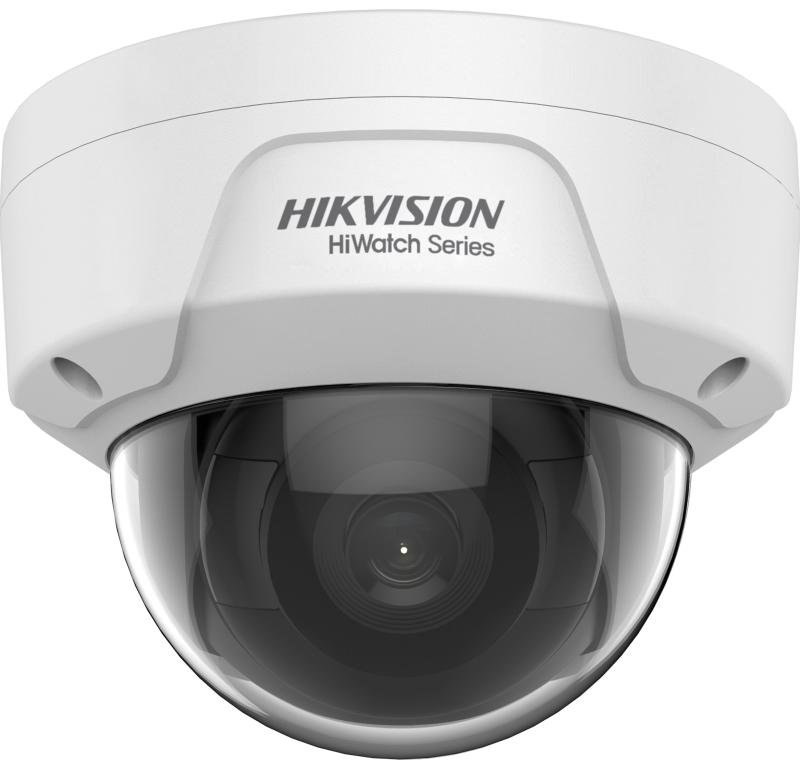

2 MP Fixed Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to DWDR technology
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Easy installation with Power over Ethernet (PoE) technology
View Less
View more

Available models:

HWI-D121H(2.8mm)(C)(HiWatchSTD)
HWI-D121H(4mm)(C)(HiWatchSTD)

Especificación

  • Cámara
  • Sensor de imagen1/2.7" Progressive Scan CMOS
  • Iluminación mínimaColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Velocidad de obturación1/3 s to 1/100, 000 s
  • Obturador lentoYes
  • Wide dynamic rangeDigital WDR
  • Día y NocheIR cut filter
  • Ajuste de ánguloPan: 0° to 355°, tilt: 0° to 75°
  • Lente
  • Focal Length & FOV2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
  • Montura del lenteM12
  • EnfoqueFixed
  • AperturaF2.0
  • Iluminador
  • IR Wavelength850 nm
  • Rango IRUp to 30 m
  • Vídeo
  • Max. Resolución1920 × 1080
  • Main stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Compresión de videoMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
  • Vídeo bitrate32 Kbps to 8 Mbps
  • Tipo H.264Baseline Profile/Main Profile/High Profile
  • Tipo H.265Main Profile
  • H.264 +Main Stream supports
  • H.265 +Main Stream supports
  • Región de interés (ROI)1 fixed region for main stream
  • Red
  • ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Vista en vivo simultáneaUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • Usuario/operadorUp to 32 users. 3 levels: administrator, operator and user
  • ClienteiVMS-4200, Hik-Connect
  • Navegador webPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Imagen
  • Configuración de imagenSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Interruptor día/nocheDay, Night, Auto, Schedule
  • Mejora de la imagenBLC, 3D DNR
  • Interfaz
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Evento
  • Evento BásicoMotion detection, video tampering alarm, exception
  • General
  • Método de enlaceUpload to FTP, notify surveillance center, send email
  • Material de la cámaraMetal & Plastic
  • Dimensión de la cámaraØ111 mm × 82.4 mm (Ø4.4" × 3.2")
  • Dimensión del paquete134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • Peso de la cámaraApprox. 410 g (0.9 lb.)
  • Con peso del paqueteApprox. 610 g (1.3 lb.)
  • Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Idioma del cliente webEnglish, Ukrainian
  • Función generalAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Versión de firmwareV5.5.120
  • Power Consumption and Current12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
  • Fuente de alimentación12 VDC ± 25% PoE: 802.3af, Class 3
  • Interfaz de energíaØ5.5 mm coaxial power plug
  • Certificaciones
  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtecciónIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Especificación

Especificación
Cámara
  • Sensor de imagen1/2.7" Progressive Scan CMOS
  • Iluminación mínimaColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Velocidad de obturación1/3 s to 1/100, 000 s
  • Obturador lentoYes
  • Wide dynamic rangeDigital WDR
  • Día y NocheIR cut filter
  • Ajuste de ánguloPan: 0° to 355°, tilt: 0° to 75°
Lente
  • Focal Length & FOV2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
  • Montura del lenteM12
  • EnfoqueFixed
  • AperturaF2.0
Iluminador
  • IR Wavelength850 nm
  • Rango IRUp to 30 m
Vídeo
  • Max. Resolución1920 × 1080
  • Main stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Compresión de videoMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
  • Vídeo bitrate32 Kbps to 8 Mbps
  • Tipo H.264Baseline Profile/Main Profile/High Profile
  • Tipo H.265Main Profile
  • H.264 +Main Stream supports
  • H.265 +Main Stream supports
  • Región de interés (ROI)1 fixed region for main stream
Red
  • ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Vista en vivo simultáneaUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • Usuario/operadorUp to 32 users. 3 levels: administrator, operator and user
  • ClienteiVMS-4200, Hik-Connect
  • Navegador webPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Imagen
  • Configuración de imagenSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Interruptor día/nocheDay, Night, Auto, Schedule
  • Mejora de la imagenBLC, 3D DNR
Interfaz
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Evento
  • Evento BásicoMotion detection, video tampering alarm, exception
General
  • Método de enlaceUpload to FTP, notify surveillance center, send email
  • Material de la cámaraMetal & Plastic
  • Dimensión de la cámaraØ111 mm × 82.4 mm (Ø4.4" × 3.2")
  • Dimensión del paquete134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • Peso de la cámaraApprox. 410 g (0.9 lb.)
  • Con peso del paqueteApprox. 610 g (1.3 lb.)
  • Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Idioma del cliente webEnglish, Ukrainian
  • Función generalAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Versión de firmwareV5.5.120
  • Power Consumption and Current12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
  • Fuente de alimentación12 VDC ± 25% PoE: 802.3af, Class 3
  • Interfaz de energíaØ5.5 mm coaxial power plug
Certificaciones
  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtecciónIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
