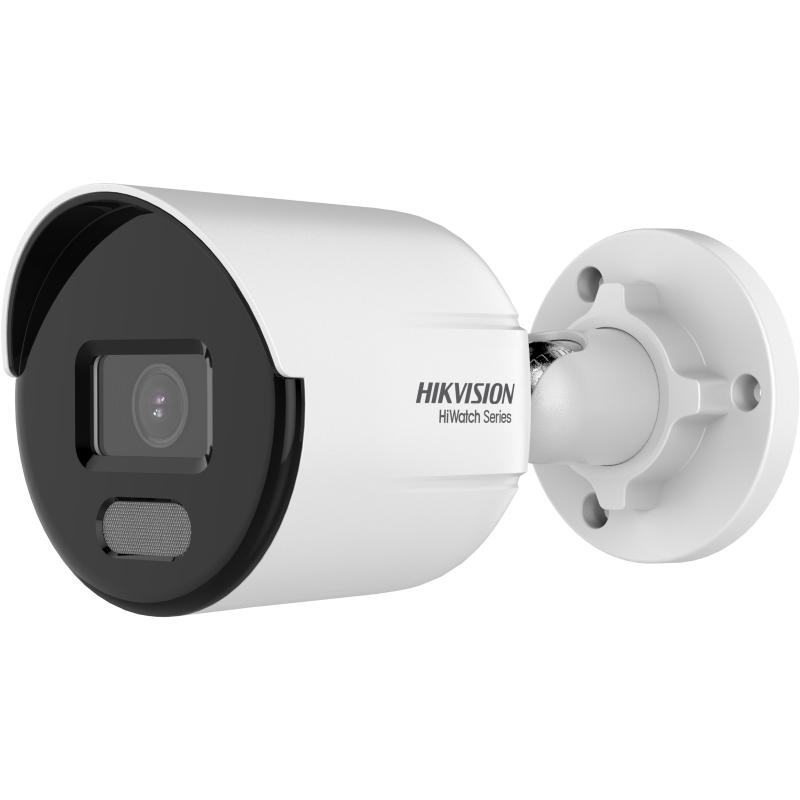

4 MP ColorVu MD 2.0 Fixed Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • 24/7 colorful imaging
  • Support Human and Vehicle Detection
  • Water and dust resistant (IP67)
  • Efficient H.265+ compression technology

View Less
View more
Data Sheet
Sales Inquiry

Available models:

HWI-B149HA(2.8mm)(HiWatchSTD)
HWI-B149HA(4mm)(HiWatchSTD)
HWI-B149HA
Data Sheet

Especificación

  • Cámara
  • Sensor de imagen 1/3" Progressive Scan CMOS
  • Max. Resolución 2560 × 1440
  • Día y Noche 24/7 color imaging
  • Iluminación mínima Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
  • Tiempo de obturación 1/3 s to 1/100,000 s
  • Ajuste de ángulo Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lente
  • Lente Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV 2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113° 4 mm, horizontal FOV: 75°, vertical FOV: 40°, diagonal FOV: 89°
  • Montura del lente M12
  • Iris Type Fixed
  • Apertura F1.0
  • Depth of Field 2.8 mm: 2 m to ∞ 4 mm: 2.7 m to ∞
  • DORI
  • DORI 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m
  • Iluminador
  • Tipo de luz suplementaria White Light
  • Rango de luz suplementaria Up to 30 m
  • Luz de suplemento inteligente Yes
  • Vídeo
  • Main stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
  • Sub-stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
  • Compresión de video Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
  • Vídeo bitrate 32 Kbps to 8 Mbps
  • Tipo H.264 Baseline Profile, Main Profile, High Profile
  • Tipo H.265 Main Profile
  • Bit Rate Control CBR,VBR
  • Región de interés (ROI) 1 fixed region(s) for main stream
  • Red
  • Protocolos TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
  • Vista en vivo simultánea Up to 6 channels
  • API Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
  • Seguridad Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user
  • Cliente iVMS-4200, Hik-Connect
  • Navegador web Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
  • Imagen
  • Configuración de imagen Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Interruptor día/noche Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR) 120 dB
  • SNR ≥ 52 dB
  • Mejora de la imagen BLC, HLC, 3D DNR
  • Máscara de privacidad 4 programmable polygon privacy masks
  • Interfaz
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Evento
  • Evento Básico Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • Linkage Upload to FTP,send email,notify surveillance center,trigger capture
  • General
  • alimentación 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: IEEE 802.3af, Class 3, max. 6.5 W
  • Material Aluminum alloy body
  • Dimensión Ø76.6 mm × 164.4 mm (Ø3" × 6.5")
  • Dimensión del paquete 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
  • Approx. 420 g (0.9 lb.)
  • Con peso del paquete Approx. 630 g (1.4 lb.)
  • Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Idioma English, Ukrainian
  • Función general Heartbeat, anti-banding, mirror, password protection, password reset via email
  • Certificaciones
  • EMC CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014
  • Seguridad CE-LVD: EN 62368-1:2014/A11:2017
  • Ambiente CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
  • Protección IP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Cámara
Sensor de imagen
1/3" Progressive Scan CMOS
Max. Resolución
2560 × 1440
Día y Noche
24/7 color imaging
Iluminación mínima
Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
Tiempo de obturación
1/3 s to 1/100,000 s
Ajuste de ángulo
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lente
Lente
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113° 4 mm, horizontal FOV: 75°, vertical FOV: 40°, diagonal FOV: 89°
Montura del lente
M12
Iris Type
Fixed
Apertura
F1.0
Depth of Field
2.8 mm: 2 m to ∞ 4 mm: 2.7 m to ∞
DORI
DORI
2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m
Iluminador
Tipo de luz suplementaria
White Light
Rango de luz suplementaria
Up to 30 m
Luz de suplemento inteligente
Yes
Vídeo
Main stream
50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Sub-stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Compresión de video
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate
32 Kbps to 8 Mbps
Tipo H.264
Baseline Profile, Main Profile, High Profile
Tipo H.265
Main Profile
Bit Rate Control
CBR,VBR
Región de interés (ROI)
1 fixed region(s) for main stream
Red
Protocolos
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Vista en vivo simultánea
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
Seguridad
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Usuario/operador
Up to 32 users 3 user levels: administrator, operator, and user
Cliente
iVMS-4200, Hik-Connect
Navegador web
Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
Imagen
Configuración de imagen
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Interruptor día/noche
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Mejora de la imagen
BLC, HLC, 3D DNR
Máscara de privacidad
4 programmable polygon privacy masks
Interfaz
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Evento
Evento Básico
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage
Upload to FTP,send email,notify surveillance center,trigger capture
General
alimentación
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material
Aluminum alloy body
Dimensión
Ø76.6 mm × 164.4 mm (Ø3" × 6.5")
Dimensión del paquete
234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Approx. 420 g (0.9 lb.)
Con peso del paquete
Approx. 630 g (1.4 lb.)
Condiciones de almacenaje
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Idioma
English, Ukrainian
Función general
Heartbeat, anti-banding, mirror, password protection, password reset via email
Certificaciones
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014
Seguridad
CE-LVD: EN 62368-1:2014/A11:2017
Ambiente
CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
Protección
IP67: IEC 60529-2013
