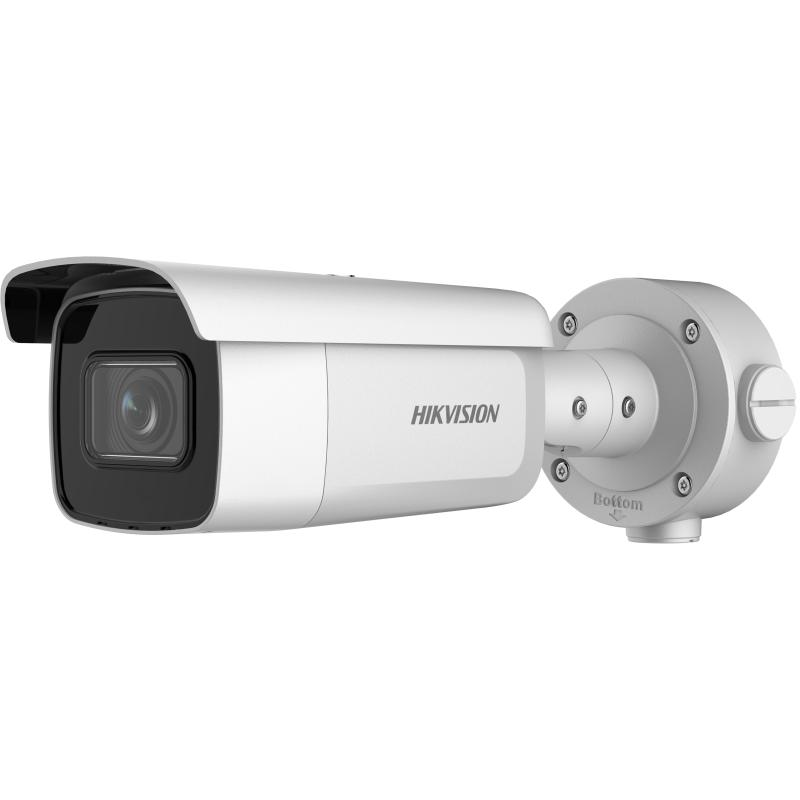

4MP ANPR Motorized Varifocal Bullet Network Camera

High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong backlight due to 120 dB true WDR technology
Efficient H.265+ compression technology
License Plate Recognition
Support Wiegand(26 bit & 34 bit)
3D DNR technology delivers clean and sharp images
Water and dust resistant (IP67) and vandal-resistant (IK10)

View Less

Data Sheet

Available models:

DS-2CD3646G2/P-IZS(2.8-12mm)

DS-2CD3646G2/P-IZS

Especificación
Resources
Accesorios

Data Sheet

Cámara
Sensor de imagen1/2.7" Progressive Scan CMOS
Max. Resolución2688 × 1520
Iluminación mínima0.003 Lux @ (F1.4, AGC ON), 0 Lux with IR
Tiempo de obturación1/3 s to 1/100,000 s
Ajuste de ánguloPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lente
Focal Length & FOV2.8 to 12 mm, horizontal FOV 107.6° to 30.3°, vertical FOV 56° to 17.1°, diagonal FOV 130.9° to 34.8°
Montura del lenteØ14
AperturaF1.4

DORI
DORID: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m

Iluminador
Rango de luz suplementariaUp to 60 m Under road traffic mode: up to 8 m
Tipo de luz suplementariaIR
Luz de suplemento inteligenteYes
IR Wavelength850 nm

Vídeo
Main stream50 Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-stream50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
Fourth Stream50 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) *Fourth stream is supported under certain settings.
Compresión de videoMain stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Fourth stream is supported under certain settings.
Vídeo bitrate32 Kbps to 8 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Bit Rate ControlCBR/VBR
Codificación de video escalable (SVC)H.265 and H.264 support
Región de interés (ROI)5 fixed regions for main stream and sub-stream
Recorte objetivoYes

Red
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Vista en vivo simultáneaUp to 6 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, ISUP
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
SeguridadPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface
Almacenamiento en redNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClienteiVMS-4200, Hik-Connect, Hik-Central
Navegador webPlug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Imagen
Interruptor de parámetros de imagenYes
Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interruptor día/nocheDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
Mejora de la imagenBLC, HLC, 3D DNR

Interfaz
Salida de Vídeo1 Vp-p Composite Output (75Ω/CVBS)
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Alarma1 input, 1 output (max. 24 VDC, 1 A; 24 VAC, 1 A)
Reset KeyYes
Wiegand1 wiegand (26 bit & 34 bit)

Evento
Evento BásicoMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Evento inteligenteUnattended baggage detection, object removal detection, scene change detection
LinkageUpload to FTP/NAS/memory card, send email, notify surveillance center, trigger recording, trigger capture

Deep Learning Function
Captura de la caraYes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Tráfico por carretera y detección de vehículosSupports vehicle detection with speed ≤ 40 km; Supports vehicle detection (only in single lane entrance & exit scenario); Supports two license plate recognition modes: License Plate & Vehichle and Vehicle Priority; Blocklist and allowlist: up to 10, 000 records; Captures vehicle that has no license plate; Supports three wigand protocols: CardID 26 bit, SHA-1 26 bit, and Hik 34 bit

General
alimentación12 VDC ± 25%, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug PoE: IEEE 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
MaterialAluminum alloy body
DimensiónØ105 mm × 340.9 mm (Ø4.2" × 13.5")
Dimensión del paquete385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Approx. 1300 g (2.9 lb.)
Con peso del paqueteApprox. 2100 g (4.6 lb.)
Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Función generalAnti-banding, heartbeat, mirror, privacy mask, flash log, password reset via e-mail, pixel counter
Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Certificaciones
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC 60950-1)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtecciónIP67 (IEC 60529-2013)

Cámara

Sensor de imagen

1/2.7" Progressive Scan CMOS

Max. Resolución

2688 × 1520

Iluminación mínima

0.003 Lux @ (F1.4, AGC ON), 0 Lux with IR

Tiempo de obturación

1/3 s to 1/100,000 s

Ajuste de ángulo

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lente

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 107.6° to 30.3°, vertical FOV 56° to 17.1°, diagonal FOV 130.9° to 34.8°

Montura del lente

Ø14

Apertura

F1.4

DORI

D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m

Iluminador

Rango de luz suplementaria

Up to 60 m Under road traffic mode: up to 8 m

Tipo de luz suplementaria

Luz de suplemento inteligente

Yes

IR Wavelength

850 nm

Vídeo

Main stream

50 Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

Fourth Stream

50 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) *Fourth stream is supported under certain settings.

Compresión de video

Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Fourth stream is supported under certain settings.

Vídeo bitrate

32 Kbps to 8 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Bit Rate Control

CBR/VBR

Codificación de video escalable (SVC)

H.265 and H.264 support

Región de interés (ROI)

5 fixed regions for main stream and sub-stream

Recorte objetivo

Yes

Red

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

Vista en vivo simultánea

Up to 6 channels

API

Open Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, ISUP

Usuario/operador

Up to 32 users. 3 user levels: administrator, operator and user

Seguridad

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface

Almacenamiento en red

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Cliente

iVMS-4200, Hik-Connect, Hik-Central

Navegador web

Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Imagen

Interruptor de parámetros de imagen

Yes

Configuración de imagen

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interruptor día/noche

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

Mejora de la imagen

BLC, HLC, 3D DNR

Interfaz

Salida de Vídeo

1 Vp-p Composite Output (75Ω/CVBS)

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Alarma

1 input, 1 output (max. 24 VDC, 1 A; 24 VAC, 1 A)

Reset Key

Yes

Wiegand

1 wiegand (26 bit & 34 bit)

Evento

Evento Básico

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Evento inteligente

Unattended baggage detection, object removal detection, scene change detection

Linkage

Upload to FTP/NAS/memory card, send email, notify surveillance center, trigger recording, trigger capture

Deep Learning Function

Captura de la cara

Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Tráfico por carretera y detección de vehículos

Supports vehicle detection with speed ≤ 40 km; Supports vehicle detection (only in single lane entrance & exit scenario); Supports two license plate recognition modes: License Plate & Vehichle and Vehicle Priority; Blocklist and allowlist: up to 10, 000 records; Captures vehicle that has no license plate; Supports three wigand protocols: CardID 26 bit, SHA-1 26 bit, and Hik 34 bit

General

alimentación

12 VDC ± 25%, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug PoE: IEEE 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W

Material

Aluminum alloy body

Dimensión

Ø105 mm × 340.9 mm (Ø4.2" × 13.5")

Dimensión del paquete

385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")

Approx. 1300 g (2.9 lb.)

Con peso del paquete

Approx. 2100 g (4.6 lb.)

Condiciones de almacenaje

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Función general

Anti-banding, heartbeat, mirror, privacy mask, flash log, password reset via e-mail, pixel counter

Idioma

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Certificaciones

EMC

FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
