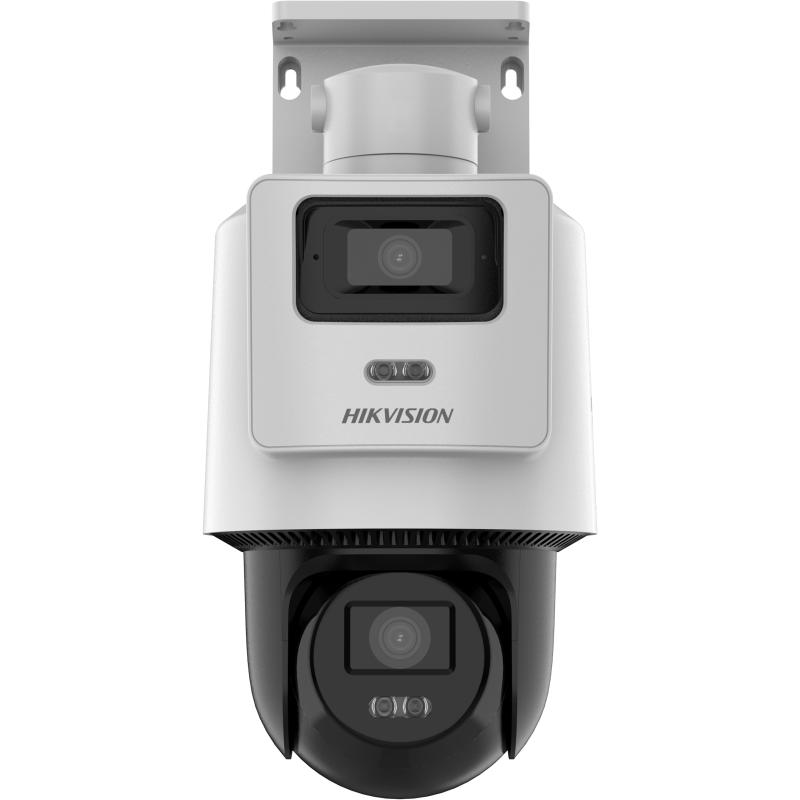

TandemVu 4MP+4MP Fixed Lens POE PT Network Camera

Name: TandemVu 4MP+4MP Fixed Lens POE PT Network Camera
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

Capture a large area and details at the same time
Support Human and Vehicle detection
Smart Hybrid Light: advanced technology with long range
Hik-Connect cloud service and app for remote management and views of devices
Built-in microphone and speaker for real-time audio security
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
Water and dust resistant (IP66)

View Less

Available models:

DS-2SE2C400MWG-E/14(2.8/8mm)

DS-2SE2C400MWG-E/14

Especificación
Resources
Accesorios

Cámara
Sensor de imagen[Bullet channel] 1/2.8" Progressive Scan CMOS [PTZ channel] 1/2.8" Progressive Scan CMOS
Iluminación mínima[Bullet channel] Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR [PTZ channel] Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 lux with IR
Velocidad de obturación1 s to 1/30,000 s
Obturador lentoYes
Día y NocheICR
Max. Resolución[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

Lente
Longitud focal[Panoramic channel] 2.8 mm, [PTZ channel] 8 mm
FOV[Panoramic channel] horizontal field of view: 94°, vertical field of view: 49°, diagonal field of view: 114°, [PTZ channel] horizontal field of view: 44°, vertical field of view: 24°, diagonal field of view: 51°
Apertura[Bullet channel] F1.6, [PTZ channel] F1.6

Iluminador
Tipo de luz suplementaria[Bullet channel] Hybrid (IR and White Light), [PTZ channel] Hybrid (IR and White Light)
Rango de luz suplementaria[Bullet channel]: up to 30 m, [PTZ channel]: up to 30 m
Luz de suplemento inteligenteYes

PTZ
Rango de movimiento (pan)[Panoramic channel] 0° to 355°, [PTZ channel] 0° to 345°
Rango de movimiento (tilt)[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] 0° to 80°
Velocidad de movimiento horizontal (pan)Pan speed: configurable from 4° to 25°/s, preset speed: 25°/s
Velocidad de vertical (tilt)Tilt speed: configurable from 4° to 20°/s, preset speed 20°/s
Preajustes300
Memoria de apagadoYes

Vídeo
Codificación de video escalable (SVC)Yes
Región de interés (ROI)1 fixed region for main stream
Main stream[Bullet channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-stream[Bullet channel] 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) [PTZ channel] 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Compresión de vídeoMain stream: H.265/H.264/Smart264/Smart265, Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 4 Mbps
Tipo H.264Baseline profile,Main profile,High profile
Tipo H.265Main profile

Audio
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Velocidad de bits de audio64 Kbps(G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)/16 to 64Kbps(AAC-LC)/8 to 160 Kbps(MP3)/8 to 48 Kbps(PCM)
Frecuencia de muestreo de audio8 kHz/16 kHz
Filtro de ruido ambientalYes

Red
ProtocolosTCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, Qos, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1x, IPv4, IPv6, DDNS, ICMP, UPnP
APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
SeguridadAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Vista en vivo simultáneaUp to 6 channels
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator, and user
ClienteiVMS-4200,Hik-Connect,Hik Partner Pro
Navegador webChrome 31 to 44, Firefox 30 to 51, Safari 8.0+

Imagen
Configuración de imagenSaturation, brightness, contrast, sharpness
Wide Dynamic Range (WDR)Digital WDR
SNR≥ 52 dB
Interruptor día/nocheDay,night,auto,schedule
Mejora de la imagenBLC,HLC,3D DNR
Máscara de privacidad[Bullet channel] 4 programmable polygon privacy masks, [PTZ channel] 4 programmable polygon privacy masks
Interruptor de parámetros de imagenYes

Interfaz
Micrófono incorporado1 built-in microphone
Altavoz incorporado1 built-in speaker
Ethernet Interface1 RJ45 10 M/100M self-adaptive Ethernet port
Almacenamiento a bordoBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
ReiniciarYes

Evento
Evento BásicoMotion detection (support alarm triggering by specified target types (human and vehicle)), exception
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,audible warning

General
MaterialPC
Función generalMirror,password protection,watermark,IP address filter
alimentación12 VDC ± 25%, 1.5 A, max. 18 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 21.5 W
Operating Condition-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
Dimensión134 mm × 213.5 mm × 291.7 mm (5.3" × 8.4" × 11.5")
Weight: 1000 g (2.2 lb.) With Package Weight: 1500 g (3.3 lb.)

Certificaciones
ProtecciónIP66 Standard, Surge Protection and Voltage Transient Protection

Cámara

Sensor de imagen

[Bullet channel] 1/2.8" Progressive Scan CMOS [PTZ channel] 1/2.8" Progressive Scan CMOS

Iluminación mínima

[Bullet channel] Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR [PTZ channel] Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 lux with IR

Velocidad de obturación

1 s to 1/30,000 s

Obturador lento

Yes

Día y Noche

ICR

Max. Resolución

[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

Lente

Longitud focal

[Panoramic channel] 2.8 mm, [PTZ channel] 8 mm

FOV

[Panoramic channel] horizontal field of view: 94°, vertical field of view: 49°, diagonal field of view: 114°, [PTZ channel] horizontal field of view: 44°, vertical field of view: 24°, diagonal field of view: 51°

Apertura

[Bullet channel] F1.6, [PTZ channel] F1.6

Iluminador

Tipo de luz suplementaria

[Bullet channel] Hybrid (IR and White Light), [PTZ channel] Hybrid (IR and White Light)

Rango de luz suplementaria

[Bullet channel]: up to 30 m, [PTZ channel]: up to 30 m

Luz de suplemento inteligente

Yes

PTZ

Rango de movimiento (pan)

[Panoramic channel] 0° to 355°, [PTZ channel] 0° to 345°

Rango de movimiento (tilt)

[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] 0° to 80°

Velocidad de movimiento horizontal (pan)

Pan speed: configurable from 4° to 25°/s, preset speed: 25°/s

Velocidad de vertical (tilt)

Tilt speed: configurable from 4° to 20°/s, preset speed 20°/s

Preajustes

300

Memoria de apagado

Yes

Vídeo

Codificación de video escalable (SVC)

Yes

Región de interés (ROI)

1 fixed region for main stream

Main stream

[Bullet channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-stream

[Bullet channel] 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) [PTZ channel] 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Compresión de vídeo

Main stream: H.265/H.264/Smart264/Smart265, Sub-stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 4 Mbps

Tipo H.264

Baseline profile,Main profile,High profile

Tipo H.265

Main profile

Audio

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Velocidad de bits de audio

64 Kbps(G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)/16 to 64Kbps(AAC-LC)/8 to 160 Kbps(MP3)/8 to 48 Kbps(PCM)

Frecuencia de muestreo de audio

8 kHz/16 kHz

Filtro de ruido ambiental

Yes

Red

Protocolos

TCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, Qos, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1x, IPv4, IPv6, DDNS, ICMP, UPnP

API

ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

Seguridad

Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter

Vista en vivo simultánea

Up to 6 channels

Usuario/operador

Up to 32 users. 3 user levels: administrator, operator, and user

Cliente

iVMS-4200,Hik-Connect,Hik Partner Pro

Navegador web

Chrome 31 to 44, Firefox 30 to 51, Safari 8.0+

Imagen

Configuración de imagen

Saturation, brightness, contrast, sharpness

Wide Dynamic Range (WDR)

Digital WDR

SNR

≥ 52 dB

Interruptor día/noche

Day,night,auto,schedule

Mejora de la imagen

BLC,HLC,3D DNR

Máscara de privacidad

[Bullet channel] 4 programmable polygon privacy masks, [PTZ channel] 4 programmable polygon privacy masks

Interruptor de parámetros de imagen

Yes

Interfaz

Micrófono incorporado

1 built-in microphone

Altavoz incorporado

1 built-in speaker

Ethernet Interface

1 RJ45 10 M/100M self-adaptive Ethernet port

Almacenamiento a bordo

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Reiniciar

Yes

Evento

Evento Básico

Motion detection (support alarm triggering by specified target types (human and vehicle)), exception

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,audible warning

General

Material

Función general

Mirror,password protection,watermark,IP address filter

alimentación

12 VDC ± 25%, 1.5 A, max. 18 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 21.5 W

Operating Condition

-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)

Dimensión

134 mm × 213.5 mm × 291.7 mm (5.3" × 8.4" × 11.5")

Weight: 1000 g (2.2 lb.) With Package Weight: 1500 g (3.3 lb.)

Certificaciones

Protección

IP66 Standard, Surge Protection and Voltage Transient Protection
