Oversea UPS

Built-in AVR
Super fast charging
Wide input voltage range
Overload protection
Short circuit protection
Surge protection

View Less

Available models:

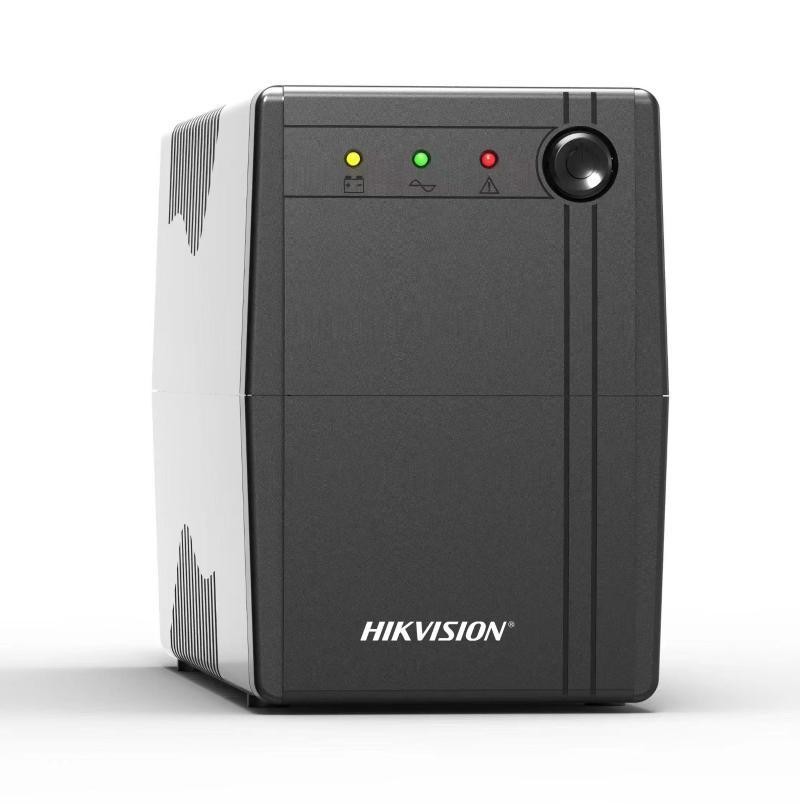

DS-UPS1000

DS-UPS1000#MENA

Especificación
Resources
Accesorios

alimentación
UPS Capacity 1000 VA / 600 W

Entrada
Input Voltage Range 140 VAC to 290 VAC
Input Frequency50/60 Hz self-adaptive
Plug TypeSchuko

Salida
Rango de voltaje de salida210 VAC to 235 VAC
Output Frequency50/60 Hz ± 0.5 Hz self-adaptive
Transfer Time≤ 10 ms
WaveformPWM
Outlet TypeSchuko
Outlet Number2

batería
Tipo de batería12 V/9 Ah, lead-acid battery
Recharge Time4-6 hours recover to 90% capacity
Typical Backup TimeRun time at 60w: 60 min Run time at 150w: 15 min Run time at 300w: 2 min

Interfaz
Communicate PortsNo

Protección
Full ProtectionSurge protection, Overload protection, Discharge protection, Short circuit protection

indicador
pantallaLED indicator Working Mode (AC Mode): Solid green Charging Mode (DC Mode): Solid red Overloading Mode: Flashing yellow
AlarmaCharging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding

General
Temperatura de funcionamiento0 °C to 40 °C (32 °F to 104 °F）
Condiciones de humedad30% to 90% (non-condensing)
Dimensión274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")
Approx. 5.4 kg (11.9 lb)

alimentación

UPS Capacity

1000 VA / 600 W

Entrada

Input Voltage Range

140 VAC to 290 VAC

Input Frequency

50/60 Hz self-adaptive

Plug Type

Schuko

Salida

Rango de voltaje de salida

210 VAC to 235 VAC

Output Frequency

50/60 Hz ± 0.5 Hz self-adaptive

Transfer Time

≤ 10 ms

Waveform

PWM

Outlet Type

Schuko

Outlet Number

batería

Tipo de batería

12 V/9 Ah, lead-acid battery

Recharge Time

4-6 hours recover to 90% capacity

Typical Backup Time

Run time at 60w: 60 min Run time at 150w: 15 min Run time at 300w: 2 min

Interfaz

Communicate Ports

Protección

Full Protection

Surge protection, Overload protection, Discharge protection, Short circuit protection

indicador

pantalla

LED indicator Working Mode (AC Mode): Solid green Charging Mode (DC Mode): Solid red Overloading Mode: Flashing yellow

Alarma

Charging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding

General

Temperatura de funcionamiento

0 °C to 40 °C (32 °F to 104 °F）

Condiciones de humedad

30% to 90% (non-condensing)

Dimensión

274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")

Approx. 5.4 kg (11.9 lb)
