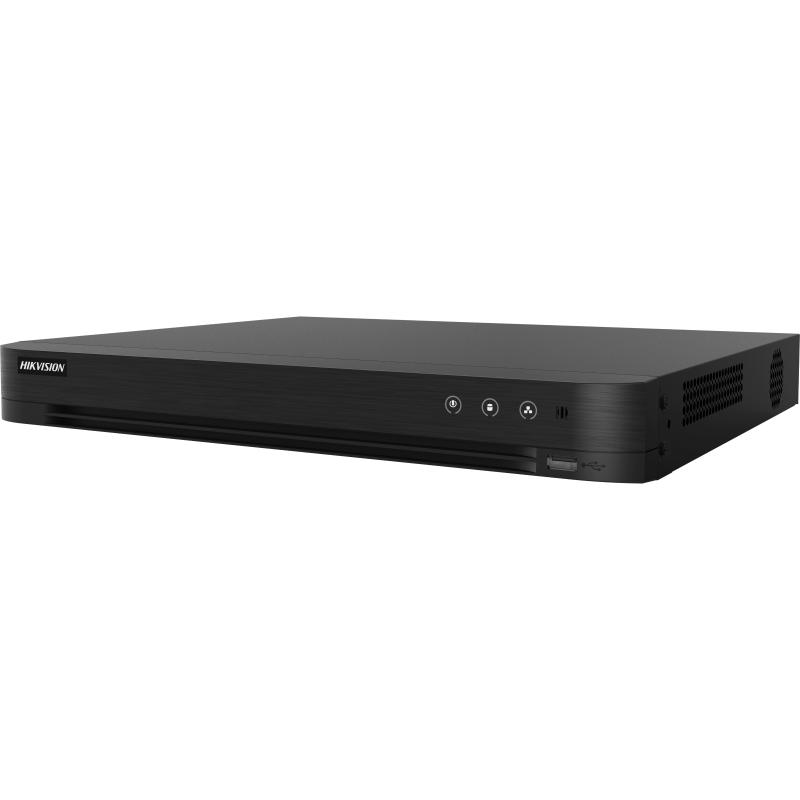

8-ch 5MP 1U H.265 AcuSense POC DVR

Transmits both HDTVI video and power over the same coaxial cable
4 channels and 1 HDD 1U DVR
Efficient H.265 pro+ compression technology
Encoding ability up to 8MP @8 fps ，5 MP @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 8 network cameras can be connected

View Less

Data Sheet

Available models:

iDS-7204HTHI-M1/P(C)4A+8/4ALM

iDS-7204HTHI-M1/P#UK

Especificación
Resources
Accesorios

Data Sheet

Detección de movimiento 2.0
Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Protección perimetral
Line Crossing Detection/Intrusion DetectionUp to 4-ch

Video and Audio
Entrada de vídeo IP4-ch (up to 8-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Entrada de video analógico4-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
PoC Camera InputSupport Hikvision PoC camera
HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
CVBS InputPAL/NTSC
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Reproducción síncrona4-ch
HDTVI Input8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
AHD Input5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
HDCVI Input4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
Video Output ModeHDMI/VGA simultaneous output
Salida de audio1-ch, RCA (Linear, 1 KΩ)
Entrada de Audio4-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Recording
Compresión de vídeoH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Resolución de codificaciónMain stream: 8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Vídeo bitrate32 Kbps to 16 Mbps
Doble flujoSupport
Stream TypeVideo, Video & Audio
Compresión de audioG.711u
Audio Bitrate64 Kbps

Red
Total Bandwidth96 Mbps
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Protocolo de redTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Conexión remota32
Interfaz de red1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface
SATA1 SATA interfaces
CapacidadUp to 10 TB capacity for each disk
Interfaz de serieRS-485 (half-duplex)
Interfaz USBFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarma E/S8/4

General
Fuente de alimentación48 VDC, 2.5 A
Consumo≤ 15 W (without HDD)
Temperatura de trabajo-10 °C to +55 °C (+14 °F to +131 °F)
Condiciones de Humedad10% to 90%
Dimensión (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
≤ 3.4 kg (without HDD, 7.5 lb.)

Detección de movimiento 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Protección perimetral

Line Crossing Detection/Intrusion Detection

Up to 4-ch

Video and Audio

Entrada de vídeo IP

4-ch (up to 8-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

Entrada de video analógico

4-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

PoC Camera Input

Support Hikvision PoC camera

HDMI Output

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

CVBS Input

PAL/NTSC

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Reproducción síncrona

4-ch

HDTVI Input

8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

AHD Input

5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDCVI Input

4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

Video Output Mode

HDMI/VGA simultaneous output

Salida de audio

1-ch, RCA (Linear, 1 KΩ)

Entrada de Audio

4-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Recording

Compresión de vídeo

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Resolución de codificación

Main stream: 8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Vídeo bitrate

32 Kbps to 16 Mbps

Doble flujo

Support

Stream Type

Video, Video & Audio

Compresión de audio

G.711u

Audio Bitrate

64 Kbps

Red

Total Bandwidth

96 Mbps

Wi-Fi

Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Protocolo de red

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Conexión remota

Interfaz de red

1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

1 SATA interfaces

Capacidad

Up to 10 TB capacity for each disk

Interfaz de serie

RS-485 (half-duplex)

Interfaz USB

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Alarma E/S

8/4

General

Fuente de alimentación

48 VDC, 2.5 A

Consumo

≤ 15 W (without HDD)

Temperatura de trabajo

-10 °C to +55 °C (+14 °F to +131 °F)

Condiciones de Humedad

10% to 90%

Dimensión (W × D × H)

380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)

≤ 3.4 kg (without HDD, 7.5 lb.)

Detección de movimiento 2.0

Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Protección perimetral

Line Crossing Detection/Intrusion DetectionUp to 4-ch

Video and Audio

Entrada de vídeo IP4-ch (up to 8-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Entrada de video analógico4-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
PoC Camera InputSupport Hikvision PoC camera
HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
CVBS InputPAL/NTSC
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Reproducción síncrona4-ch
HDTVI Input8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
AHD Input5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
HDCVI Input4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
Video Output ModeHDMI/VGA simultaneous output
Salida de audio1-ch, RCA (Linear, 1 KΩ)
Entrada de Audio4-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Recording

Compresión de vídeoH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Resolución de codificaciónMain stream: 8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Vídeo bitrate32 Kbps to 16 Mbps
Doble flujoSupport
Stream TypeVideo, Video & Audio
Compresión de audioG.711u
Audio Bitrate64 Kbps

Red

Total Bandwidth96 Mbps
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Protocolo de redTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Conexión remota32
Interfaz de red1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
