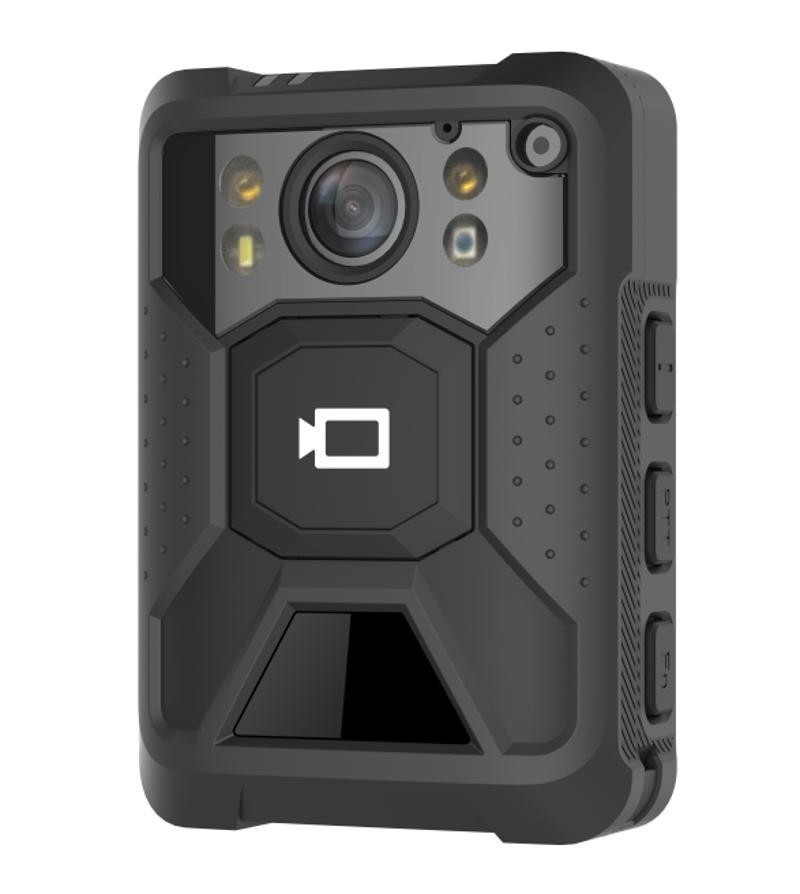

Android 4G Big Button Body Camera

2K recording.
The recorded videos can be uploaded to the central video platform via 4G wireless communication.
Supports IR night vision. Even in the dark scene, the facial features of the persons in the scene can be recognized clearly.
Tri-proof design to support all-weather filed operation.
Built-in battery with large capacity, supporting longer working hour.
Small size, light weight, and convenient to carry.
Large recording button for convenient operation.

View Less

Data Sheet

Available models:

DS-MCW407/32G/GLE(C)

DS-MCW407(C)

Especificación
Resources
Accesorios

Data Sheet

Cámara
Sensor de imagen 1/3" progressive scan CMOS
Max. Recording Resolution2688 × 1512
Iluminación mínimaColor: 0.11 Lux @ (F2.2, AGC ON), 0 Lux with supplement light
Día y NocheSwitch IR cut filter automatically
Zoom4x Digital
Luz blanca1 white light(s)

Lente
Longitud focal 2.4 mm fixed lens
FOVHorizontal FOV: 126°, Vertical FOV: 70°, Diagonal FOV: 144°
Apertura F2.2

Vídeo
Compresión de vídeoH.264,H.265
Formato de vídeoMP4,PS
Main stream 60 Hz: 30 fps (2688 ×1512, 1920 × 1080, 1280 × 720, 720 × 576)
Sub-stream30 fps(1920 × 1080, 1280 × 720, 720 × 576)
Pre-record & Post-recordPre-record: 60/10/5/3 s, Post-record: 60/10/5/3 s

Audio
Audio Compression for Video RecordingG722,AAC
Audio Compression for Audio RecordingPCM
Audio Compression for Group IntercomG711.A,G711.U,G722
Velocidad de bits de audioG722(16 kbps) ,AAC(dynamic),PCM(256 kbps),G711.A(64 kbps) ,G711.U(64 kbps)

Imagen
Formato de imagenJPEG

Pantalla
Resolución de pantalla320 × 240
Tamaño2.0"
Pantalla táctilSupported

Almacenamiento
RAM2 GB
ROM32 GB by default, 64/128/256 GB optional

IR
Rango IRUp to 10 m
IR Wavelength850 nm

Red inalámbrica
BluetoothBT4.2
Wi-Fi Protocol 802.11 a/b/g/n/ac
Wi-Fi Frequency Band2.412 to 2.472 GHz,5.15 to 5.25 GHz,5.725 to 5.875 GHz
Cellular NetworkOnly available for models with /GLE:, GSM: 850/900/1800/1900,WCDMA: B1/B8,FDD -LTE: B1/B3/B4/B7/B20/B28,TDD -LTE: B34/B38/B39/B40/B41
Positioning ModeGPS

Red
ProtocoloHTTPS, RTSP, NTP, FTP
APIONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP

Interfaz
indicador2 indicator(s) for charging/working/recording/exception
BotónPower,Video recording,Audio recording,Picture capture,PTT,SOS,Fn
Tipo de audio1 built-in mic(s),1 speaker(s)
SIM CardOnly available for models with /GLE /5G:, 1 Nano-SIM card(s)
Interfaz de cargaType-C, Pogo Pin
USB1 USB 2.0 port(s)

General
Operating Condition-20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
alimentación5 VDC, 2.0 A, max. 10 W
Dimensiones82.6 mm × 58 mm × 29 mm (3.3" × 2.3" × 1.1")
165 g (without mounting) (0.4 lb.)
Sistema operativoAndroid 9.0
ClienteHikCentral Pro,HikCentral Master
MicrófonoSupported
Altavoz1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 87 dB (10 cm)

batería
Tipo de bateríaLithium-ion battery, integral
Capacidad3220 mAh
Tiempo de carga≤ 4 h
Battery DurationUp to 12 h in 720p resolution¹

Certificaciones
RFEN 300 328 V2.1.1 (BT or 2.4G),EN 62311:2008 (BT or 2.4G),EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013,EN 50130-4:2011+A1:2014)
EMCCE-EMC: EN 55032: 2015,EN 61000-3-2: 2019,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014
SeguridadCB: IEC 62368-1: 2014+A11,IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014/A11: 2017,EN IEC 62368-1:2020+A11:2020,CE-LVD: EN 62368-1: 2014/A11: 2017
AmbienteCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
ProtecciónIP68: IEC 60529-2013,MIL STD 810G

Cámara

Sensor de imagen

1/3" progressive scan CMOS

Max. Recording Resolution

2688 × 1512

Iluminación mínima

Color: 0.11 Lux @ (F2.2, AGC ON), 0 Lux with supplement light

Día y Noche

Switch IR cut filter automatically

Zoom

4x Digital

Luz blanca

1 white light(s)

Lente

Longitud focal

2.4 mm fixed lens

FOV

Horizontal FOV: 126°, Vertical FOV: 70°, Diagonal FOV: 144°

Apertura

F2.2

Vídeo

Compresión de vídeo

H.264,H.265

Formato de vídeo

MP4,PS

Main stream

60 Hz: 30 fps (2688 ×1512, 1920 × 1080, 1280 × 720, 720 × 576)

Sub-stream

30 fps(1920 × 1080, 1280 × 720, 720 × 576)

Pre-record & Post-record

Pre-record: 60/10/5/3 s, Post-record: 60/10/5/3 s

Audio

Audio Compression for Video Recording

G722,AAC

Audio Compression for Audio Recording

PCM

Audio Compression for Group Intercom

G711.A,G711.U,G722

Velocidad de bits de audio

G722(16 kbps) ,AAC(dynamic),PCM(256 kbps),G711.A(64 kbps) ,G711.U(64 kbps)

Imagen

Formato de imagen

JPEG

Pantalla

Resolución de pantalla

320 × 240

Tamaño

2.0"

Pantalla táctil

Supported

Almacenamiento

RAM

2 GB

ROM

32 GB by default, 64/128/256 GB optional

Rango IR

Up to 10 m

IR Wavelength

850 nm

Red inalámbrica

Bluetooth

BT4.2

Wi-Fi Protocol

802.11 a/b/g/n/ac

Wi-Fi Frequency Band

2.412 to 2.472 GHz,5.15 to 5.25 GHz,5.725 to 5.875 GHz

Cellular Network

Only available for models with /GLE:, GSM: 850/900/1800/1900,WCDMA: B1/B8,FDD -LTE: B1/B3/B4/B7/B20/B28,TDD -LTE: B34/B38/B39/B40/B41

Positioning Mode

GPS

Red

Protocolo

HTTPS, RTSP, NTP, FTP

API

ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP

Interfaz

indicador

2 indicator(s) for charging/working/recording/exception

Botón

Power,Video recording,Audio recording,Picture capture,PTT,SOS,Fn

Tipo de audio

1 built-in mic(s),1 speaker(s)

SIM Card

Only available for models with /GLE /5G:, 1 Nano-SIM card(s)

Interfaz de carga

Type-C, Pogo Pin

USB

1 USB 2.0 port(s)

General

Operating Condition

-20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)

alimentación

5 VDC, 2.0 A, max. 10 W

Dimensiones

82.6 mm × 58 mm × 29 mm (3.3" × 2.3" × 1.1")

165 g (without mounting) (0.4 lb.)

Sistema operativo

Android 9.0

Cliente

HikCentral Pro,HikCentral Master

Micrófono

Supported

Altavoz

1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 87 dB (10 cm)

batería

Tipo de batería

Lithium-ion battery, integral

Capacidad

3220 mAh

Tiempo de carga

≤ 4 h

Battery Duration

Up to 12 h in 720p resolution¹

Certificaciones

EN 300 328 V2.1.1 (BT or 2.4G),EN 62311:2008 (BT or 2.4G),EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013,EN 50130-4:2011+A1:2014)

EMC

CE-EMC: EN 55032: 2015,EN 61000-3-2: 2019,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014

Seguridad

CB: IEC 62368-1: 2014+A11,IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014/A11: 2017,EN IEC 62368-1:2020+A11:2020,CE-LVD: EN 62368-1: 2014/A11: 2017

Ambiente

CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006

Protección

IP68: IEC 60529-2013,MIL STD 810G
