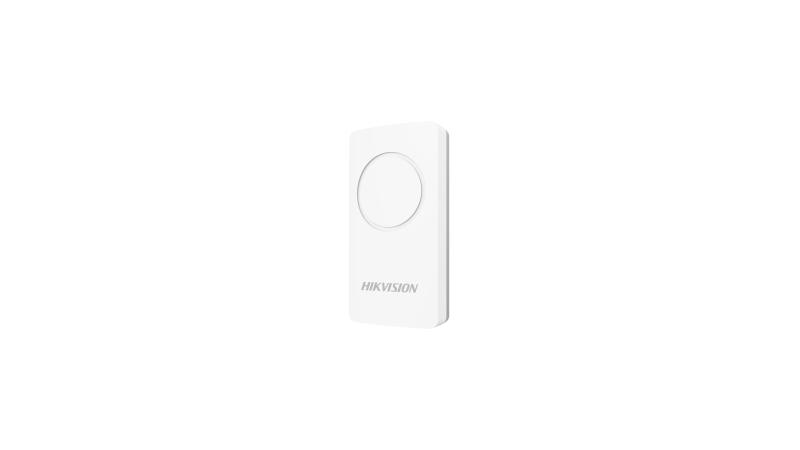

Wireless displacement detector

  • RF 433 MHz
  • Offers reliable protection utilizing two-way wireless technology
  • Tamper alarm, displacement alarm
  • Water resistant (IP66)
  • Communicates up to 500 m (in open areas)
View Less
View more
Data Sheet
Sales Inquiry
DS-PD1-PM-W(433M)
Data Sheet

Especificación

  • Detection performance
  • Sensitivity adjustment2 different sensitivity levels
  • Software features
  • Tamper-ProofNC, contact rating 28 VDC，100mA
  • Hardware features
  • Salida de reléNC, contact rating 28 VDC，80mA
  • indicadorDual-color LED indicator
  • Electrical characteristics
  • Fuente de alimentación9-16V DC
  • Battery life span2 years
  • General
  • Operation temperature-10℃ ~ +55℃
  • Dimension(WxHxD)67 .0 mm × 92 .0 mm × 26.4mm
  • 100g
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Detection performance
Sensitivity adjustment
2 different sensitivity levels
Software features
Tamper-Proof
NC, contact rating 28 VDC，100mA
Hardware features
Salida de relé
NC, contact rating 28 VDC，80mA
indicador
Dual-color LED indicator
Electrical characteristics
Fuente de alimentación
9-16V DC
Battery life span
2 years
General
Operation temperature
-10℃ ~ +55℃
Dimension(WxHxD)
67 .0 mm × 92 .0 mm × 26.4mm
100g
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Especificación
Detection performance
  • Sensitivity adjustment2 different sensitivity levels
Software features
  • Tamper-ProofNC, contact rating 28 VDC，100mA
Hardware features
  • Salida de reléNC, contact rating 28 VDC，80mA
  • indicadorDual-color LED indicator
Electrical characteristics
  • Fuente de alimentación9-16V DC
  • Battery life span2 years
General
  • Operation temperature-10℃ ~ +55℃
  • Dimension(WxHxD)67 .0 mm × 92 .0 mm × 26.4mm
  • 100g
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
