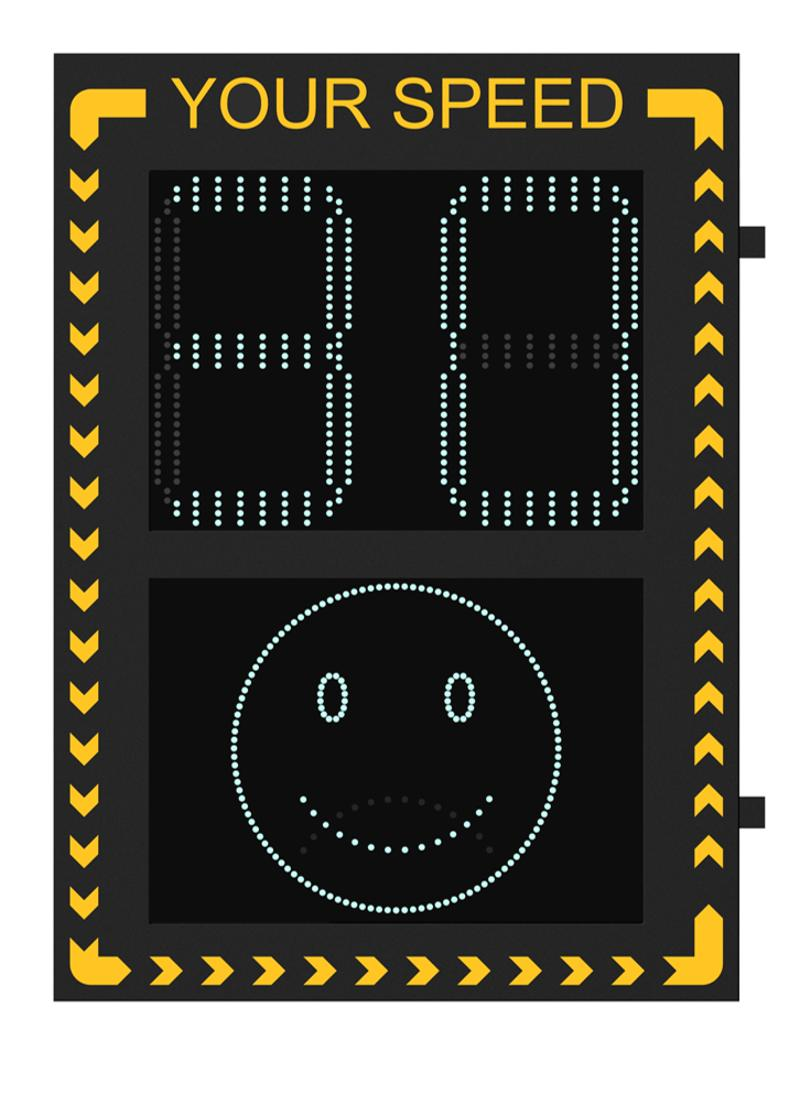

Radar-Assisted Speed LED Display

  • Adopts high-frequency band and millimeter-wave radar, supporting to work in all-weather conditions.
  • High spatial resolution and strong penetrability, free from the influences of illumination, visibility, severe weather, etc.
  • Max. 100 m detection distance and up to 64 targets can be detected.
  • Supports to install on the lane or at the sides of the lane. Easy installation and debugging.
  • Supports to set the speed threshold.
  • Supports to select the speed unit as mile or kilometer via dialing.
  • Supports to select the vehicle speed display duration among 1 to 8 s via dialing.
  • Supports distinguishing speed information by different colors: When the vehicle speed is within the speed limit, the speed value is displayed in green with a smiley face icon. When the vehicle speed overceeds the upper speed limit, the speed value is displayed in red with a sad face icon.
  • High brightness and low power LED technology.
  • The radar supports free software configuration. You can view the vehicles and debug via the software.
View Less
View more
Sales Inquiry

Available models:

YJP5474-28-2-R
YJP5474-28-2-R

Especificación

  • Radar
  • Distancia de detección20 to 100 m
  • Rango de velocidad2 to 99 km/h
  • Ángulo de detección horizontal± 22°
  • Ángulo de detección vertical± 10°
  • Detection Accuracy± 2 km/h
  • Red
  • ProtocolosSupports private protocols.
  • Interfaz
  • Ethernet Interface1 RJ45 100 M self-adaptive Ethernet port(s)
  • Warning Screen
  • LED Light BeadSmiley face icon: 90 × red beads Sad face icon: 90 × red beads Speed: 168 × red beads and 168 × green beads
  • Monotube Current≤ 20 mA
  • LED Wave LengthRed: 4500 to 7200 mcd/625 ± 5 nm Green: 6000 to 10800 mcd/506 ± 3 nm
  • Central Light Strength 150 to 400 cd
  • LED Visual Angle≥ 30°
  • LED Service Life≥ 100,000 hours
  • General
  • alimentación12 VDC, max. current 1.25 A. Average 13 W, max. 15 W.
  • MaterialGalvanized steel plate with electrostatic spraying and reflective film
  • Dimensión740 mm × 535 mm × 111 mm (29.08" × 21.03" × 4.36")
  • Weight With package: 18 ± 0.5 kg (39.7 ± 1.1) lb. Without package: 15.6 ± 0.5 kg (34.4 ± 1.1) lb.
  • Operating Condition-30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing)
  • Certificaciones
  • ProtecciónIP65
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Radar
Distancia de detección
20 to 100 m
Rango de velocidad
2 to 99 km/h
Ángulo de detección horizontal
± 22°
Ángulo de detección vertical
± 10°
Detection Accuracy
± 2 km/h
Red
Protocolos
Supports private protocols.
Interfaz
Ethernet Interface
1 RJ45 100 M self-adaptive Ethernet port(s)
Warning Screen
LED Light Bead
Smiley face icon: 90 × red beads Sad face icon: 90 × red beads Speed: 168 × red beads and 168 × green beads
Monotube Current
≤ 20 mA
LED Wave Length
Red: 4500 to 7200 mcd/625 ± 5 nm Green: 6000 to 10800 mcd/506 ± 3 nm
Central Light Strength
150 to 400 cd
LED Visual Angle
≥ 30°
LED Service Life
≥ 100,000 hours
General
alimentación
12 VDC, max. current 1.25 A. Average 13 W, max. 15 W.
Material
Galvanized steel plate with electrostatic spraying and reflective film
Dimensión
740 mm × 535 mm × 111 mm (29.08" × 21.03" × 4.36")
Weight
With package: 18 ± 0.5 kg (39.7 ± 1.1) lb. Without package: 15.6 ± 0.5 kg (34.4 ± 1.1) lb.
Operating Condition
-30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing)
Certificaciones
Protección
IP65
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Especificación
Radar
  • Distancia de detección20 to 100 m
  • Rango de velocidad2 to 99 km/h
  • Ángulo de detección horizontal± 22°
  • Ángulo de detección vertical± 10°
  • Detection Accuracy± 2 km/h
Red
  • ProtocolosSupports private protocols.
Interfaz
  • Ethernet Interface1 RJ45 100 M self-adaptive Ethernet port(s)
Warning Screen
  • LED Light BeadSmiley face icon: 90 × red beads Sad face icon: 90 × red beads Speed: 168 × red beads and 168 × green beads
  • Monotube Current≤ 20 mA
  • LED Wave LengthRed: 4500 to 7200 mcd/625 ± 5 nm Green: 6000 to 10800 mcd/506 ± 3 nm
  • Central Light Strength 150 to 400 cd
  • LED Visual Angle≥ 30°
  • LED Service Life≥ 100,000 hours
General
  • alimentación12 VDC, max. current 1.25 A. Average 13 W, max. 15 W.
  • MaterialGalvanized steel plate with electrostatic spraying and reflective film
  • Dimensión740 mm × 535 mm × 111 mm (29.08" × 21.03" × 4.36")
  • Weight With package: 18 ± 0.5 kg (39.7 ± 1.1) lb. Without package: 15.6 ± 0.5 kg (34.4 ± 1.1) lb.
  • Operating Condition-30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing)
Certificaciones
  • ProtecciónIP65
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
