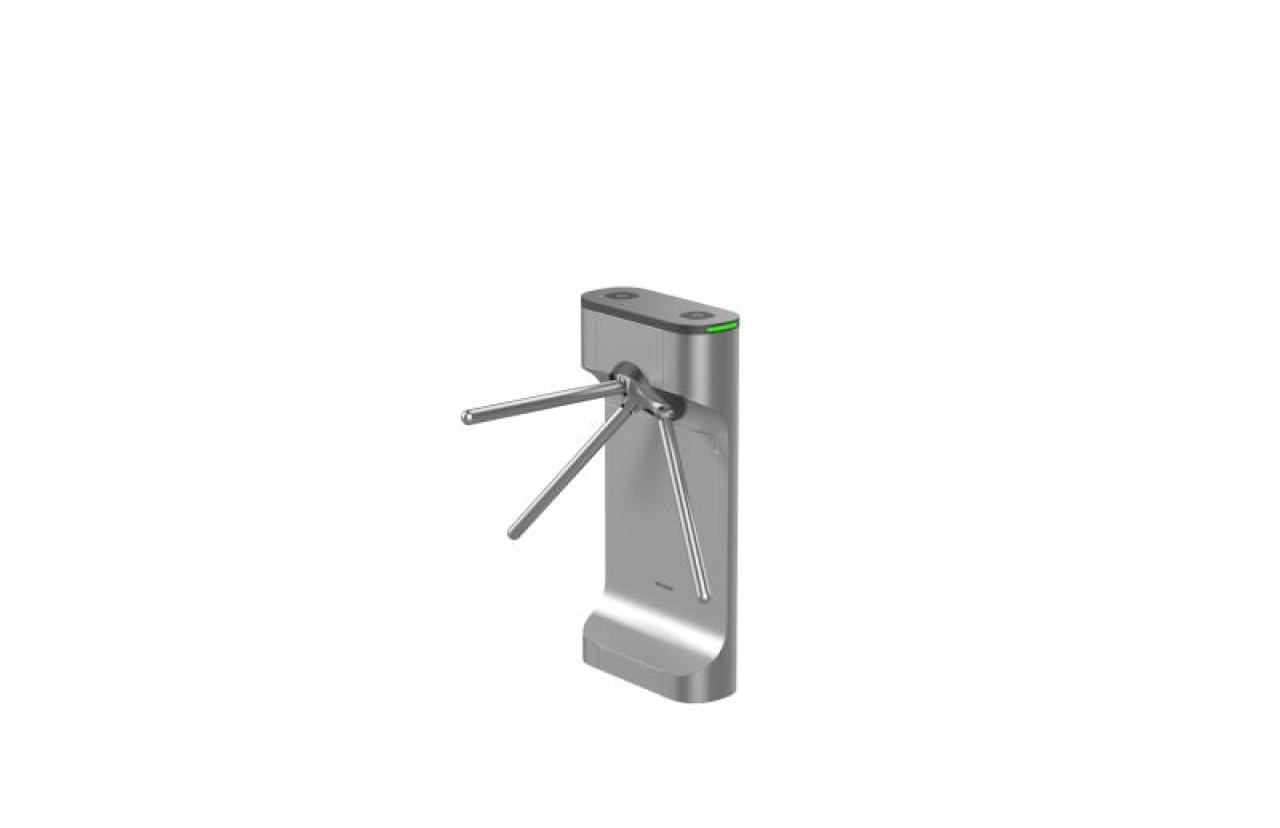

Pro Tripod Turnstile

Easy integration of any third-party access control system via relay input.
Bidirectional (Entering/Exiting) lane
LED indicates the entrance/exit and passing status.
Fire alarm passing: When the fire alarm is triggered, the arm will be dropped automatically for emergency evacuation.
Valid passing duration settings: System will cancel the passing permission if a person does not pass through the lane within the valid passing duration
With key buttons to configure turnstile's functions and parameters offline.

View Less

Data Sheet

Verfügbare Modelle:

DS-K3G411LX-R/Dm55

DS-K3G411LX

Spezifikation
Ressourcen
Zubehör

Data Sheet

System
MotorN/A
MCBF＞3 million times

Schnittstelle
Schaltfläche Beenden2
Alarm-Eingang1
SAOBTAGENA

Allgemein
DurchsatzMore than 35 persons per minute The actual throughput is affected by the person passing rate and passing method.
Breite der Fahrspur550mm
BarrierematerialSUS304 stainless steel
Material des SockelsSUS304 stainless steel
Built-in access controllerNot support
Stromversorgung Switching power supply: 100 to 240 VAC; 50 to 60 Hz Power adapter: 100 to 240 VAC; 50 to 60 Hz
LeistungsaufnahmeStandby: 40W
Betriebstemperatur Switching power supply: -20 °C to 65 °C (-4 °F to 149 °F) Power adapter: -10 °C to 45 °C (14 °F to 113 °F)
Betriebsfeuchtigkeit0% to 95% (No condensing)
AbmessungenWithout package: 502 mm × 202 mm × 1010 mm (19.8" × 8.0" × 40.0") With package: 745 mm × 365 mm × 1120 mm (29.3" × 14.4" × 44.1")
Without package: 26 kg (57.3 lb) With package: 31 kg (68.41 lb)
AnwendungsumgebungIndoor

Konfiguration
Modul-AuswahlNO
BasismodellDS-K3G411-BASE
Remote controller typeNot support

System

Motor

N/A

MCBF

＞3 million times

Schnittstelle

Schaltfläche Beenden

Alarm-Eingang

SAOBTAGE

Allgemein

Durchsatz

More than 35 persons per minute The actual throughput is affected by the person passing rate and passing method.

Breite der Fahrspur

550mm

Barrierematerial

SUS304 stainless steel

Material des Sockels

SUS304 stainless steel

Built-in access controller

Not support

Stromversorgung

Switching power supply: 100 to 240 VAC; 50 to 60 Hz Power adapter: 100 to 240 VAC; 50 to 60 Hz

Leistungsaufnahme

Standby: 40W

Betriebstemperatur

Switching power supply: -20 °C to 65 °C (-4 °F to 149 °F) Power adapter: -10 °C to 45 °C (14 °F to 113 °F)

Betriebsfeuchtigkeit

0% to 95% (No condensing)

Abmessungen

Without package: 502 mm × 202 mm × 1010 mm (19.8" × 8.0" × 40.0") With package: 745 mm × 365 mm × 1120 mm (29.3" × 14.4" × 44.1")

Without package: 26 kg (57.3 lb) With package: 31 kg (68.41 lb)

Anwendungsumgebung

Indoor

Konfiguration

Modul-Auswahl

Basismodell

DS-K3G411-BASE

Remote controller type

Not support

System

MotorN/A
MCBF＞3 million times

Schnittstelle

Schaltfläche Beenden2
Alarm-Eingang1
SAOBTAGENA

Allgemein

DurchsatzMore than 35 persons per minute The actual throughput is affected by the person passing rate and passing method.
Breite der Fahrspur550mm
BarrierematerialSUS304 stainless steel
Material des SockelsSUS304 stainless steel
Built-in access controllerNot support
Stromversorgung Switching power supply: 100 to 240 VAC; 50 to 60 Hz Power adapter: 100 to 240 VAC; 50 to 60 Hz
LeistungsaufnahmeStandby: 40W
Betriebstemperatur Switching power supply: -20 °C to 65 °C (-4 °F to 149 °F) Power adapter: -10 °C to 45 °C (14 °F to 113 °F)
Betriebsfeuchtigkeit0% to 95% (No condensing)
AbmessungenWithout package: 502 mm × 202 mm × 1010 mm (19.8" × 8.0" × 40.0") With package: 745 mm × 365 mm × 1120 mm (29.3" × 14.4" × 44.1")
Without package: 26 kg (57.3 lb) With package: 31 kg (68.41 lb)
AnwendungsumgebungIndoor
