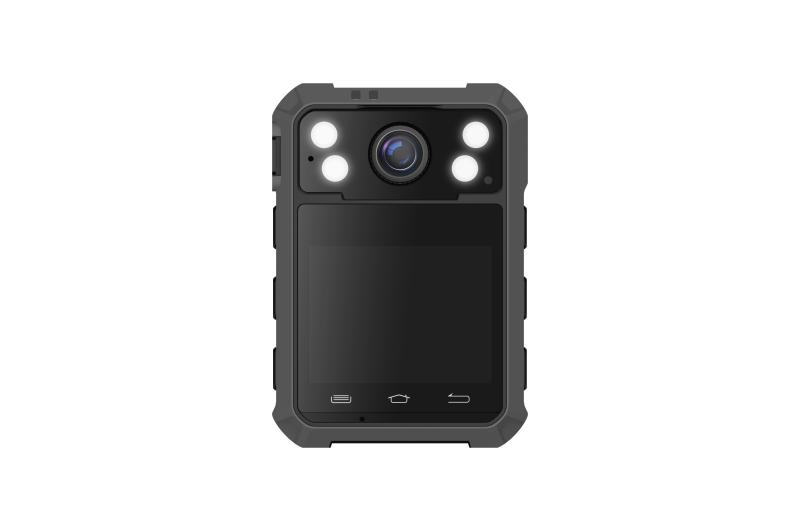

Linux 4G Front-Facing Screen Body Camera

  • 1080p HD recording.
  • The recorded videos can be uploaded to the central video platform via 4G wireless communication.
  • Supports IR night vision. Even in the dark scene, the facial features of the persons in the scene can be recognized clearly.
  • High IP level to support all-weather filed operation.
  • Built-in battery with large capacity, supporting longer working hour.
  • Small size, light weight, and convenient to carry.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-MCW40B/32G/GLE
DS-MCW40B
Data Sheet

Specifikace

  • CPU
  • CPUSingle core, 32 bit, Main frequency: 0.96 GHz
  • Kamera
  • Senzor obrazu 1/3" progressive scan CMOS
  • Max. Recording Resolution1920 × 1080
  • Min. osvětleníColor: 0.07 Lux @ (F2.2, AGC ON), 0 Lux with supplement light
  • Den & NocSwitch IR cut filter automatically
  • Zoom4x Digital
  • Bílé světloSupported
  • Objektiv
  • Ohnisková vzdálenost 2.4 mm fixed lens
  • FOVHorizontal FOV: 135°, Vertical FOV: 75°, Diagonal FOV: 145°
  • Clona F2.2
  • Video
  • Video kompreseH.264,H.265
  • Formát videaPS,MP4
  • Hlavní proud 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 720 × 576)
  • Pre-record & Post-recordPre-record: 10 s, Post-record: 60 s
  • Vedlejší stream30 fps (1280 × 720, 720 × 576)
  • Zvuk
  • Audio Compression for Video RecordingG722_1,AAC
  • Audio Compression for Audio RecordingPCM
  • Audio Compression for Group IntercomG711_A,G711_MU,G722_1
  • Přenosová rychlost zvukuG711_A(64 kbps) ,G711_MU(64 kbps),G722_1(16 kbps) ,AAC(64 kbps),PCM(128 kbps)
  • Obraz
  • Formát obrazuJPEG
  • Rozlišení obrazu5 MP, 16 MP, 30 MP, 40 MP
  • Image Stabilization Algorithm
  • Image Stabilization AlgorithmNot supported
  • Obrazovka
  • Rozlišení displeje320 × 240
  • Velikost obrazovky2.0"
  • Dotyková obrazovkaSupported
  • Screen Brightness Typical value: 520 cd/m²
  • Úložný prostor
  • RAM128 MB
  • ROM32 GB by default, 64/128/256 GB optional
  • IR
  • Dosah IRUp to 10 m
  • IR Wavelength850 nm
  • Bezdrátová síť
  • Wi-Fi Protocol 802.11 a/b/g/n
  • Wi-Fi Frequency Band2.412 to 2.472 GHz
  • Cellular NetworkOnly available for models with /GLE: GSM: 850/900/1800/1900 WCDMA: B1/B8 FDD -LTE: B1/B3/B5/B7/B8/B20 TDD -LTE: B38/B40/B41
  • Positioning ModeGPS
  • BluetoothNot supported
  • NFC Not supported
  • Síť
  • ProtokolHTTPS, RTSP, NTP, FTP
  • APIONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP
  • Bezpečnost
  • EncryptionAES128, AES256
  • WatermarkSupported
  • Rozhraní
  • Typ zvuku1 built-in mic(s)
  • Indikátor2 indicator(s) for charging/working/recording/exception
  • TlačítkoPower,Video recording,Tag,Fn,PTT
  • SIM CardOnly available for models with /GLE: 1 Nano-SIM card(s)
  • Nabíjecí rozhraníType-C, Pogo Pin
  • USB1 USB 2.0 port(s)
  • Chytré funkce
  • Face Picture RecognitionNot supported
  • Zachycení obličejeNot supported
  • Rozpoznávání SPZNot supported
  • Událost
  • Inteligentní událostNot supported
  • Group Intercom
  • Group Intercom Supported for firmware version V2.6.0 or above
  • Všeobecné
  • Operating Condition-20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
  • Napájení5 VDC, 2.0 A, max. 10 W
  • Dimensions83 mm × 58 mm × 33 mm (3.3" × 2.3" × 1.3")
  • Váha167 g (without mounting) (0.4 lb.)
  • Operační systémLinux
  • KlientHik-Connect,HikCentral Pro,HikCentral Master
  • MICSupported
  • Reproduktor1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 87 dB (10 cm)
  • Vibration MotorNot supported
  • GyroscopeNot supported
  • Baterie
  • Typ baterieLithium-ion battery, integral
  • Kapacita3220 mAh
  • Doba nabíjení≤ 4 h
  • Battery DurationUp to 12h in 720p resolution¹
  • Schválení
  • RFEN 300 328 V2.1.1 (BT or 2.4G),EN 62311:2008 (BT or 2.4G),EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013,EN 50130-4:2011+A1:2014)
  • EMCCE-EMC: EN 55032: 2015,EN 61000-3-2: 2019,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014
  • BezpečnostCB: IEC 62368-1: 2014+A11,IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014/A11: 2017,EN IEC 62368-1:2020+A11:2020,CE-LVD: EN 62368-1: 2014/A11: 2017
  • životní prostředíCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • OchranaIP68: IEC 60529-2013
  • Drop Test
  • Drop TestMIL-STD-810G, 2 m drop test
  • Warranty
  • Warranty 2 years for the device without battery, 1 year for the battery
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specifikace

CPU
CPU
Single core, 32 bit, Main frequency: 0.96 GHz
Kamera
Senzor obrazu
1/3" progressive scan CMOS
Max. Recording Resolution
1920 × 1080
Min. osvětlení
Color: 0.07 Lux @ (F2.2, AGC ON), 0 Lux with supplement light
Den & Noc
Switch IR cut filter automatically
Zoom
4x Digital
Bílé světlo
Supported
Objektiv
Ohnisková vzdálenost
2.4 mm fixed lens
FOV
Horizontal FOV: 135°, Vertical FOV: 75°, Diagonal FOV: 145°
Clona
F2.2
Video
Video komprese
H.264,H.265
Formát videa
PS,MP4
Hlavní proud
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 720 × 576)
Pre-record & Post-record
Pre-record: 10 s, Post-record: 60 s
Vedlejší stream
30 fps (1280 × 720, 720 × 576)
Zvuk
Audio Compression for Video Recording
G722_1,AAC
Audio Compression for Audio Recording
PCM
Audio Compression for Group Intercom
G711_A,G711_MU,G722_1
Přenosová rychlost zvuku
G711_A(64 kbps) ,G711_MU(64 kbps),G722_1(16 kbps) ,AAC(64 kbps),PCM(128 kbps)
Obraz
Formát obrazu
JPEG
Rozlišení obrazu
5 MP, 16 MP, 30 MP, 40 MP
Image Stabilization Algorithm
Image Stabilization Algorithm
Not supported
Obrazovka
Rozlišení displeje
320 × 240
Velikost obrazovky
2.0"
Dotyková obrazovka
Supported
Screen Brightness
Typical value: 520 cd/m²
Úložný prostor
RAM
128 MB
ROM
32 GB by default, 64/128/256 GB optional
IR
Dosah IR
Up to 10 m
IR Wavelength
850 nm
Bezdrátová síť
Wi-Fi Protocol
802.11 a/b/g/n
Wi-Fi Frequency Band
2.412 to 2.472 GHz
Cellular Network
Only available for models with /GLE: GSM: 850/900/1800/1900 WCDMA: B1/B8 FDD -LTE: B1/B3/B5/B7/B8/B20 TDD -LTE: B38/B40/B41
Positioning Mode
GPS
Bluetooth
Not supported
NFC
Not supported
Síť
Protokol
HTTPS, RTSP, NTP, FTP
API
ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP
Bezpečnost
Encryption
AES128, AES256
Watermark
Supported
Rozhraní
Typ zvuku
1 built-in mic(s)
Indikátor
2 indicator(s) for charging/working/recording/exception
Tlačítko
Power,Video recording,Tag,Fn,PTT
SIM Card
Only available for models with /GLE: 1 Nano-SIM card(s)
Nabíjecí rozhraní
Type-C, Pogo Pin
USB
1 USB 2.0 port(s)
Chytré funkce
Face Picture Recognition
Not supported
Zachycení obličeje
Not supported
Rozpoznávání SPZ
Not supported
Událost
Inteligentní událost
Not supported
Group Intercom
Group Intercom
Supported for firmware version V2.6.0 or above
Všeobecné
Operating Condition
-20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
Napájení
5 VDC, 2.0 A, max. 10 W
Dimensions
83 mm × 58 mm × 33 mm (3.3" × 2.3" × 1.3")
Váha
167 g (without mounting) (0.4 lb.)
Operační systém
Linux
Klient
Hik-Connect,HikCentral Pro,HikCentral Master
MIC
Supported
Reproduktor
1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 87 dB (10 cm)
Vibration Motor
Not supported
Gyroscope
Not supported
Baterie
Typ baterie
Lithium-ion battery, integral
Kapacita
3220 mAh
Doba nabíjení
≤ 4 h
Battery Duration
Up to 12h in 720p resolution¹
Schválení
RF
EN 300 328 V2.1.1 (BT or 2.4G),EN 62311:2008 (BT or 2.4G),EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013,EN 50130-4:2011+A1:2014)
EMC
CE-EMC: EN 55032: 2015,EN 61000-3-2: 2019,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014
Bezpečnost
CB: IEC 62368-1: 2014+A11,IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014/A11: 2017,EN IEC 62368-1:2020+A11:2020,CE-LVD: EN 62368-1: 2014/A11: 2017
životní prostředí
CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
Ochrana
IP68: IEC 60529-2013
Drop Test
Drop Test
MIL-STD-810G, 2 m drop test
Warranty
Warranty
2 years for the device without battery, 1 year for the battery
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specifikace
CPU
  • CPUSingle core, 32 bit, Main frequency: 0.96 GHz
Kamera
  • Senzor obrazu 1/3" progressive scan CMOS
  • Max. Recording Resolution1920 × 1080
  • Min. osvětleníColor: 0.07 Lux @ (F2.2, AGC ON), 0 Lux with supplement light
  • Den & NocSwitch IR cut filter automatically
  • Zoom4x Digital
  • Bílé světloSupported
Objektiv
  • Ohnisková vzdálenost 2.4 mm fixed lens
  • FOVHorizontal FOV: 135°, Vertical FOV: 75°, Diagonal FOV: 145°
  • Clona F2.2
Video
  • Video kompreseH.264,H.265
  • Formát videaPS,MP4
  • Hlavní proud 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 720 × 576)
  • Pre-record & Post-recordPre-record: 10 s, Post-record: 60 s
  • Vedlejší stream30 fps (1280 × 720, 720 × 576)
Zvuk
  • Audio Compression for Video RecordingG722_1,AAC
  • Audio Compression for Audio RecordingPCM
  • Audio Compression for Group IntercomG711_A,G711_MU,G722_1
  • Přenosová rychlost zvukuG711_A(64 kbps) ,G711_MU(64 kbps),G722_1(16 kbps) ,AAC(64 kbps),PCM(128 kbps)
Obraz
  • Formát obrazuJPEG
  • Rozlišení obrazu5 MP, 16 MP, 30 MP, 40 MP
Image Stabilization Algorithm
  • Image Stabilization AlgorithmNot supported
Obrazovka
  • Rozlišení displeje320 × 240
  • Velikost obrazovky2.0"
  • Dotyková obrazovkaSupported
  • Screen Brightness Typical value: 520 cd/m²
Úložný prostor
  • RAM128 MB
  • ROM32 GB by default, 64/128/256 GB optional
IR
  • Dosah IRUp to 10 m
  • IR Wavelength850 nm
Bezdrátová síť
  • Wi-Fi Protocol 802.11 a/b/g/n
  • Wi-Fi Frequency Band2.412 to 2.472 GHz
  • Cellular NetworkOnly available for models with /GLE: GSM: 850/900/1800/1900 WCDMA: B1/B8 FDD -LTE: B1/B3/B5/B7/B8/B20 TDD -LTE: B38/B40/B41
  • Positioning ModeGPS
  • BluetoothNot supported
  • NFC Not supported
Síť
  • ProtokolHTTPS, RTSP, NTP, FTP
  • APIONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP
Bezpečnost
  • EncryptionAES128, AES256
  • WatermarkSupported
Rozhraní
  • Typ zvuku1 built-in mic(s)
  • Indikátor2 indicator(s) for charging/working/recording/exception
  • TlačítkoPower,Video recording,Tag,Fn,PTT
  • SIM CardOnly available for models with /GLE: 1 Nano-SIM card(s)
  • Nabíjecí rozhraníType-C, Pogo Pin
  • USB1 USB 2.0 port(s)
Chytré funkce
  • Face Picture RecognitionNot supported
  • Zachycení obličejeNot supported
  • Rozpoznávání SPZNot supported
Událost
  • Inteligentní událostNot supported
Group Intercom
  • Group Intercom Supported for firmware version V2.6.0 or above
Všeobecné
  • Operating Condition-20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
  • Napájení5 VDC, 2.0 A, max. 10 W
  • Dimensions83 mm × 58 mm × 33 mm (3.3" × 2.3" × 1.3")
  • Váha167 g (without mounting) (0.4 lb.)
  • Operační systémLinux
  • KlientHik-Connect,HikCentral Pro,HikCentral Master
  • MICSupported
  • Reproduktor1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 87 dB (10 cm)
  • Vibration MotorNot supported
  • GyroscopeNot supported
Baterie
  • Typ baterieLithium-ion battery, integral
  • Kapacita3220 mAh
  • Doba nabíjení≤ 4 h
  • Battery DurationUp to 12h in 720p resolution¹
Schválení
  • RFEN 300 328 V2.1.1 (BT or 2.4G),EN 62311:2008 (BT or 2.4G),EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013,EN 50130-4:2011+A1:2014)
  • EMCCE-EMC: EN 55032: 2015,EN 61000-3-2: 2019,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014
  • BezpečnostCB: IEC 62368-1: 2014+A11,IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014/A11: 2017,EN IEC 62368-1:2020+A11:2020,CE-LVD: EN 62368-1: 2014/A11: 2017
  • životní prostředíCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • OchranaIP68: IEC 60529-2013
Drop Test
  • Drop TestMIL-STD-810G, 2 m drop test
Warranty
  • Warranty 2 years for the device without battery, 1 year for the battery
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.6.1_240924
Aplikováno na:
DS-MCW40B/32G/GLE

Hikvision.com uses strictly necessary cookies and related technologies to enable the website to function. With your consent, we would also like to use cookies to observe and analyse traffic levels and other metrics and tailor our website’s content. For more information on cookie practices please refer to our cookie policy.

Manage Cookies Reject all Accept
Accept
Reject all Manage Cookies
Prodej
Technická podpora
Odběr newsletteru
Online podpora
Kde nakupovat
Jiné
Kontakt
Hik-Partner Pro close
Hik-Partner Pro
Security Business Assistant. At Your Fingertips. Learn more
Hik-Partner Pro
Scan and download the app
Download
Hik-Partner Pro
Hik-Partner Pro

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
