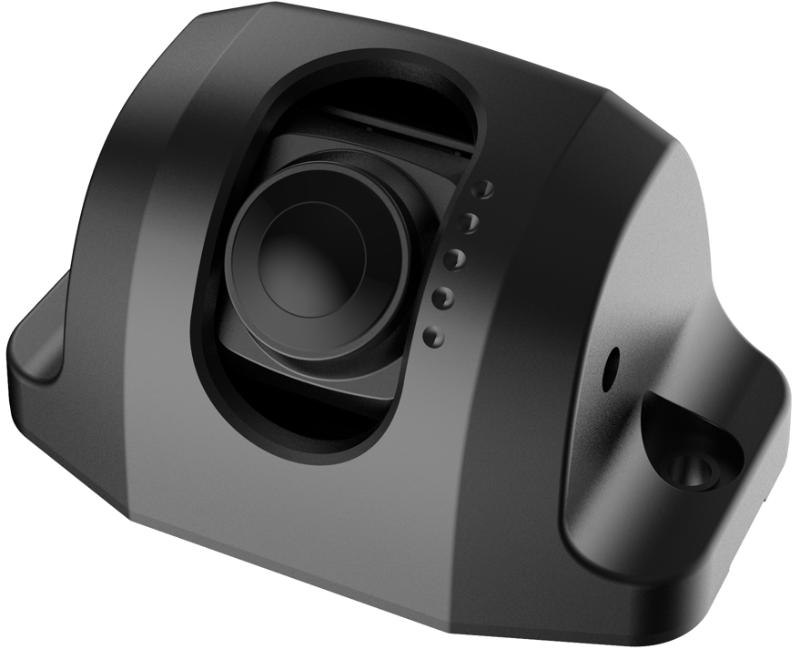

720P 1/2.9”CMOS Low light color camera

  • Adopts progressive scan CMOS to prevent motion image aliasing
  • Supports HD coaxial output with the resolution 720P
  • Min. illumination: 0.01 Lux @(F1.2, AGC ON)
  • Adopts auto electronic shutter to adapt to different environment
  • Supports auto gain control and self-adaption to light
  • Shock-proof design and aviation output plug
View Less
View more
Data Sheet
Sales Inquiry

Available models:

AE-VC136T(1.0mm)(Bus)
AE-VC136T
Data Sheet

Spezifikation

  • Kamera
  • Verschlusszeit1/25 s to 1/30,000 s
  • Wide Dynamic Range96 dB
  • Tag & NachtColor
  • Objektiv
  • ObjektivfassungM12
  • Video
  • Bildfrequenz720P@30 fps
  • Bild
  • SNR42 dB
  • Schnittstelle
  • Video-Ausgang1, Vp-p Composite Output (aviation plug)
  • Audio1, aviation plug (linear resistance: 1 kΩ)
  • Schnittstellenstil1 Vpp Composite Output (aviation plug) 1：power, 2:ground ,3:NA ,4：video
  • Zusatzbeleuchtung
  • Spannungsversorgung9 to 16 V DC
  • LeistungsaufnahmeMax. 1 W
  • Allgemein
  • Kameraabmessungen74 .8mm × 48.2 mm × 43 mm (2.9" × 1.9" × 1.7")
  • Anlauf- und Betriebsbedingungen-40 °C to 75 °C (-40 °F to 167 °F), 90%
*Product performance is based on controlled environment testing. Results may vary. Content is machine-translated; refer to the English version for accuracy.

Spezifikation

Kamera
Verschlusszeit
1/25 s to 1/30,000 s
Wide Dynamic Range
96 dB
Tag & Nacht
Color
Objektiv
Objektivfassung
M12
Video
Bildfrequenz
720P@30 fps
SNR
42 dB
Schnittstelle
Video-Ausgang
1, Vp-p Composite Output (aviation plug)
Audio
1, aviation plug (linear resistance: 1 kΩ)
Schnittstellenstil
1 Vpp Composite Output (aviation plug) 1：power, 2:ground ,3:NA ,4：video
Zusatzbeleuchtung
Spannungsversorgung
9 to 16 V DC
Leistungsaufnahme
Max. 1 W
Allgemein
Kameraabmessungen
74 .8mm × 48.2 mm × 43 mm (2.9" × 1.9" × 1.7")
Anlauf- und Betriebsbedingungen
-40 °C to 75 °C (-40 °F to 167 °F), 90%
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Spezifikation
Kamera
  • Verschlusszeit1/25 s to 1/30,000 s
  • Wide Dynamic Range96 dB
  • Tag & NachtColor
Objektiv
  • ObjektivfassungM12
Video
  • Bildfrequenz720P@30 fps
  • SNR42 dB
Schnittstelle
  • Video-Ausgang1, Vp-p Composite Output (aviation plug)
  • Audio1, aviation plug (linear resistance: 1 kΩ)
  • Schnittstellenstil1 Vpp Composite Output (aviation plug) 1：power, 2:ground ,3:NA ,4：video
Zusatzbeleuchtung
  • Spannungsversorgung9 to 16 V DC
  • LeistungsaufnahmeMax. 1 W
Allgemein
  • Kameraabmessungen74 .8mm × 48.2 mm × 43 mm (2.9" × 1.9" × 1.7")
  • Anlauf- und Betriebsbedingungen-40 °C to 75 °C (-40 °F to 167 °F), 90%
*Product performance is based on controlled environment testing. Results may vary. Content is machine-translated; refer to the English version for accuracy.
