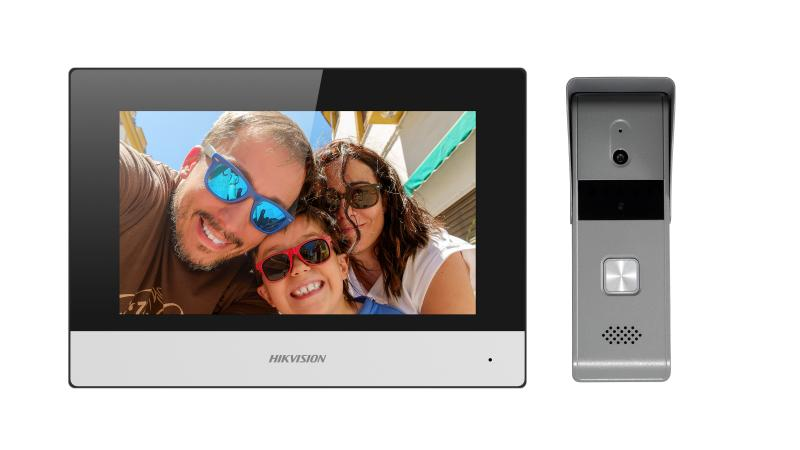

Hybrid Intercom Kit

  • Hybrid Intercom Kit with 1 indoor station and 1 four-wire analog door station
  • User-friendly control with a convenient touch screen
  • Convenient management via the Hik-Connect mobile client
  • More cost-effective options with analog doorbells
  • Easy installation as the doorbell requires no exclusive power supply
  • Anti-oxidant aluminium alloy
  • European power supply adaptor included (please mark for other standards when you order)

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KIS303-P
DS-KIS303-P#CZSK
Data Sheet

Specifikace

  • Dveřní stanice/Parametry videa
  • Řešení1920 x 1080
  • FOVHorizontal: 66.2°，Vertical: 37.2°
  • Dveřní stanice/Parametry zvuku
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Dveřní stanice/Rozhraní zařízení
  • I/O výstup1 relay output
  • Four-wire1 for 4-wire interface
  • Dveřní stanice/Obecné
  • Power supply12 VDC
  • Power consumption Max. 5 W
  • Working temperature -10° C to 55° C (14° F to 131° F)
  • Working humidity10% to 90%
  • Dimensions135.14 mm × 49.6 mm × 41.93 mm (5.32" × 1.95" × 1.65")
  • Vnitřní stanice/Parametry systému
  • Operační systémEmbedded Linux operation system
  • RAM128 MB
  • ROM32 MB
  • Vnitřní stanice/Parametry zobrazení
  • Velikost7-inch colorful TFT screen
  • Provozní metodaCapacitive touch screen
  • TypColorful TFT screen
  • Řešení1024 × 600
  • Vnitřní stanice/Parametry videa
  • Řešení/
  • Objektiv/
  • WDR/
  • FOV/
  • Vnitřní stanice/Parametry zvuku
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio compression Rate64 Kps
  • Standard komprese zvukuG.711 U G.711 A
  • Nastavení hlasitostiAdjustable
  • Kvalita zvukuNoise suppression and echo cancellation
  • Indoor station/Capacity parameters
  • Linked IPC capacity16
  • Notice capacity200
  • Linked indoor extensions capacity5
  • Linked doorphone capacity2 analog doorphones, 15 IP doorphones Max.
  • Vnitřní stanice/Síťové parametry
  • Wi-FiWi-Fi 802.11 b/g/n
  • 3G/4G/
  • Bluetooth/
  • ProtokolTCP/IP, SIP, RTSP
  • Vnitřní stanice/Rozhraní zařízení
  • Network interface1 RJ-45 10/100 Mbps self-adaptive
  • RS-4851
  • Alarm input2-ch alarm inputs
  • Alarm output2
  • Power input1, 12 VDC
  • TAMPER/
  • TF karta Max to 128 G, SD 2.0 or lower version
  • USB interface/
  • Four-wire interface2
  • Vnitřní stanice/Obecné
  • Tlačítko0
  • Power supplyIEEE802.3af, Standard PoE,12V DC
  • Power consumption≤ 6 W
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity10% to 90%
  • Rozměry (Š × V × H)200 mm × 140 mm × 23.6 mm (7.9" × 5.5" × 0.9")
  • InstalaceSurface mounting
  • Prostředí aplikaceIndoor
  • Ochranná úroveň/
  • VáhaWith package: 365 g Without package: 355 g
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specifikace

Dveřní stanice/Parametry videa
Řešení
1920 x 1080
FOV
Horizontal: 66.2°，Vertical: 37.2°
Dveřní stanice/Parametry zvuku
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Dveřní stanice/Rozhraní zařízení
I/O výstup
1 relay output
Four-wire
1 for 4-wire interface
Dveřní stanice/Obecné
Power supply
12 VDC
Power consumption
Max. 5 W
Working temperature
-10° C to 55° C (14° F to 131° F)
Working humidity
10% to 90%
Dimensions
135.14 mm × 49.6 mm × 41.93 mm (5.32" × 1.95" × 1.65")
Vnitřní stanice/Parametry systému
Operační systém
Embedded Linux operation system
RAM
128 MB
ROM
32 MB
Vnitřní stanice/Parametry zobrazení
Velikost
7-inch colorful TFT screen
Provozní metoda
Capacitive touch screen
Typ
Colorful TFT screen
Řešení
1024 × 600
Vnitřní stanice/Parametry videa
Řešení
/
Objektiv
/
WDR
/
FOV
/
Vnitřní stanice/Parametry zvuku
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Audio compression Rate
64 Kps
Standard komprese zvuku
G.711 U G.711 A
Nastavení hlasitosti
Adjustable
Kvalita zvuku
Noise suppression and echo cancellation
Indoor station/Capacity parameters
Linked IPC capacity
16
Notice capacity
200
Linked indoor extensions capacity
5
Linked doorphone capacity
2 analog doorphones, 15 IP doorphones Max.
Vnitřní stanice/Síťové parametry
Wi-Fi
Wi-Fi 802.11 b/g/n
3G/4G
/
Bluetooth
/
Protokol
TCP/IP, SIP, RTSP
Vnitřní stanice/Rozhraní zařízení
Network interface
1 RJ-45 10/100 Mbps self-adaptive
RS-485
1
Alarm input
2-ch alarm inputs
Alarm output
2
Power input
1, 12 VDC
TAMPER
/
TF karta
Max to 128 G, SD 2.0 or lower version
USB interface
/
Four-wire interface
2
Vnitřní stanice/Obecné
Tlačítko
0
Power supply
IEEE802.3af, Standard PoE,12V DC
Power consumption
≤ 6 W
Working temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working humidity
10% to 90%
Rozměry (Š × V × H)
200 mm × 140 mm × 23.6 mm (7.9" × 5.5" × 0.9")
Instalace
Surface mounting
Prostředí aplikace
Indoor
Ochranná úroveň
/
Váha
With package: 365 g Without package: 355 g
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specifikace
Dveřní stanice/Parametry videa
  • Řešení1920 x 1080
  • FOVHorizontal: 66.2°，Vertical: 37.2°
Dveřní stanice/Parametry zvuku
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
Dveřní stanice/Rozhraní zařízení
  • I/O výstup1 relay output
  • Four-wire1 for 4-wire interface
Dveřní stanice/Obecné
  • Power supply12 VDC
  • Power consumption Max. 5 W
  • Working temperature -10° C to 55° C (14° F to 131° F)
  • Working humidity10% to 90%
  • Dimensions135.14 mm × 49.6 mm × 41.93 mm (5.32" × 1.95" × 1.65")
Vnitřní stanice/Parametry systému
  • Operační systémEmbedded Linux operation system
  • RAM128 MB
  • ROM32 MB
Vnitřní stanice/Parametry zobrazení
  • Velikost7-inch colorful TFT screen
  • Provozní metodaCapacitive touch screen
  • TypColorful TFT screen
  • Řešení1024 × 600
Vnitřní stanice/Parametry videa
  • Řešení/
  • Objektiv/
  • WDR/
  • FOV/
Vnitřní stanice/Parametry zvuku
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio compression Rate64 Kps
  • Standard komprese zvukuG.711 U G.711 A
  • Nastavení hlasitostiAdjustable
  • Kvalita zvukuNoise suppression and echo cancellation
Indoor station/Capacity parameters
  • Linked IPC capacity16
  • Notice capacity200
  • Linked indoor extensions capacity5
  • Linked doorphone capacity2 analog doorphones, 15 IP doorphones Max.
Vnitřní stanice/Síťové parametry
  • Wi-FiWi-Fi 802.11 b/g/n
  • 3G/4G/
  • Bluetooth/
  • ProtokolTCP/IP, SIP, RTSP
Vnitřní stanice/Rozhraní zařízení
  • Network interface1 RJ-45 10/100 Mbps self-adaptive
  • RS-4851
  • Alarm input2-ch alarm inputs
  • Alarm output2
  • Power input1, 12 VDC
  • TAMPER/
  • TF karta Max to 128 G, SD 2.0 or lower version
  • USB interface/
  • Four-wire interface2
Vnitřní stanice/Obecné
  • Tlačítko0
  • Power supplyIEEE802.3af, Standard PoE,12V DC
  • Power consumption≤ 6 W
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity10% to 90%
  • Rozměry (Š × V × H)200 mm × 140 mm × 23.6 mm (7.9" × 5.5" × 0.9")
  • InstalaceSurface mounting
  • Prostředí aplikaceIndoor
  • Ochranná úroveň/
  • VáhaWith package: 365 g Without package: 355 g
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.2.106_250414
R0 Indoor Station Firmware V2.2.106_build250414 Release Note
