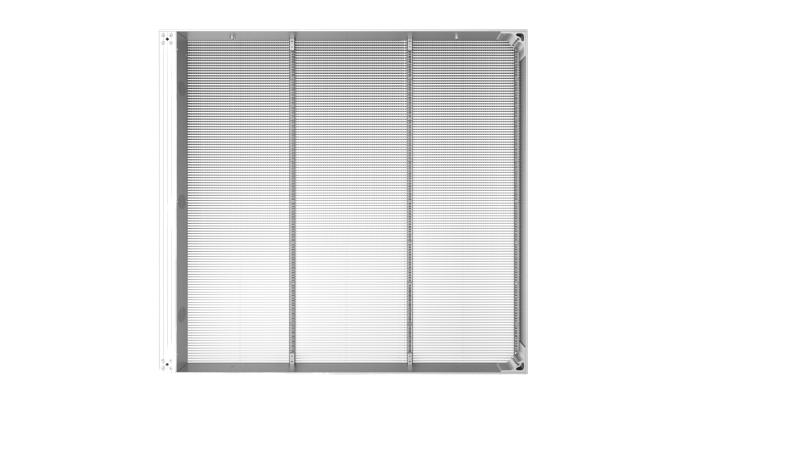

Transparent LED Display Unit

  • High-performance transparent LED screens
  • High transparency with 5.0 mm pixel pitch
  • Great heat dissipation and energy-saving
  • Easy to maintain
  • Fixed size, can be suspended from ceiling
View Less
View more
Sales Inquiry
DS-D4A50TI-GP

Specification

  • General
  • Storage Temperature-20 ~ 60 º C (-4 to 140 º F)
  • Working Temperature-10 ~ 45 º C (14 to 104 º F)
  • Working Humidity10 ~ 90 % (non-condensing)
  • Working Hours≥ 100,000 h
  • Storage Humidity10 ~ 90% (non-condensing)
  • Ingress ProtectionIP43
  • MaterialAluminium
  • LED Module
  • Module TypeSurface mounted trinity LED
  • Pixel PitchH: 5mm V: 8mm
  • Resolution (W × H)192 ×160
  • LED Unit
  • Pixel Density25000 pixel/㎡
  • Unit Dimension(W × H × D)1016.6mm(W) × 1497mm(H) × 50mm(D)
  • Weight21 kg/unit
  • Transparency0.75
  • Optical
  • Brightness (nits)5000 nits
  • Color Temperature3000 ~10000K, adjustable
  • Viewing AngleHorizontal 160°, vertical 160°
  • Recommended Viewing Distance≥ 4m
  • Center Distance Deviation of LED< 3%
  • Brightness Uniformity≥ 97%
  • Color Uniformity≤ ± 0.003 Cx, Cy
  • Contrast≥3000 : 1
  • Electrical
  • Max. Consumption1000 W/㎡
  • Average Consumption320 W/㎡
  • Power Supply100~220 VAC
  • Processing Performance
  • Driving ModeConstant current driving
  • Frame Frequency60 Hz
  • Refresh Rate≥1920 Hz
  • Processing Depth16 bit
  • Grey Level65536 level
  • Color281.4 trillion
  • Brighness ControlAuto/Manual
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

General
Storage Temperature
-20 ~ 60 º C (-4 to 140 º F)
Working Temperature
-10 ~ 45 º C (14 to 104 º F)
Working Humidity
10 ~ 90 % (non-condensing)
Working Hours
≥ 100,000 h
Storage Humidity
10 ~ 90% (non-condensing)
Ingress Protection
IP43
Material
Aluminium
LED Module
Module Type
Surface mounted trinity LED
Pixel Pitch
H: 5mm V: 8mm
Resolution (W × H)
192 ×160
LED Unit
Pixel Density
25000 pixel/㎡
Unit Dimension(W × H × D)
1016.6mm(W) × 1497mm(H) × 50mm(D)
Weight
21 kg/unit
Transparency
0.75
Optical
Brightness (nits)
5000 nits
Color Temperature
3000 ~10000K, adjustable
Viewing Angle
Horizontal 160°, vertical 160°
Recommended Viewing Distance
≥ 4m
Center Distance Deviation of LED
< 3%
Brightness Uniformity
≥ 97%
Color Uniformity
≤ ± 0.003 Cx, Cy
Contrast
≥3000 : 1
Electrical
Max. Consumption
1000 W/㎡
Average Consumption
320 W/㎡
Power Supply
100~220 VAC
Processing Performance
Driving Mode
Constant current driving
Frame Frequency
60 Hz
Refresh Rate
≥1920 Hz
Processing Depth
16 bit
Grey Level
65536 level
Color
281.4 trillion
Brighness Control
Auto/Manual
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
General
  • Storage Temperature-20 ~ 60 º C (-4 to 140 º F)
  • Working Temperature-10 ~ 45 º C (14 to 104 º F)
  • Working Humidity10 ~ 90 % (non-condensing)
  • Working Hours≥ 100,000 h
  • Storage Humidity10 ~ 90% (non-condensing)
  • Ingress ProtectionIP43
  • MaterialAluminium
LED Module
  • Module TypeSurface mounted trinity LED
  • Pixel PitchH: 5mm V: 8mm
  • Resolution (W × H)192 ×160
LED Unit
  • Pixel Density25000 pixel/㎡
  • Unit Dimension(W × H × D)1016.6mm(W) × 1497mm(H) × 50mm(D)
  • Weight21 kg/unit
  • Transparency0.75
Optical
  • Brightness (nits)5000 nits
  • Color Temperature3000 ~10000K, adjustable
  • Viewing AngleHorizontal 160°, vertical 160°
  • Recommended Viewing Distance≥ 4m
  • Center Distance Deviation of LED< 3%
  • Brightness Uniformity≥ 97%
  • Color Uniformity≤ ± 0.003 Cx, Cy
  • Contrast≥3000 : 1
Electrical
  • Max. Consumption1000 W/㎡
  • Average Consumption320 W/㎡
  • Power Supply100~220 VAC
Processing Performance
  • Driving ModeConstant current driving
  • Frame Frequency60 Hz
  • Refresh Rate≥1920 Hz
  • Processing Depth16 bit
  • Grey Level65536 level
  • Color281.4 trillion
  • Brighness ControlAuto/Manual
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
