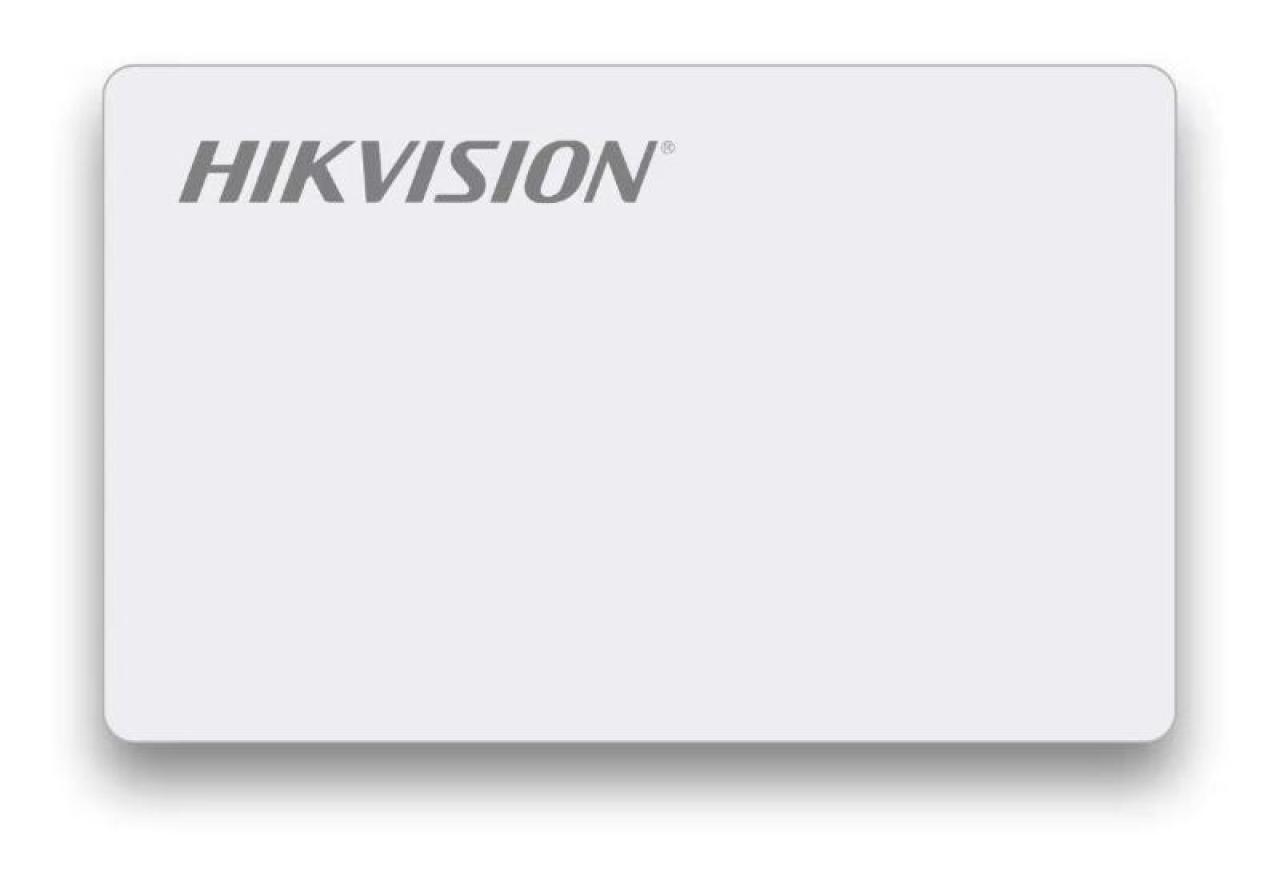

UHF White Card (dual-band)

  • It is suitable for scenarios such as pallet management, logistics management, asset entrance and exit management, and product management.
View Less
View more
Sales Inquiry

Available models:

DS-TRC902-1/A(dual-band)
View more View Less
DS-TRC902-1/A(dual-band) NEW

Specification

  • UHF
  • Working FrequencyCN&US (902-928)Mhz；13.56Mhz
  • RF ProtocolEPC Class 1 Gen 2 ISO18000-6C； ISO14443A
  • Reading DistanceFixed Reader [PERP=2W]：7m Handheld Collector [PERP=0.8≈1W]：5m
  • IC Chip TypeALIEN Higgs3; FM11RF08
  • Memory Capacity96-bit EPC ; 512-bit user memory; 64-bit TID; 4-byte UID
  • Data Life10years
  • Number of Use/Storage Life100000times
  • Surface MaterialPVC
  • Antenna Material/Base MaterialPET
  • Package FormThe minimum unit is 200 sheets/box
  • General
  • Working Environment-20°C～65°C / -4°F～149°F
  • Dimensions86 × 54 × 0.82 mm (3.39 × 2.13 × 0.0323 inch)
  • 7.0 g/sheet
  • Storage Temperature and Humidity-20°C～65°C / -4°F～149°F
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

UHF
Working Frequency
CN&US (902-928)Mhz；13.56Mhz
RF Protocol
EPC Class 1 Gen 2 ISO18000-6C； ISO14443A
Reading Distance
Fixed Reader [PERP=2W]：7m Handheld Collector [PERP=0.8≈1W]：5m
IC Chip Type
ALIEN Higgs3; FM11RF08
Memory Capacity
96-bit EPC ; 512-bit user memory; 64-bit TID; 4-byte UID
Data Life
10years
Number of Use/Storage Life
100000times
Surface Material
PVC
Antenna Material/Base Material
PET
Package Form
The minimum unit is 200 sheets/box
General
Working Environment
-20°C～65°C / -4°F～149°F
Dimensions
86 × 54 × 0.82 mm (3.39 × 2.13 × 0.0323 inch)
7.0 g/sheet
Storage Temperature and Humidity
-20°C～65°C / -4°F～149°F
