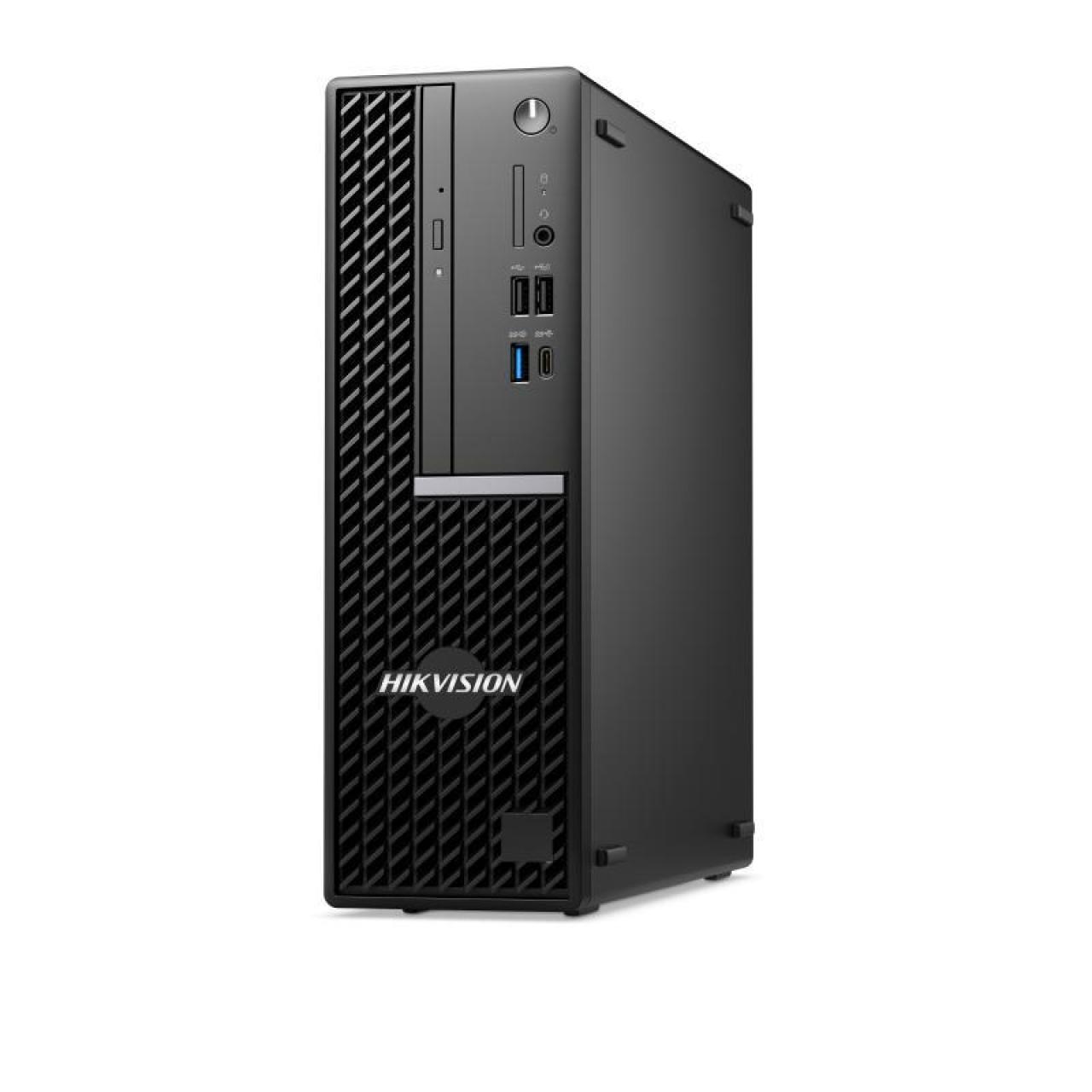

Tower Workstation

Integrated graphics with great decoding capabilities
Four-screen independent output for efficient management
Pre-installed operating system and configured with keyboard and mouse, plug and play
Operates in extreme temperatures and high humidity
Customized dust filters for effective protection against windborne sand and dust

View Less

Data Sheet

Available models:

DS-VP41D-C/HW7L

Specification
Resources
Accessories

Data Sheet

Hardware Specifications
CPU i7-12700， 2.10 GHz, 25 MB Cache， 12 Cores, 20 Threads
Memory Standard Config：2 × 8GB UDIMM，3200MT/s Scalability：4 × 32GB UDIMM
Hard Disks Standard Config：1 × 1TB M.2 SSD Scalability：1 × 4TB 3.5inch SATA HDD
Supported Operating Systems Win10 multilingual version pre-installed
Graphic Card Standard Config：UHD Graphics 770（intergrated in CPU） Scalability：1 × Semi-high Independent graphics card（Please contact technical support for more info.）
PCIe Slots 1*PCIe 4.0 x16 Slot 1*PCIe 4.0 x4 Slot

Portos
Type-C 1
USB 3.0 1（Front）+3（Rear）
USB 2.0 2（Front）+2（Rear）
Universal Audio Port 1
Ethernet Port 1 x LAN 10/100/1000
VGA /（HDMI port can be used as VGA port）
HDMI 1
DP 3（DP port can be used as HDMI port）

General
Net Weight 5.63 kg (12.42 lb)
Gross Weight 6.72 kg (14.81 lb)
Dimension (W × H × D) 92.60 mm × 290.00 mm × 292.80 mm (3.65'' × 11.42'' × 11.53'')
Package Dimensions (W × H × D) 394.00 mm × 264.00 mm × 487.00 mm (15.51'' × 10.39'' × 19.17'')
Operating Temperature 5 °C to 45 °C (41 °F to 113 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity 20% to 80% (no condensation)
Storage Humidity 5% to 95% (no condensation)
Power Supply 300 W PSU，92% Energy efficiency，80 Plus Platinum
Form Factor Tower SFF

Hardware Specifications

CPU

i7-12700， 2.10 GHz, 25 MB Cache， 12 Cores, 20 Threads

Memory

Standard Config：2 × 8GB UDIMM，3200MT/s Scalability：4 × 32GB UDIMM

Hard Disks

Standard Config：1 × 1TB M.2 SSD Scalability：1 × 4TB 3.5inch SATA HDD

Supported Operating Systems

Win10 multilingual version pre-installed

Graphic Card

Standard Config：UHD Graphics 770（intergrated in CPU） Scalability：1 × Semi-high Independent graphics card（Please contact technical support for more info.）

PCIe Slots

1*PCIe 4.0 x16 Slot 1*PCIe 4.0 x4 Slot

Portos

Type-C

USB 3.0

1（Front）+3（Rear）

USB 2.0

2（Front）+2（Rear）

Universal Audio Port

Ethernet Port

1 x LAN 10/100/1000

VGA
