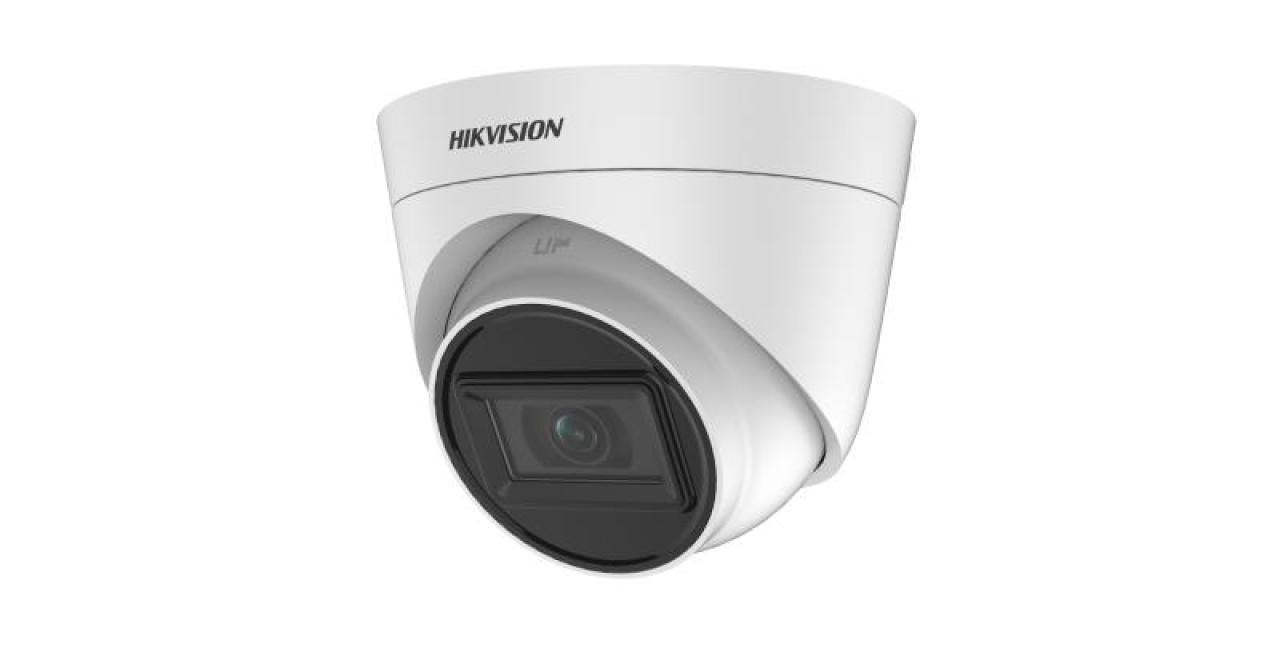

5 MP PoC Fixed Turret Camera

High quality imaging with 5 MP, 2560 × 1944 resolution
2.8 mm and 3.6 mm fixed focal lens
Up to 40 m IR distance for bright night imaging
Water and dust resistant (IP67)

View Less

Data Sheet

Available models:

DS-2CE78H0T-IT3E(2.8mm)(C)

DS-2CE78H0T-IT3E(3.6mm)(C)

DS-2CE78H0T-IT3E(C)

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor5 MP CMOS
Max. Resolution2560 (H) × 1944 (V)
Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 93°, vertical FOV: 75°, diagonal FOV: 124° 3.6 mm, horizontal FOV: 77°, vertical FOV: 57°, diagonal FOV: 103°
Lens MountM12

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Smart IR
Frame Rate5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image Enhancement DWDR, BLC, HLC, Global
Noise Reduction2D DNR
White BalanceAuto/Manual
AGCYes

Interface
Video Output 1 HD analog output

General
MaterialFront Cover: Plastic Main Body: Metal
Dimension91.0 mm × Ø109.8 mm (3.58" × Ø4.32")
WeightApprox. 326 g (0.72 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ±25%/PoC.af *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
ConsumptionMax. 3 W
IR RangeUp to 40 m

Approval
ProtectionIP67

Camera

Image Sensor

5 MP CMOS

Max. Resolution

2560 (H) × 1944 (V)

Min. Illumination

0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Day & Night

ICR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm and 3.6 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 93°, vertical FOV: 75°, diagonal FOV: 124° 3.6 mm, horizontal FOV: 77°, vertical FOV: 57°, diagonal FOV: 103°

Lens Mount

M12


Image Parameters Switch

STD/HIGH-SAT

Image Settings

Brightness, Sharpness, Smart IR

Frame Rate

5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

DWDR, BLC, HLC, Global

Noise Reduction

2D DNR

White Balance

Auto/Manual

AGC

Yes

Interface

Video Output

1 HD analog output

General

Material

Front Cover: Plastic Main Body: Metal

Dimension

91.0 mm × Ø109.8 mm (3.58" × Ø4.32")

Weight

Approx. 326 g (0.72 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Language

English

Power Supply

12 VDC ±25%/PoC.af *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.

Consumption

Max. 3 W

IR Range

Up to 40 m

Approval

Protection

IP67

Camera

Image Sensor5 MP CMOS
Max. Resolution2560 (H) × 1944 (V)
Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Signal SystemPAL/NTSC

Lens

Lens Type2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 93°, vertical FOV: 75°, diagonal FOV: 124° 3.6 mm, horizontal FOV: 77°, vertical FOV: 57°, diagonal FOV: 103°
Lens MountM12


Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Smart IR
Frame Rate5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image Enhancement DWDR, BLC, HLC, Global
Noise Reduction2D DNR
White BalanceAuto/Manual
AGCYes

Interface

Video Output 1 HD analog output

General

MaterialFront Cover: Plastic Main Body: Metal
Dimension91.0 mm × Ø109.8 mm (3.58" × Ø4.32")
WeightApprox. 326 g (0.72 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ±25%/PoC.af *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
ConsumptionMax. 3 W
IR RangeUp to 40 m
