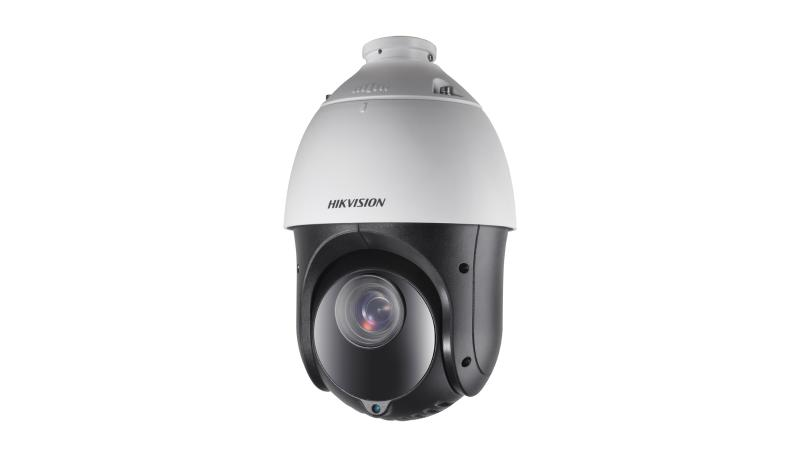

4-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome

View Less
View more
Sales Inquiry

Available models:

DS-2AE4225TI-A(E)
DS-2AE4225TI-A

Specification

  • Lens
  • Zoom SpeedApprox. 3.2 s (optical, wide to tele)
  • Working Distance10 mm to 1500 mm (wide to tele)
  • Aperture RangeF 1.6 to F 3.5
  • Horizontal Field of View57.6° to 2.5° (wide-tele)
  • Focal Length4.8 mm to 120 mm, 25× Optical
  • Image
  • Max. Resolution1920 × 1080
  • Camera Module
  • Frame Rate50Hz: 25fps @(1920 × 1080),60Hz: 30fps @(1920 × 1080)
  • AGCAUTO/MANUAL
  • DNR3D DNR
  • Regional FocusYes
  • Image Sensor1/2.8" progressive scan CMOS
  • ModelDS-2AE4225TI-A(E)
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 lux with IR
  • White BalanceAUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
  • Shutter TimePAL: 1/1 s to 1/10,000 s,NTSC: 1/1 s to 1/10,000 s
  • Day & NightIR cut filter
  • Digital Zoom16×
  • Privacy Mask8 programmable privacy masks
  • Focus ModeAuto/Semiauto/Manual
  • WDR≥ 120 dB
  • PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedPan manual speed: 0.1° to 80°/s,Pan preset speed: 80°/s
  • Movement Range (Tilt)-15° to 90° (auto flip)
  • Tilt SpeedTilt manual speed: 0.1° to 80°/s,Tilt preset speed: 80°/s
  • Proportional ZoomRotation speed can be adjusted automatically according to zoom multiples
  • Presets256
  • Patrol Scan10 patrols, up to 32 presets per patrol
  • Pattern Scan5 patterns, with the total recording time no less than 10 minutes
  • Power-off MemoryYes
  • General
  • DimensionsØ 164.5 mm × 295 mm (Ø 6.47" × 11.61")
  • 2Kg (4.41Ib.)
  • Protection LevelIP66 standard (outdoor dome),TVS 4,000 V lightning protection, surge protection and voltage transient protection
  • Power24 VAC,Max.24 W (IR:7 W)
  • Working Temperature-30° C to 65° C (-22° F to 149° F)
  • Working Humidity90% or less
  • MountingVarious mounting modes optional
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Lens
Zoom Speed
Approx. 3.2 s (optical, wide to tele)
Working Distance
10 mm to 1500 mm (wide to tele)
Aperture Range
F 1.6 to F 3.5
Horizontal Field of View
57.6° to 2.5° (wide-tele)
Focal Length
4.8 mm to 120 mm, 25× Optical
Max. Resolution
1920 × 1080
Camera Module
Frame Rate
50Hz: 25fps @(1920 × 1080),60Hz: 30fps @(1920 × 1080)
AGC
AUTO/MANUAL
DNR
3D DNR
Regional Focus
Yes
Image Sensor
1/2.8" progressive scan CMOS
Model
DS-2AE4225TI-A(E)
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 lux with IR
White Balance
AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
Shutter Time
PAL: 1/1 s to 1/10,000 s,NTSC: 1/1 s to 1/10,000 s
Day & Night
IR cut filter
Digital Zoom
16×
Privacy Mask
8 programmable privacy masks
Focus Mode
Auto/Semiauto/Manual
WDR
≥ 120 dB
PTZ
Movement Range (Pan)
360° endless
Pan Speed
Pan manual speed: 0.1° to 80°/s,Pan preset speed: 80°/s
Movement Range (Tilt)
-15° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 80°/s,Tilt preset speed: 80°/s
Proportional Zoom
Rotation speed can be adjusted automatically according to zoom multiples
Presets
256
Patrol Scan
10 patrols, up to 32 presets per patrol
Pattern Scan
5 patterns, with the total recording time no less than 10 minutes
Power-off Memory
Yes
General
Dimensions
Ø 164.5 mm × 295 mm (Ø 6.47" × 11.61")
2Kg (4.41Ib.)
Protection Level
IP66 standard (outdoor dome),TVS 4,000 V lightning protection, surge protection and voltage transient protection
Power
24 VAC,Max.24 W (IR:7 W)
Working Temperature
-30° C to 65° C (-22° F to 149° F)
Working Humidity
90% or less
Mounting
Various mounting modes optional
