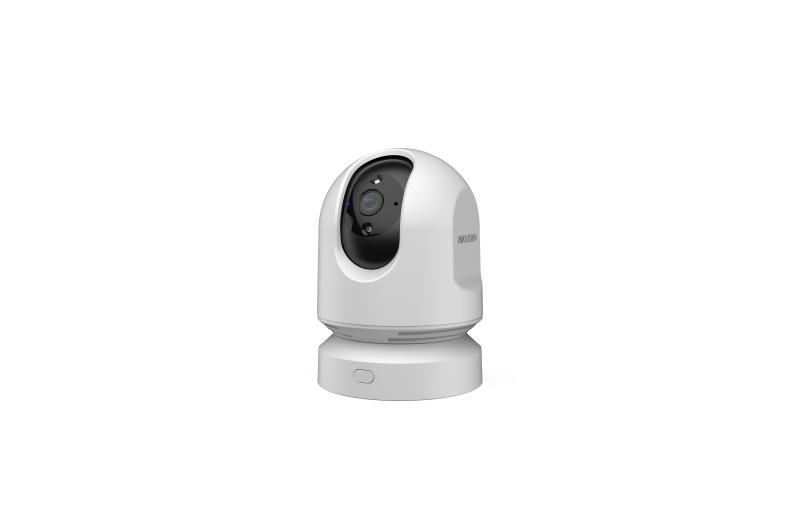

4G Mini Portable Speed Dome

1/2.9" progressive scan CMOS; 1920 × 1080/1280 × 720 resolution
H.265/H.264 video compression
Up to 10 m IR distance
Built-in TF card slot, up to 512GB
Support 4G, Wi-Fi, GPS
Quick installation with the magnetic base and the tripod bracket
Wi-Fi AP, which allows you to connect the mobile phone to the camera directly and control the camera conveniently
Built-in battery for continuous work for 12 hours
355° pan and -2.5° to 52° (auto-flip) tilt movement range for PTZ

View Less

Available models:

iDS-MCD20M/32G/GLE

iDS-MCD20M

Specification
Resources
Accessories

Camera
Image Sensor1/2.9" progressive scan CMOS
Zoom4x Digital
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.015 Lux@ (F1.0, AGC ON)
Day & NightSwitch IR Cut Filter Automatically

Lens
Focal Length3.8 mm fixed lens
ApertureF2.0
FOVHorizontal FOV: 80° Vertical FOV: 44° Diagonal FOV: 98°

Video
Video CompressionH.264, H.265
Video FormatPS
Main Stream25 fps (1920 × 1080, 1280 × 720, 704 × 576, 704 × 288, 352 × 288)
Sub-Stream25 fps (1280 × 720, 704 × 576, 704 × 288, 352 × 288)

Audio
Audio CompressionG.711ulaw, G.711alaw, G.722.1
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1)

Image FormatJPEG

Storage
RAM128MB
ROMDefault 32 GB, 64 GB/128 GB/256 /512GB optional

IR
IR RangeUp to 10 m
IR Wavelength850 nm

Wireless Network
Positioning ModeGPS
Wi-Fi Frequency Band2.412 to 2.472 GHz
Cellular NetworkAvailable for models with '/GLE', '/GLE/PIR': GSM: 850/900/1800/1900 WCDMA: B1/B8 FDD -LTE: B1/B3/B5/B7/B8/B20 TDD -LTE: B38/B40/B41
Wi-Fi Protocol 802.11 a/b/g/n

Network
ProtocolHTTPS, RTSP, NTP, FTP
APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP

Interface
Indicator1 Indicator for Charging/Working/Recording/Exception
ButtonPower
SIM CardAvailable for models with '/GLE' : 1 (Nano-SIM card slot)
Ethernet1 RJ45 10M/100M/1000M self-adaptive ethernet port(s)
Charging InterfaceType-C
Extended Storage1 Built-in memory card slot, up to 512 GB, supporting TF card
USBUSB 2.0
Audio1 built-in mic(s),1 speaker(s)
GeneralRJ45 port, USB port

PTZ
Pan0°~355°
Tilt-2.5° to 52° (Auto-flip)

General
Operating Condition-20 °C to 60 °C (-4 °F to 140 °F), Humidity 95% or less (non-condensing)
Operating SystemLinux
Storage Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
MICSupported
Speaker1 Built-in speaker, Max. power consumption: 1.2 W, Max. sound pressure level: 95 dB (10 cm)
ClientHik-Connect, HikCentral Pro, HikCentral Master
Web BrowserPlug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
Dimension94.5 mm × 94.5 mm × 132 mm (3.72" × 3.72" × 5.2")
Power5 VDC, 2.0 A, max. 10 W
Weight380 g (without mounting) (1.54 lb.)
Installation MethodDesk-Mounted, Wall-Mounted, Tripod-Mounted, Movable Bracket
Packing List1 × USB cable, 1 × wall mounted bracket

Battery
Battery TypeLithium-ion battery, integral
Capacity3220 mAh
Charging Time≤ 4 h
Battery LifeUp to 12 h in 720p resolution¹

Approval
RFEN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);
EMCCE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014
SafetyCB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018 CE-LVD: EN 62368-1: 2014/A11: 2017, EN IEC 62368-1:2020+A11:2020 CE-LVD: EN 62368-1: 2014/A11: 2017
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Warranty
Warranty 2 years for the device, 1 year for the battery

Camera

Image Sensor

1/2.9" progressive scan CMOS

Zoom

4x Digital

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.015 Lux@ (F1.0, AGC ON)

Day & Night

Switch IR Cut Filter Automatically

Lens

Focal Length

3.8 mm fixed lens

Aperture

F2.0

FOV

Horizontal FOV: 80° Vertical FOV: 44° Diagonal FOV: 98°

Video

Video Compression

H.264, H.265

Video Format

Main Stream

25 fps (1920 × 1080, 1280 × 720, 704 × 576, 704 × 288, 352 × 288)

Sub-Stream

25 fps (1280 × 720, 704 × 576, 704 × 288, 352 × 288)

Audio

Audio Compression

G.711ulaw, G.711alaw, G.722.1

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1)


Image Format

JPEG

Storage

RAM

128MB

ROM

Default 32 GB, 64 GB/128 GB/256 /512GB optional

IR Range

Up to 10 m

IR Wavelength

850 nm

Wireless Network

Positioning Mode

GPS

Wi-Fi Frequency Band

2.412 to 2.472 GHz

Cellular Network

Available for models with '/GLE', '/GLE/PIR': GSM: 850/900/1800/1900 WCDMA: B1/B8 FDD -LTE: B1/B3/B5/B7/B8/B20 TDD -LTE: B38/B40/B41

Wi-Fi Protocol

802.11 a/b/g/n

Network

Protocol

HTTPS, RTSP, NTP, FTP

API

ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP

Interface

Indicator

1 Indicator for Charging/Working/Recording/Exception

Button

Power

SIM Card

Available for models with '/GLE' : 1 (Nano-SIM card slot)

Ethernet

1 RJ45 10M/100M/1000M self-adaptive ethernet port(s)

Charging Interface

Type-C

Extended Storage

1 Built-in memory card slot, up to 512 GB, supporting TF card

USB

USB 2.0

Audio

1 built-in mic(s),1 speaker(s)

General

RJ45 port, USB port

PTZ

Pan

0°~355°

Tilt

-2.5° to 52° (Auto-flip)

General

Operating Condition

-20 °C to 60 °C (-4 °F to 140 °F), Humidity 95% or less (non-condensing)

Operating System

Linux

Storage Condition

-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)

MIC

Supported

Speaker

1 Built-in speaker, Max. power consumption: 1.2 W, Max. sound pressure level: 95 dB (10 cm)

Client

Hik-Connect, HikCentral Pro, HikCentral Master

Web Browser

Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+

Dimension

94.5 mm × 94.5 mm × 132 mm (3.72" × 3.72" × 5.2")

Power

5 VDC, 2.0 A, max. 10 W

Weight

380 g (without mounting) (1.54 lb.)

Installation Method

Desk-Mounted, Wall-Mounted, Tripod-Mounted, Movable Bracket

Packing List

1 × USB cable, 1 × wall mounted bracket

Battery

Battery Type

Lithium-ion battery, integral

Capacity

3220 mAh

Charging Time

≤ 4 h

Battery Life

Up to 12 h in 720p resolution¹

Approval

EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);

EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014

Safety

CB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018 CE-LVD: EN 62368-1: 2014/A11: 2017, EN IEC 62368-1:2020+A11:2020 CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Warranty

2 years for the device, 1 year for the battery
