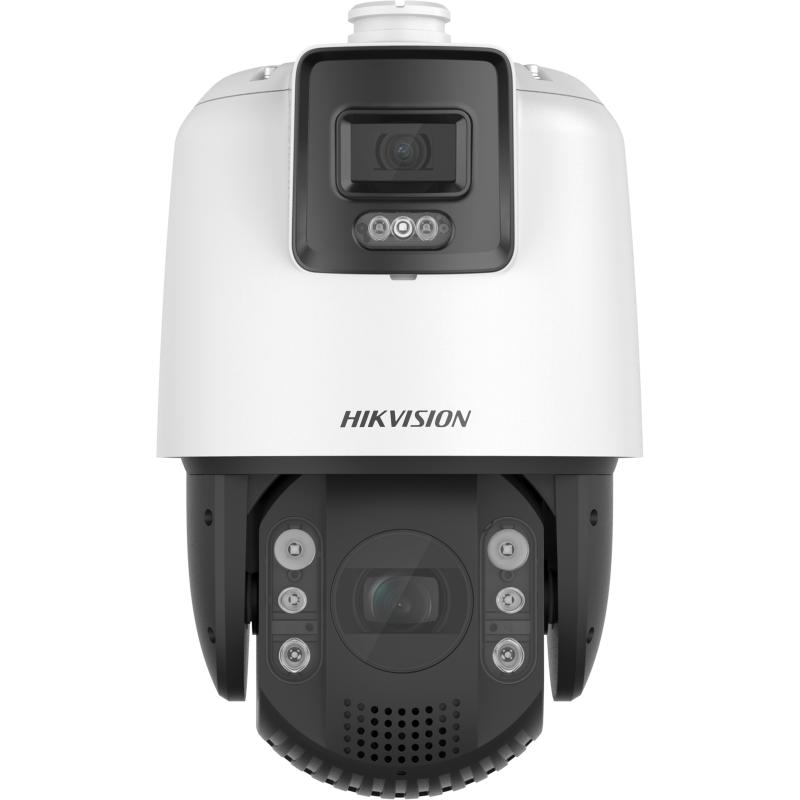

TandemVu 7-inch 2 MP 32X Powered by DarkFighter IR Network Speed Dome

1/2.8" Progressive Scan CMOS
Up to 2560× 1440@30fps resolution
Min. illumination: [PTZ channel]：Color：0.005Lux @ (F1.2，AGC ON),B/W：0.001Lux @ (F1.2，AGC ON) ,[panoramic channel]：0.005Lux @(F1.6,AGC ON) ,0 Lux with IR
32× optical zoom, 16× digital zoom
WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus, Rapid Focus
Up to 200 m IR distance
24 VAC & Hi-PoE
Support H.265+/H.265 video compression
Supports audio visual alarm. The white flashing light and audible warning can be triggered by certain events, and the warning content is selectable

View Less

Available models:

DS-2SE7C124IW-AE(32X/4)(S5)

DS-2SE7C124IW-AE(32x/4)(S5)

Specification
Resources
Accessories

Camera
Image Sensor[panoramic channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
Max. Resolution2560 × 1440
Min. Illumination[PTZ channel]: Color: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON); [panoramic channel]: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1/1 s to 1/30000 s
Day & NightICR
Zoom16x digital
Slow Shutteryes
HLCyes
3D DNRyes
Optical Zoom32x

Lens
Focal Length[panoramic channel]: 4 mm; [PTZ channel]: 4.8 to 153 mm, 32 ×
FOV[panoramic channel]: Horizontal field of view: 79°, Vertical field of view: 42.4°; [PTZ channel]: Horizontal field of view: 58.4° to 2.14° (wide-tele), Vertical field of view: 33.8° to 1.2° (wide-tele), Diagonal field of view: 65.6° to 2.46° (wide-tele)
Focussemi-auto||manual||auto
Aperture[panoramic channel]: F1.6; [PTZ channel]: F1.2
Zoom Speedapprox. 4.2 s

Illuminator
Supplement Light Range200 m

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Panyes
Presets300
Preset Freezingyes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
3D Positioningyes
PTZ Status Displayyes
Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
Power-off Memoryyes

Video
Main Stream[panoramic channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps ( 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream[panoramic channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream[panoramic channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265||H.264||MJPEG
Video Bit Rate32 kbps to 16384 kbps
H.264 TypeBaseline Profile||Main Profile||High Profile||baseline profile||main profile||high profile
H.265 TypeMain Profile||main profile
Scalable Video Coding (SVC)yes
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711alaw||G.711ulaw||G.722.1||G.726||MP2L2||PCM
Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps||192kbps
Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filteringyes

Network
ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour
Simultaneous Live View20
APIISAPI||Hikvision SDK||ONVIF (Profile S, Profile G, Profile T)||ISUP
Smooth Streamingyes
User/Host32
SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
Network StorageNAS (NFS, SMB/ CIFS)|| ANR||ANR
ClientiVMS-4200
Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+

Image Settingssaturation||brightness||contrast||sharpness
Day/Night Switchday, night, auto, scheduled-switch
Wide Dynamic Range (WDR)120 dB WDR
SNR＞52dB
Defogyes
Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
Image EnhancementBLC, HLC, 3D DNR
Privacy Maskpolygon region ||mosaic mask ||mask color configurable||[panoramic channel] 8 masks, [PTZ channel] 24 masks||[panoramic channel]：up to 24 masks [PTZ channel]:up to 8 masks
Regional Focusyes
Regional Exposureyes

Interface
Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board Storagesupport microSD/microSDHC/microSDXC cards||up to 256 GB
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
Alarm2 input(s), 1 output(s)
Resetyes

Event
Basic Eventmotion detection||alarm input||alarm output||video tampering alarm||exception
Smart Eventintrusion detection||line crossing detection||region entrance detection||region exiting detection||audio exception detection
Linkagepreset||patrol scan||pattern scan||memory card video recording||alarm output||sending email||notify surveillance center|| upload to FTP||smart tracking
Smart Trackingmanual tracking||event tracking

Deep Learning Function
Face Captureno

General
Power24 VAC, Hi-PoE
DimensionØ 220.0 mm × 373.3 mm (Ø 8.7" × 14.7")
WeightApprox. 6 kg (13.23 lb.)
MaterialADC 12, PC, PC+10%GF
Operating Condition-30℃ to 65℃ (-22°F to 149°F) ||humidity: ≤ 90%
DemistDemist by heating the glass
Power Consumption and CurrentMax. 60 W, including max. 3.7 W for heater and max. 16 W for supplement light

Approval
ProtectionIP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection

Camera

Image Sensor

[panoramic channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

[PTZ channel]: Color: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON); [panoramic channel]: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/1 s to 1/30000 s

Day & Night

ICR

Zoom

16x digital

Slow Shutter

yes

HLC

yes

3D DNR

yes

Optical Zoom

32x

Lens

Focal Length

[panoramic channel]: 4 mm; [PTZ channel]: 4.8 to 153 mm, 32 ×

FOV

[panoramic channel]: Horizontal field of view: 79°, Vertical field of view: 42.4°; [PTZ channel]: Horizontal field of view: 58.4° to 2.14° (wide-tele), Vertical field of view: 33.8° to 1.2° (wide-tele), Diagonal field of view: 65.6° to 2.46° (wide-tele)

Focus

semi-auto||manual||auto

Aperture

[panoramic channel]: F1.6; [PTZ channel]: F1.2

Zoom Speed

approx. 4.2 s

Illuminator

Supplement Light Range

200 m

PTZ

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s

Tilt Speed

tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s

Proportional Pan

yes

Presets

300

Preset Freezing

yes

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans

Park Action

preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan

3D Positioning

yes

PTZ Status Display

yes

Scheduled Task

preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output

Power-off Memory

yes

Video

Main Stream

[panoramic channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps ( 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

[panoramic channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

[panoramic channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

H.265||H.264||MJPEG

Video Bit Rate

32 kbps to 16384 kbps

H.264 Type

Baseline Profile||Main Profile||High Profile||baseline profile||main profile||high profile

H.265 Type

Main Profile||main profile

Scalable Video Coding (SVC)

yes

Region of Interest (ROI)

8 fixed regions for each stream

Audio

Audio Compression

G.711alaw||G.711ulaw||G.722.1||G.726||MP2L2||PCM

Audio Bit Rate

MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps||192kbps

Audio Sampling Rate

MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz

Environment Noise Filtering

yes

Network

Protocols

IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour

Simultaneous Live View

API

ISAPI||Hikvision SDK||ONVIF (Profile S, Profile G, Profile T)||ISUP

Smooth Streaming

yes

User/Host

Security

Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter

Network Storage

NAS (NFS, SMB/ CIFS)|| ANR||ANR

Client

iVMS-4200

Web Browser

IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+


Image Settings

saturation||brightness||contrast||sharpness

Day/Night Switch

day, night, auto, scheduled-switch

Wide Dynamic Range (WDR)

120 dB WDR

SNR

＞52dB

Defog

yes

Image Stabilization

EIS (Built-in gyroscope to improve EIS performance)

Image Enhancement

BLC, HLC, 3D DNR

Privacy Mask

polygon region ||mosaic mask ||mask color configurable||[panoramic channel] 8 masks, [PTZ channel] 24 masks||[panoramic channel]：up to 24 masks [PTZ channel]:up to 8 masks

Regional Focus

yes

Regional Exposure

yes

Interface

Ethernet Interface

RJ45, self-adaptive 10M/100M Ethernet port

On-board Storage

support microSD/microSDHC/microSDXC cards||up to 256 GB

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω

Alarm

2 input(s), 1 output(s)

Reset

yes

Event

Basic Event

motion detection||alarm input||alarm output||video tampering alarm||exception

Smart Event

intrusion detection||line crossing detection||region entrance detection||region exiting detection||audio exception detection

Linkage

preset||patrol scan||pattern scan||memory card video recording||alarm output||sending email||notify surveillance center|| upload to FTP||smart tracking

Smart Tracking

manual tracking||event tracking

Deep Learning Function

Face Capture

General

Power

24 VAC, Hi-PoE

Dimension

Ø 220.0 mm × 373.3 mm (Ø 8.7" × 14.7")

Weight

Approx. 6 kg (13.23 lb.)

Material

ADC 12, PC, PC+10%GF

Operating Condition

-30℃ to 65℃ (-22°F to 149°F) ||humidity: ≤ 90%

Demist

Demist by heating the glass

Power Consumption and Current

Max. 60 W, including max. 3.7 W for heater and max. 16 W for supplement light

Approval

Protection

IP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection

Camera

Image Sensor[panoramic channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
Max. Resolution2560 × 1440
Min. Illumination[PTZ channel]: Color: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON); [panoramic channel]: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1/1 s to 1/30000 s
Day & NightICR
Zoom16x digital
Slow Shutteryes
HLCyes
3D DNRyes
Optical Zoom32x

Lens

Focal Length[panoramic channel]: 4 mm; [PTZ channel]: 4.8 to 153 mm, 32 ×
FOV[panoramic channel]: Horizontal field of view: 79°, Vertical field of view: 42.4°; [PTZ channel]: Horizontal field of view: 58.4° to 2.14° (wide-tele), Vertical field of view: 33.8° to 1.2° (wide-tele), Diagonal field of view: 65.6° to 2.46° (wide-tele)
Focussemi-auto||manual||auto
Aperture[panoramic channel]: F1.6; [PTZ channel]: F1.2
Zoom Speedapprox. 4.2 s

Illuminator

Supplement Light Range200 m

PTZ

Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Panyes
Presets300
Preset Freezingyes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
3D Positioningyes
PTZ Status Displayyes
Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
Power-off Memoryyes

Video

Main Stream[panoramic channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps ( 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream[panoramic channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream[panoramic channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265||H.264||MJPEG
Video Bit Rate32 kbps to 16384 kbps
H.264 TypeBaseline Profile||Main Profile||High Profile||baseline profile||main profile||high profile
H.265 TypeMain Profile||main profile
Scalable Video Coding (SVC)yes
Region of Interest (ROI)8 fixed regions for each stream

Audio

Audio CompressionG.711alaw||G.711ulaw||G.722.1||G.726||MP2L2||PCM
Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps||192kbps
Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filteringyes

Network

ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour
Simultaneous Live View20
APIISAPI||Hikvision SDK||ONVIF (Profile S, Profile G, Profile T)||ISUP
Smooth Streamingyes
User/Host32
SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
Network StorageNAS (NFS, SMB/ CIFS)|| ANR||ANR
ClientiVMS-4200
Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+


Image Settingssaturation||brightness||contrast||sharpness
Day/Night Switchday, night, auto, scheduled-switch
Wide Dynamic Range (WDR)120 dB WDR
SNR＞52dB
Defogyes
Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
Image EnhancementBLC, HLC, 3D DNR
Privacy Maskpolygon region ||mosaic mask ||mask color configurable||[panoramic channel] 8 masks, [PTZ channel] 24 masks||[panoramic channel]：up to 24 masks [PTZ channel]:up to 8 masks
Regional Focusyes
Regional Exposureyes

Interface

Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board Storagesupport microSD/microSDHC/microSDXC cards||up to 256 GB
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
Alarm2 input(s), 1 output(s)
Resetyes

Event

Basic Eventmotion detection||alarm input||alarm output||video tampering alarm||exception
Smart Eventintrusion detection||line crossing detection||region entrance detection||region exiting detection||audio exception detection
Linkagepreset||patrol scan||pattern scan||memory card video recording||alarm output||sending email||notify surveillance center|| upload to FTP||smart tracking
Smart Trackingmanual tracking||event tracking

Deep Learning Function

Face Captureno

General

Power24 VAC, Hi-PoE
DimensionØ 220.0 mm × 373.3 mm (Ø 8.7" × 14.7")
WeightApprox. 6 kg (13.23 lb.)
MaterialADC 12, PC, PC+10%GF
Operating Condition-30℃ to 65℃ (-22°F to 149°F) ||humidity: ≤ 90%
DemistDemist by heating the glass
Power Consumption and CurrentMax. 60 W, including max. 3.7 W for heater and max. 16 W for supplement light
