DS-KIS602/S#Europe

    EOL

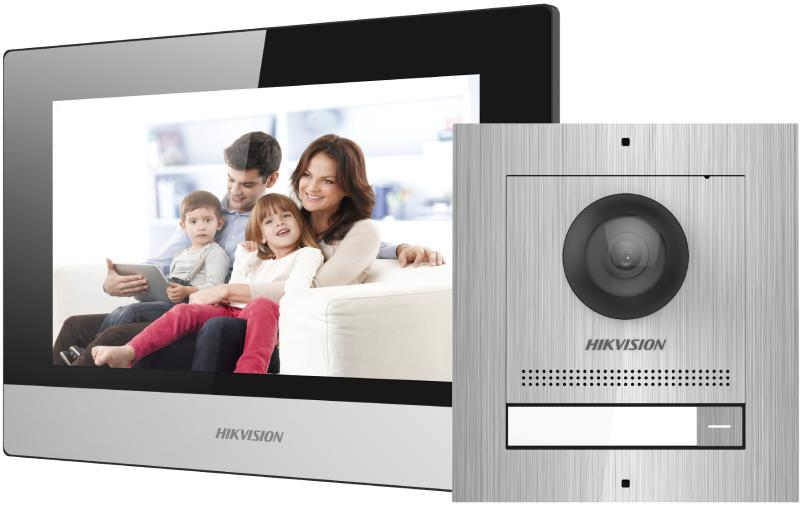

    Video Intercom KIT

    • IP video intercom kit for villa or house, only one call button
    • DS-KD8003-IME1/Surface x1
    • DS-KH6320-WTE1 x1
    • 4 port standard PoE switch x1
    • 16GB TF card x1
    • European power supply adaptor included (please mark for other standards when you order)
    View Less
    View more

    Available models:

    DS-KIS602/S

    Specification

    • System parameters
    • ProcessorEmbedded MCU Processor
    • Operation systemEmbedded Linux Operation System
    • Display parameters
    • Display Resolution1024 × 600
    • Display Screen7-inch colorful TFT screen
    • Audio parameters
    • Audio Compression Rate64 Kbps
    • Audio Compression StandardG.711 U
    • Audio InputBuilt-in omnidirectional microphone
    • Audio OutputBuilt-in loudspeaker
    • Audio QualityNoise suppression and echo cancellation
    • Network parameters
    • Ethernet10/100 Mbps Self-Adaptive Ethernet
    • Network protocolTCP/IP, RTSP
    • Device interfaces
    • I/O input4
    • I/O output2
    • General
    • Power supply12 VDC/PoE ( IEEE 802.3af)
    • Power consumption≤10 W
    • Working temperature-40° C to +60° C (-40° F to 140° F)
    • Working humidity10% to 95%
    • Dimension (L x W x D)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
    • Weight683 g (with packaging) 355 g (without packaging)
    • IP protection levelIP65
    • Memory128 MB
    • Dimensions(L × W × H)98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
    • Door station/Video parameters
    • Resolution1920 × 1080
    • Lens1/2.7" CMOS
    • Door station/Audio parameters
    • Audio inputBuilt-in omnidirectional microphone
    • Audio outputBuilt-in loudspeaker
    • Door station/Device interfaces
    • I/O output1 relay output
    • Four-wire1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power,supply, 1-ch grounding)
    • Door station/General
    • Power supply12 VDC
    • Power consumptionMax. 5W
    • Working temperature-10° C to + 55° C (14° F to 131° F)
    • Working humidity10% to 90%
    • Dimensions128 mm × 42 mm × 24.8 mm
    • Indoor station/Display parameters
    • Operation methodPhysical button
    • Type7-inch colorful TFT LCD
    • Resolution800 × 480
    • Indoor station/Audio parameters
    • Audio inputBuilt-in omnidirectional microphone
    • Audio outputBuilt-in loudspeaker
    • Audio qualityNoise suppression and echo cancellation
    • Indoor station/General
    • Power supply12 VDC
    • Power consumption≤5 W
    • Working temperature-10° C to + 55° C (14° F to 131° F)
    • Working humidity10% to 90%
    • Dimensions (W × H × D)195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    System parameters
    Processor
    Embedded MCU Processor
    Operation system
    Embedded Linux Operation System
    Display parameters
    Display Resolution
    1024 × 600
    Display Screen
    7-inch colorful TFT screen
    Audio parameters
    Audio Compression Rate
    64 Kbps
    Audio Compression Standard
    G.711 U
    Audio Input
    Built-in omnidirectional microphone
    Audio Output
    Built-in loudspeaker
    Audio Quality
    Noise suppression and echo cancellation
    Network parameters
    Ethernet
    10/100 Mbps Self-Adaptive Ethernet
    Network protocol
    TCP/IP, RTSP
    Device interfaces
    I/O input
    4
    I/O output
    2
    General
    Power supply
    12 VDC/PoE ( IEEE 802.3af)
    Power consumption
    ≤10 W
    Working temperature
    -40° C to +60° C (-40° F to 140° F)
    Working humidity
    10% to 95%
    Dimension (L x W x D)
    200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
    Weight
    683 g (with packaging) 355 g (without packaging)
    IP protection level
    IP65
    Memory
    128 MB
    Dimensions(L × W × H)
    98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
    Door station/Video parameters
    Resolution
    1920 × 1080
    Lens
    1/2.7" CMOS
    Door station/Audio parameters
    Audio input
    Built-in omnidirectional microphone
    Audio output
    Built-in loudspeaker
    Door station/Device interfaces
    I/O output
    1 relay output
    Four-wire
    1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power,supply, 1-ch grounding)
    Door station/General
    Power supply
    12 VDC
    Power consumption
    Max. 5W
    Working temperature
    -10° C to + 55° C (14° F to 131° F)
    Working humidity
    10% to 90%
    Dimensions
    128 mm × 42 mm × 24.8 mm
    Indoor station/Display parameters
    Operation method
    Physical button
    Type
    7-inch colorful TFT LCD
    Resolution
    800 × 480
    Indoor station/Audio parameters
    Audio input
    Built-in omnidirectional microphone
    Audio output
    Built-in loudspeaker
    Audio quality
    Noise suppression and echo cancellation
    Indoor station/General
    Power supply
    12 VDC
    Power consumption
    ≤5 W
    Working temperature
    -10° C to + 55° C (14° F to 131° F)
    Working humidity
    10% to 90%
    Dimensions (W × H × D)
    195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    System parameters
    • ProcessorEmbedded MCU Processor
    • Operation systemEmbedded Linux Operation System
    Display parameters
    • Display Resolution1024 × 600
    • Display Screen7-inch colorful TFT screen
    Audio parameters
    • Audio Compression Rate64 Kbps
    • Audio Compression StandardG.711 U
    • Audio InputBuilt-in omnidirectional microphone
    • Audio OutputBuilt-in loudspeaker
    • Audio QualityNoise suppression and echo cancellation
    Network parameters
    • Ethernet10/100 Mbps Self-Adaptive Ethernet
    • Network protocolTCP/IP, RTSP
    Device interfaces
    • I/O input4
    • I/O output2
    General
    • Power supply12 VDC/PoE ( IEEE 802.3af)
    • Power consumption≤10 W
    • Working temperature-40° C to +60° C (-40° F to 140° F)
    • Working humidity10% to 95%
    • Dimension (L x W x D)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
    • Weight683 g (with packaging) 355 g (without packaging)
    • IP protection levelIP65
    • Memory128 MB
    • Dimensions(L × W × H)98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
    Door station/Video parameters
    • Resolution1920 × 1080
    • Lens1/2.7" CMOS
    Door station/Audio parameters
    • Audio inputBuilt-in omnidirectional microphone
    • Audio outputBuilt-in loudspeaker
    Door station/Device interfaces
    • I/O output1 relay output
    • Four-wire1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power,supply, 1-ch grounding)
    Door station/General
    • Power supply12 VDC
    • Power consumptionMax. 5W
    • Working temperature-10° C to + 55° C (14° F to 131° F)
    • Working humidity10% to 90%
    • Dimensions128 mm × 42 mm × 24.8 mm
    Indoor station/Display parameters
    • Operation methodPhysical button
    • Type7-inch colorful TFT LCD
    • Resolution800 × 480
    Indoor station/Audio parameters
    • Audio inputBuilt-in omnidirectional microphone
    • Audio outputBuilt-in loudspeaker
    • Audio qualityNoise suppression and echo cancellation
    Indoor station/General
    • Power supply12 VDC
    • Power consumption≤5 W
    • Working temperature-10° C to + 55° C (14° F to 131° F)
    • Working humidity10% to 90%
    • Dimensions (W × H × D)195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
