EOL

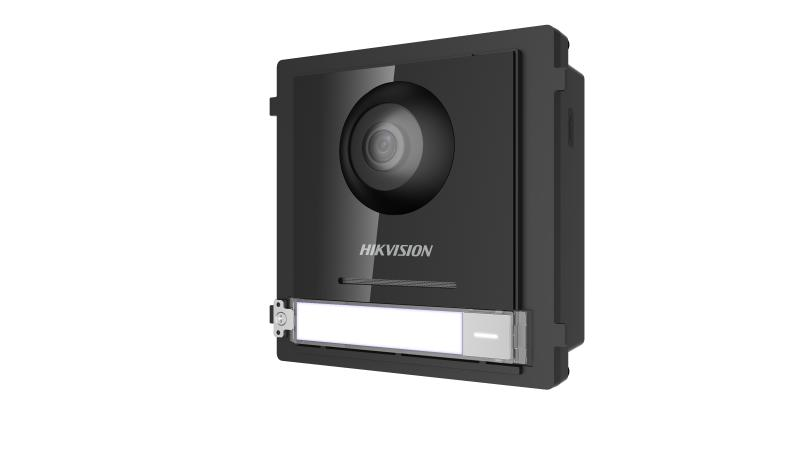

KD8 Series Pro Modular Door Station

  • Modular door station Main unit, needs mounting bracket
  • 2MP HD Colorful Camera, Fish eye, IR Supplement
  • 1 Call physical Button, 2 lock relays, 4-ch alarm input
  • IP65, 12 VDC or standard POE (for E1) or Power over 2-wire (for E2)
  • Video intercom to indoor station and master station
View Less
View more
Sales Inquiry

Available models:

DS-KD8003-IME1(Europe BV)
DS-KD8003-IME1#EU
EOL

Specification

  • System parameters
  • ProcessorEmbedded MCU Processor
  • Operation systemEmbedded Linux Operation System
  • Network parameters
  • Ethernet10/100 Mbps Self-Adaptive Ethernet
  • Network protocolTCP/IP, RTSP
  • Device interfaces
  • I/O input4
  • I/O output2
  • General
  • Power supply12 VDC/PoE ( IEEE 802.3af)
  • Power consumption≤10 W
  • Working temperature-40° C to +60° C (-40° F to 140° F)
  • Working humidity10% to 95%
  • IP protection levelIP65
  • Dimensions(L × W × H)98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System parameters
Processor
Embedded MCU Processor
Operation system
Embedded Linux Operation System
Network parameters
Ethernet
10/100 Mbps Self-Adaptive Ethernet
Network protocol
TCP/IP, RTSP
Device interfaces
I/O input
4
I/O output
2
General
Power supply
12 VDC/PoE ( IEEE 802.3af)
Power consumption
≤10 W
Working temperature
-40° C to +60° C (-40° F to 140° F)
Working humidity
10% to 95%
IP protection level
IP65
Dimensions(L × W × H)
98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System parameters
  • ProcessorEmbedded MCU Processor
  • Operation systemEmbedded Linux Operation System
Network parameters
  • Ethernet10/100 Mbps Self-Adaptive Ethernet
  • Network protocolTCP/IP, RTSP
Device interfaces
  • I/O input4
  • I/O output2
General
  • Power supply12 VDC/PoE ( IEEE 802.3af)
  • Power consumption≤10 W
  • Working temperature-40° C to +60° C (-40° F to 140° F)
  • Working humidity10% to 95%
  • IP protection levelIP65
  • Dimensions(L × W × H)98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.2.52_220216
Applied to:
DS-KD8003-IME1(Europe BV)
