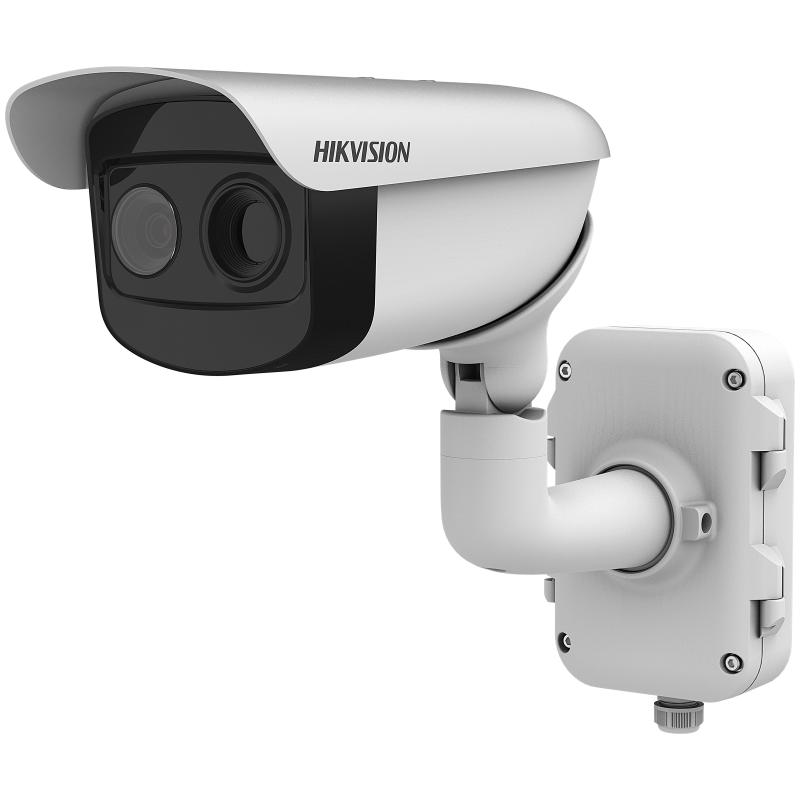

Thermal & Optical Bi-spectrum Network Bullet Camera

  • High sensitivity thermal module with 640 × 512 resolution
  • NETD is less than 40 mk (@25° C, F#=1.0)
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Powerful perimeter protection functions, based on intelligent algorithm: Line crossing, intrusion, region entrance & exit
  • Reliable temperature-anomaly alarm
  • Advanced fire detection algorithm
  • High quality optical module with 2 MP resolution

View Less
View more

Available models:

DS-2TD2866-25/V1

Specification

  • Thermal Module
  • Image sensorVanadium Oxide Uncooled Focal Plane Arrays
  • Pixel Interval17μm
  • NETDless than 40 mk (0.04°C), F#=1.0
  • MRAD0.68 mrad
  • Field of View24.55°× 19.75° (H × V)
  • Min. Focusing Distance13 m
  • ApertureF 1.0
  • Lens (Focal Length)25 mm
  • Response waveband8μm to 14μm
  • Max. Resolution640 × 512
  • Optical Module
  • Max. Resolution1920 × 1080
  • Image Sensor1/2.8” Progressive Scan CMOS
  • Min. IlluminationColor: 0.001 Lux @(F1.2, AGC ON), B/W: 0.0001 Lux @(F1.2, AGC ON)
  • Field of View43° × 25°(H × V)
  • WDR120 dB
  • Shutter Speed1s to 1/100,000s
  • Day & NightIR cut filter with auto switch
  • Focal Length7 mm
  • Image Function
  • Bi-spectrum Image FusionFusion view of thermal view and overlaid details of the optical channel
  • Picture in PictureCombins details of thermal and optical image PIP, overlay thermal image on optical image
  • Smart Function
  • VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
  • Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
  • Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy±8 °C (14.4 °F)
  • Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
  • Infrared
  • IR DistanceUp to 100 m
  • IR Intensity and AngleAutomatically adjusted
  • Network
  • Main StreamVisible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720),Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720),Thermal: 50fps (1280 × 768, 704 × 576, 384 × 288, 352 × 288)
  • Sub streamVisible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144),Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120),Thermal: 50fps (704 × 576, 384 × 288, 352 × 288)
  • Video compressionH.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
  • Audio compressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Simultaneous live viewUp to 20
  • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
  • Security measuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
