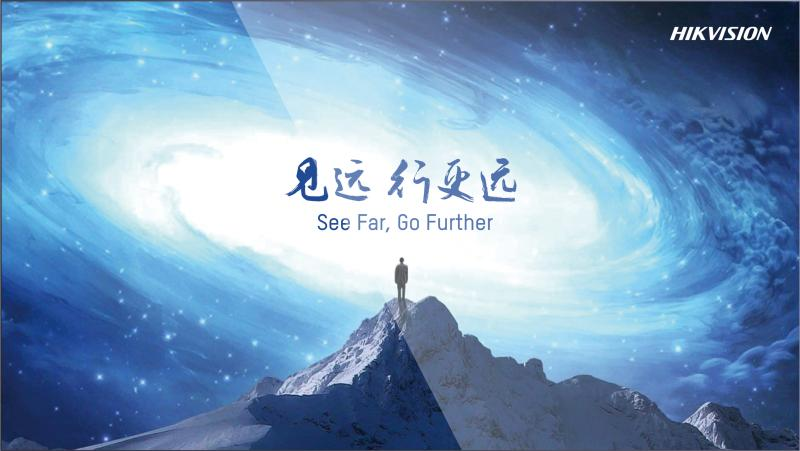

65-inch 3.5mm LCD Display Unit

4K signal input, auto loop up to 30 screens with HDMI interfaces
Switching between six picture modes: Standard/Meeting/Movie/Monitoring/Text/User
Factory calibration for color and brightness uniformity
Direct-lit LED backlight with uniform brightness and no boundary shadows
3840 × 2160 resolution, 178° viewing angle
Ultra-narrow 3.5 mm bezel design
Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
Stable and 24-hour continuous working
Metal casing for preventing from radiation and magnetic & electric field interference
Wall-mount and modular brackets available to meet various installation requirements

View Less

Data Sheet

Available models:

DS-D2065LU-Y

Specification
Resources
Accessories

Data Sheet

Display
Screen Size65 inch
Active Display Area1428.48 (H) mm × 803.52 (V) mm
BacklightDirect-lit LED backlight
Pixel Pitch0.372 mm
Bezel Width2.3 mm (top/left), 1.2 mm (bottom/right)
Resolution3840 × 2160@60 Hz (downward compatible)
Brightness500 cd/m²
Viewing AngleHorizontal 178°, vertical 178°
Color Depth8 bit, 16.7 M
Contrast Ratio1200 : 1
Physical Seam3.5 mm
Response Time10 ms
Color Gamut72% NTSC
Surface TreatmentHaze 25%, 3H

Interface
Video & Audio InputHDMI × 1, DVI × 1, VGA × 1, DP× 1, USB × 1
Video & Audio OutputHDMI × 1
Control InterfaceRS232 IN × 1, RS232 OUT × 1

Power
Power Supply100-240 VAC, 50/60 Hz
Power Consumption≤ 260 W
Standby Consumption≤ 0.5 W

Working Environment
Working Temperature0°C to 40°C (32°F to 104°F)
Working Humidity10% to 80% RH (non-condensing)
Storage Temperature-20°C to 60°C (-4°F to 140°F)
Storage Humidity10% to 90% RH (non-condensing)

General
Casing MaterialSECC
VESA800 (H) mm × 600 (V) mm
Product Dimension (W × H × D)1432.58 mm × 807.62 mm × 85.1 mm (56.4'' × 31.8'' × 3.35'')
Package Dimension (W × H × D)Carton with a single display: 1630 mm × 1013 mm × 302 mm (64.17'' × 39.88'' × 11.89'')
Net Weight29.2 ± 0.5 kg (64.37 ± 1.1 lb) for single display
Gross WeightCarton with a single display: 59.4 ± 0.5 kg (130.95 ± 1.1 lb)
Packing ListLCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
