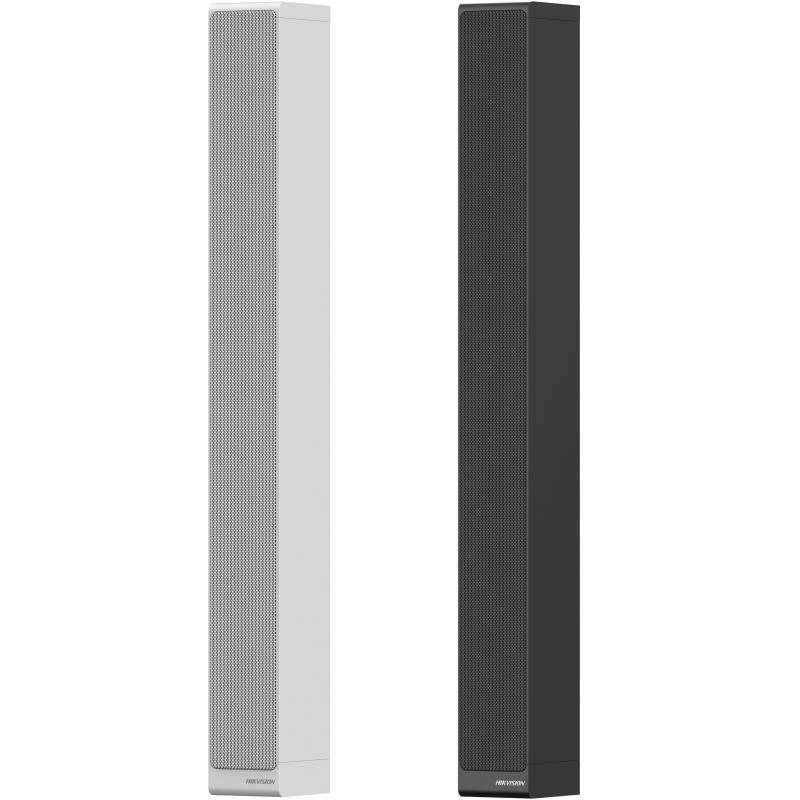

2.25-inch Linear Speaker Column 150W

150 W rated power
12 × 2.25" neodymium magnet driver design
Sensitivity(1 m, 1 W): 90 dB
Frequency response: 100 Hz to 18 KHz
Coverage angle: horizontal dispersion angle: 160°, vertical radiation angle: normal 25° (default), wide 30°
Maximum sound pressure level: 117 dB @1 m
12 speaker units comprise a linear array with a compact layout, forming a vertically directional sound field
Two color options available: black and white

View Less

View more

Available models:

DS-QAPS4R15-2

DS-QAPS4R15-2

DS-QAPS4R15-2

Specification
Resources
Accessories

Speaker
Impedance 8 Ω
Rated Power 150 W
Total Harmonic Distortion (THD) ＜5%
Sensitivity(1 m, 1 W) 90 dB @1 m/1 W
Dimension 919 × 95 × 131.3 mm (36.18: × 3.74" × 5.17")
8.3 kg (18.3 lb.)
Max. Acoustic Pressure 117 dB @1 m
Frequency Response 100 Hz to 18 KHz
Coverage Angle Horizontal dispersion angle: 160°, vertical radiation angle: normal 25° (default), wide 30°

Interface
Device Interface Speakon connector 3-Pin phoenix connector
Audio In Analog audio signal input

General
Material Main body: aluminum alloy Grille: steel
Operating Condition -10℃ to 50℃ (14 °F to 122 °F)
Package Dimension 1055 × 220 × 255 mm (41.54 × 8.66" × 10.04")
Color Black/White
Packing List Device × 1 Regulatory Compliance and Safety Information × 1 Speakon Connector × 1 3-Pin Phoenix Connector × 1 Bracket Component Kit × 1
Installation Wall Mount

Speaker

Impedance

8 Ω

Rated Power

150 W

Total Harmonic Distortion (THD)

＜5%

Sensitivity(1 m, 1 W)

90 dB @1 m/1 W

Dimension

919 × 95 × 131.3 mm (36.18: × 3.74" × 5.17")

8.3 kg (18.3 lb.)

Max. Acoustic Pressure

117 dB @1 m

Frequency Response

100 Hz to 18 KHz

Coverage Angle

Horizontal dispersion angle: 160°, vertical radiation angle: normal 25° (default), wide 30°

Interface

Device Interface

Speakon connector 3-Pin phoenix connector

Audio In

Analog audio signal input

General

Material

Main body: aluminum alloy Grille: steel

Operating Condition

-10℃ to 50℃ (14 °F to 122 °F)

Package Dimension

1055 × 220 × 255 mm (41.54 × 8.66" × 10.04")

Color

Black/White

Packing List

Device × 1 Regulatory Compliance and Safety Information × 1 Speakon Connector × 1 3-Pin Phoenix Connector × 1 Bracket Component Kit × 1

Installation

Wall Mount

Technical documents

Language: English

Quick Start Guide EN
