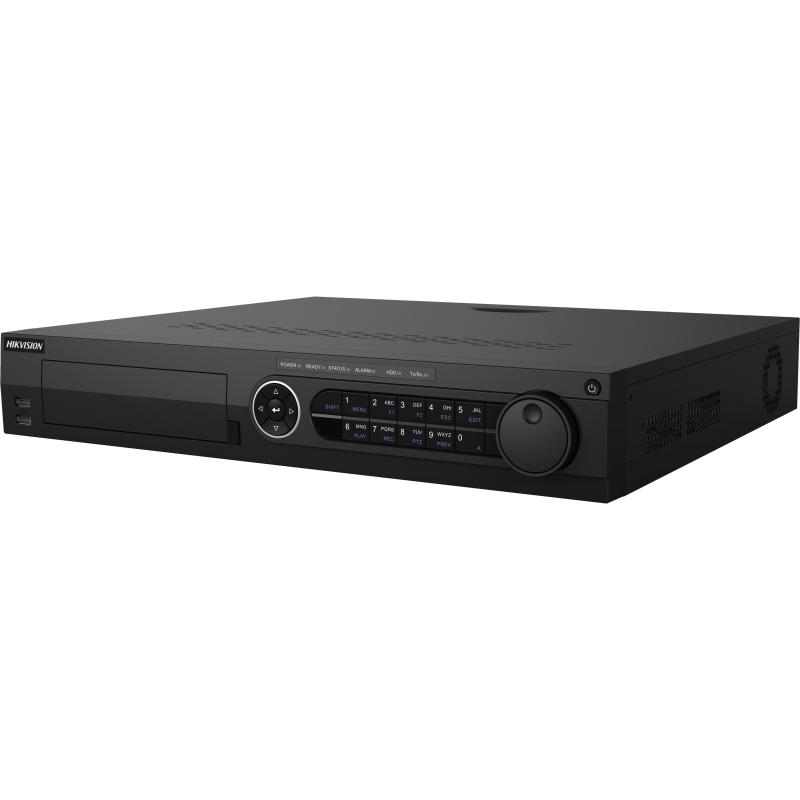

32-ch 1080p 1.5U H.265 DVR

  • 32 channels and 4 HDDs 1.5U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 48 network cameras can be connected
  • Supports POS triggered recording and POS information overlay
View Less
View more
Sales Inquiry

Available models:

DS-7332HQHI-K4
DS-7332HQHI-K4
NEW

Specification

  • Video and Audio
  • IP Video Input16-ch (up to 48-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input32-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 *: The 3 MP signal input is only available for channel 1/2/3/4.
  • AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputPAL/NTSC
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • HDMI 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI 2 Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
  • Synchronous Playback16-ch
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding ResolutionWhen 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
  • Frame RateMain stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p/720p@15fps; WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Video Bitrate32 Kbps to 6 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Network
  • Remote Connection128
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
  • Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • Auxiliary Interface
  • Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard
  • SATA4 SATA interfaces
  • eSATASupport
  • CapacityUp to 10 TB capacity for each disk
  • Alarm In/Out16/4
  • USB InterfaceFront panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0
  • General
  • Alimentation100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 45 W (without HDD)
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
  • Weight≤ 7 kg (15.4 lb., without HDD)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video and Audio
IP Video Input
16-ch (up to 48-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
32-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 *: The 3 MP signal input is only available for channel 1/2/3/4.
AHD Input
4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input
1080p25, 1080p30, 720p25, 720p30
CVBS Input
PAL/NTSC
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI 1 Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input
4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Synchronous Playback
16-ch
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate
Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p/720p@15fps; WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate
32 Kbps to 6 Mbps
Dual-stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Remote Connection
128
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
Network Interface
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
Serial Interface
RS-232, RS-485 (full-duplex), Keyboard
SATA
4 SATA interfaces
eSATA
Support
Capacity
Up to 10 TB capacity for each disk
Alarm In/Out
16/4
USB Interface
Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0
General
Alimentation
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 45 W (without HDD)
Working Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
Weight
≤ 7 kg (15.4 lb., without HDD)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Video and Audio
  • IP Video Input16-ch (up to 48-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input32-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 *: The 3 MP signal input is only available for channel 1/2/3/4.
  • AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputPAL/NTSC
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • HDMI 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI 2 Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
  • Synchronous Playback16-ch
Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding ResolutionWhen 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
  • Frame RateMain stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p/720p@15fps; WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Video Bitrate32 Kbps to 6 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
Network
  • Remote Connection128
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
  • Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
  • Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard
  • SATA4 SATA interfaces
  • eSATASupport
  • CapacityUp to 10 TB capacity for each disk
  • Alarm In/Out16/4
  • USB InterfaceFront panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0
General
  • Alimentation100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 45 W (without HDD)
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
  • Weight≤ 7 kg (15.4 lb., without HDD)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
