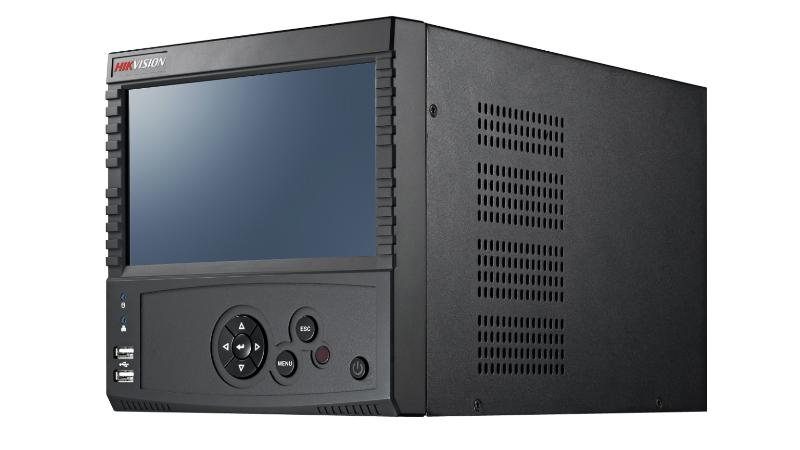

4-ch 1080p H.265 ATM DVR

7-inch touchable LCDConnectable to HDTVI, network and analog cameras
Up to 8-ch IP camera input
Support overlapping the multiple ATM cards’ number and multiple protocols
Support triggering recording once inserting the ATM card
Support triggering recording by ATM transaction behaviors
Privacy mask for masking certain region and protecting sensitive information
Enabling/disabling the function of transaction information overlapping during playback and live view

View Less

DS-8104AHQ(L)I-K4

Specification
Resources
Accessories

Hard disk
SATA4 SATA interfaces
eSATA1 eSATA interface (reserved)
CapacityUp to 8 TB capacity for each disk

External interface
Network interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB interface2 × USB 2.0
Serial interface1 RS-232, 1 RS-485 (full-duplex)
Alarm input/output9/4
DC output2 power supply interfaces of 12 VDC

General
Power supply100 to 240 VAC
Consumption (without HDD or DVD-R/W)≤ 50 W
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity10% to 90%
Dimensions (W × D × H)180 × 280 × 180 mm (7.1 × 11.0 × 7.1 inch)
Weight≤ 5 kg (11 lb)

Video/Audio input
Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video input4-ch;BNC interface (1.0 Vp-p, 75 Ω), TVI/CVBS self-adaptive;3 MP, 1080p30, 1080p25, 720p25, 720p30, 720p50, 720p60, CVBS
IP video input4-ch (up to 8-ch);Up to 8 MP resolution
Audio compressionG.711u
Audio input4-ch, BNC (2.0 Vp-p, 1 kΩ)
Two-way audio input1-ch, BNC (2.0 Vp-p, 1 kΩ)

Video/Audio output
LCD7-inch touchable LCD;Resolution: 1024 × 600
HDMI/VGA outputHDMI: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz;VGA: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Encoding resolutionMain stream:;Main stream: 3 MP@18 fps 1080p/720p/WD1/VGA/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF
Frame rate1/16 fps to 25 fps (P)/30 fps (N)
Video bit rate32 Kbps to 10 Mbps
Audio output2-ch, BNC (Linear, 600 Ω)
Audio bit rate64 Kbps
Dual-streamSupport
Stream typeVideo, Video & Audio
Synchronous playback4-ch

Hard disk

SATA

4 SATA interfaces

eSATA

1 eSATA interface (reserved)

Capacity

Up to 8 TB capacity for each disk

External interface

Network interface

2, RJ45 10M/100M/1000M self-adaptive Ethernet interface

USB interface

2 × USB 2.0

Serial interface

1 RS-232, 1 RS-485 (full-duplex)

Alarm input/output

9/4

DC output

2 power supply interfaces of 12 VDC

General

Power supply

100 to 240 VAC

Consumption (without HDD or DVD-R/W)

≤ 50 W

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10% to 90%

Dimensions (W × D × H)

180 × 280 × 180 mm (7.1 × 11.0 × 7.1 inch)

Weight

≤ 5 kg (11 lb)

Video/Audio input

Video compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Analog video input

4-ch;BNC interface (1.0 Vp-p, 75 Ω), TVI/CVBS self-adaptive;3 MP, 1080p30, 1080p25, 720p25, 720p30, 720p50, 720p60, CVBS

IP video input

4-ch (up to 8-ch);Up to 8 MP resolution

Audio compression

G.711u

Audio input

4-ch, BNC (2.0 Vp-p, 1 kΩ)

Two-way audio input

1-ch, BNC (2.0 Vp-p, 1 kΩ)

Video/Audio output

LCD

7-inch touchable LCD;Resolution: 1024 × 600

HDMI/VGA output

HDMI: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz;VGA: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Encoding resolution

Main stream:;Main stream: 3 MP@18 fps 1080p/720p/WD1/VGA/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF

Frame rate

1/16 fps to 25 fps (P)/30 fps (N)

Video bit rate

32 Kbps to 10 Mbps

Audio output

2-ch, BNC (Linear, 600 Ω)

Audio bit rate

64 Kbps

Dual-stream

Support

Stream type

Video, Video & Audio

Synchronous playback

4-ch
