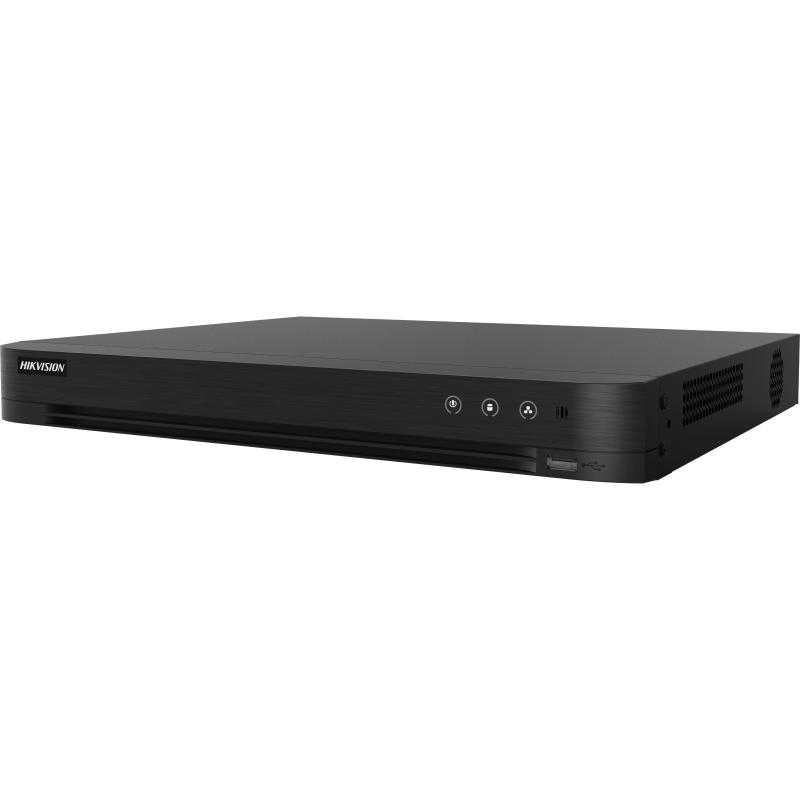

32-ch 1080p Lite 1U H.265 DVR

32 channels and 2 HDDs 1U DVR
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p lite @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 18 network cameras can be connected

View Less

DS-7232HGHI-K2

Especificación
Resources
Accesorios

Video and Audio
Entrada de vídeo IP2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Entrada de video analógico32-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputPAL/NTSC
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω)
Entrada de Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
Salida de audio1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Reproducción Sincrónica 16-ch

Recording
Compresión de vídeoH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Resolución de codificación1080p lite/720p/VGA/WD1/4CIF/CIF
Frame RateMain stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15fps For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)
Vídeo bitrate32 Kbps to 4 Mbps
Doble flujoSupport
Stream TypeVideo, Video & Audio
Compresión de audioG.711u
Audio Bitrate64 Kbps

Red
Conexión remota128
Protocolo de redTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Interfaz de red1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface
SATA2, SATA interface
CapacidadUp to 10 TB capacity for each disk
Interfaz USBFront panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0

General
Fuente de alimentación12 VDC, 3.2 A
Consumo≤ 18 W
Temperatura de trabajo-10 °C to 55 °C (14 °F to 131 °F)
Condiciones de Humedad10% to 90%
Dimensión (W × D × H)380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)
≤ 2.2 kg (4.9 lb)

Video and Audio

Entrada de vídeo IP

2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

Entrada de video analógico

32-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

1080p25, 1080p30, 720p25, 720p30

AHD Input

1080p25, 1080p30, 720p25, 720p30

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

CVBS Input

PAL/NTSC

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω)

Entrada de Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Salida de audio

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Reproducción Sincrónica

16-ch

Recording

Compresión de vídeo

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Resolución de codificación

1080p lite/720p/VGA/WD1/4CIF/CIF

Frame Rate

Main stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15fps For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)

Vídeo bitrate

32 Kbps to 4 Mbps

Doble flujo

Support

Stream Type

Video, Video & Audio

Compresión de audio

G.711u

Audio Bitrate

64 Kbps

Red

Conexión remota

128

Protocolo de red

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Interfaz de red

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

SATA

2, SATA interface

Capacidad

Up to 10 TB capacity for each disk

Interfaz USB

Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0

General

Fuente de alimentación

12 VDC, 3.2 A

Consumo

≤ 18 W

Temperatura de trabajo

-10 °C to 55 °C (14 °F to 131 °F)

Condiciones de Humedad

10% to 90%

Dimensión (W × D × H)

380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)

≤ 2.2 kg (4.9 lb)
