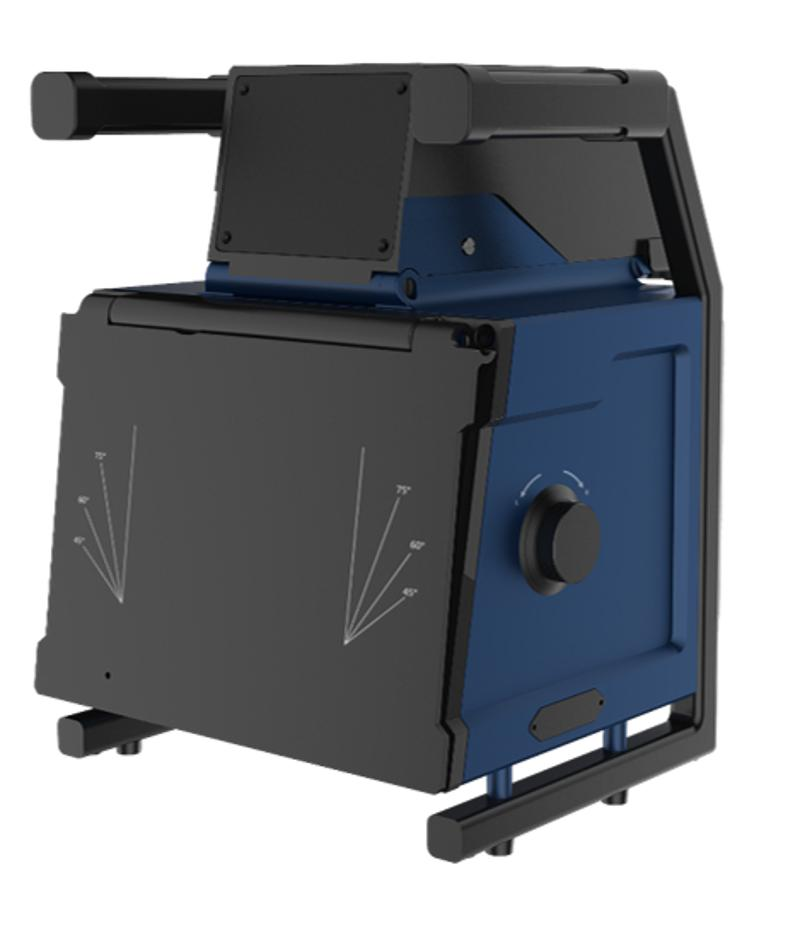

9 MP ANPR Portable Radar Speed Detector

High quality imaging with 9 MP resolution(1'' GMOS)
Efficient H.265 compression technology
Large storage capacity, up to 500 GB SSD
Speed detection ranged from 10 to 320 km/h
Convenient debugging with 720P touch screen
Dismountable built-in lithium battery for power supply
Smart functions: license plate recognition (LPR)

View Less

Ficha Técnica

iDS-TDI900-A(C)/M

Especificación
Resources
Accesorios

Ficha Técnica

Cámara
Sensor de imagen1″ Progressive Scan GMOS
Max. Resolución4096 × 2160
Iluminación mínima0.1 Lux @ (F1.2, AGC ON)
Tiempo de obturación1/25 s to 1/100,000 s

Lente
LenteDC drive
Iris TypeC/CS Interface

Iluminador
Flashlight Control Supports light control/time control

Radar
Frecuencia de trabajo24.15 GHz ± 45 MHz
Rango de velocidad10 to 320 km/h
Precisión de medición de velocidad-2 to 2 km/h
Trigger ModeTrigger vehicle head, trigger vehicle tail, and trigger vehicle head and tail
Antenna Beam Width4.9 × 17.3°

Vídeo
Main stream50Hz: 25 fps (4096 × 2160, 3392 × 2008, 2944 × 1656, 1920 × 1080, 1280 × 720, 704 × 576)↵ 60 Hz: 30 fps (4096 × 2160, 3392 × 2008, 2944 × 1656, 1920 × 1080, 1280 × 720, 704 × 576)
Sub-stream 50 Hz: 25 fps (3392 × 2008, 2944 × 1656, 1920 × 1080, 1280 × 720, 704 × 576) 60 Hz: 30 fps (3392 × 2008, 2944 × 1656, 1920 × 1080, 1280 × 720, 704 × 576)
Third Stream50 Hz: 30 fps (1280 × 720) 60 Hz: 30 fps (1280 × 720)
Compresión de videoH.265/H.264/MJPEG;JPEG encoding
Vídeo bitrate32 Kbps to 16 Mbps

Red
ProtocolosTCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP
Vista en vivo simultáneaUp to 6 channels
APIONVIF (PROFILE T, PROFILE S, PROFILE G), ISAPI, SDK
Usuario/operadorUp to 16 users 3 user levels: administrator, operator and user
SeguridadPassword protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest authentication for ONVIF (Version 2.1)
Almacenamiento en redBuilt-in solid state disk (500 GB)
ClienteiVMS-4200 (Only for video live view and LPR information search)
Navegador webIE8-IE11, plug-in free live view supported

Imagen
Configuración de imagenSaturation, brightness, contrast, white balance, gain and 3D DNR are adjustable via client software.
Interruptor día/nocheAuto/Scheduled/Triggered by alarm in
Mejora de la imagenBLC, HLC, 3D DNR
Superposición de imagenLOGO picture can be overlaid on video with 128 × 128 24-bit bmp format.

Supplement Detection (Satellite Positioning)
Posicionamiento satelitalGPS

Interfaz
Salida de Vídeo3 outputs for flashlight control
Ethernet Interface1 RJ45 10M/100M/1000M Ethernet interface
USB1 USB 3.0

Evento
Evento BásicoHDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception

Tráfico por carretera y detección de vehículos
CoverageUp to 2 lanes
Función inteligenteLicense Plate Recognition
LPR Countries/RegionsMiddle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
Accuracy (Under recommended installation and lighting conditions)Capture rate > 90% LPR accuracy > 95% Mistaken capture rate < 3%
Sin detección de matrículaSupported

General
Sistema operativoLinux
alimentación19 VDC, Max.25 W, and embedded 10.8V lithium battery
Weight Approx. 9 kg (19.84 lb)
Operating ConditionTemperature: -30 °C to +70 °C (-22 °F to +158 °F) Humidity: 90% or less (non-condensing);Temperature: -20 °C to +60 °C (-4 °F to +140 °F) Humidity: 90% or less (non-condensing)
Función generalOne-key reset, three streams, heartbeat, password protection, watermark and NTP time sync.

Certificaciones
ProtecciónIP54

Cámara

Sensor de imagen

1″ Progressive Scan GMOS

Max. Resolución

4096 × 2160

Iluminación mínima

0.1 Lux @ (F1.2, AGC ON)

Tiempo de obturación

1/25 s to 1/100,000 s

Lente

DC drive

Iris Type

C/CS Interface

Iluminador

Flashlight Control

Supports light control/time control

Radar

Frecuencia de trabajo

24.15 GHz ± 45 MHz

Rango de velocidad

10 to 320 km/h

Precisión de medición de velocidad

-2 to 2 km/h

Trigger Mode

Trigger vehicle head, trigger vehicle tail, and trigger vehicle head and tail

Antenna Beam Width

4.9 × 17.3°

Vídeo

Main stream

50Hz: 25 fps (4096 × 2160, 3392 × 2008, 2944 × 1656, 1920 × 1080, 1280 × 720, 704 × 576)↵ 60 Hz: 30 fps (4096 × 2160, 3392 × 2008, 2944 × 1656, 1920 × 1080, 1280 × 720, 704 × 576)

Sub-stream

50 Hz: 25 fps (3392 × 2008, 2944 × 1656, 1920 × 1080, 1280 × 720, 704 × 576) 60 Hz: 30 fps (3392 × 2008, 2944 × 1656, 1920 × 1080, 1280 × 720, 704 × 576)

Third Stream

50 Hz: 30 fps (1280 × 720) 60 Hz: 30 fps (1280 × 720)

Compresión de video

H.265/H.264/MJPEG;JPEG encoding

Vídeo bitrate

32 Kbps to 16 Mbps

Red

Protocolos

TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP

Vista en vivo simultánea

Up to 6 channels

API

ONVIF (PROFILE T, PROFILE S, PROFILE G), ISAPI, SDK

Usuario/operador

Up to 16 users 3 user levels: administrator, operator and user

Seguridad

Password protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest authentication for ONVIF (Version 2.1)

Almacenamiento en red

Built-in solid state disk (500 GB)

Cliente

iVMS-4200 (Only for video live view and LPR information search)

Navegador web

IE8-IE11, plug-in free live view supported

Imagen

Configuración de imagen

Saturation, brightness, contrast, white balance, gain and 3D DNR are adjustable via client software.

Interruptor día/noche

Auto/Scheduled/Triggered by alarm in

Mejora de la imagen

BLC, HLC, 3D DNR

Superposición de imagen

LOGO picture can be overlaid on video with 128 × 128 24-bit bmp format.

Supplement Detection (Satellite Positioning)

Posicionamiento satelital

GPS

Interfaz

Salida de Vídeo

3 outputs for flashlight control

Ethernet Interface

1 RJ45 10M/100M/1000M Ethernet interface

USB

1 USB 3.0

Evento

Evento Básico

HDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception

Tráfico por carretera y detección de vehículos

Coverage

Up to 2 lanes

Función inteligente

License Plate Recognition

LPR Countries/Regions

Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan

Accuracy (Under recommended installation and lighting conditions)

Capture rate > 90% LPR accuracy > 95% Mistaken capture rate < 3%

Sin detección de matrícula

Supported

General

Sistema operativo

Linux

alimentación

19 VDC, Max.25 W, and embedded 10.8V lithium battery

Weight

Approx. 9 kg (19.84 lb)

Operating Condition

Temperature: -30 °C to +70 °C (-22 °F to +158 °F) Humidity: 90% or less (non-condensing);Temperature: -20 °C to +60 °C (-4 °F to +140 °F) Humidity: 90% or less (non-condensing)

Función general

One-key reset, three streams, heartbeat, password protection, watermark and NTP time sync.

Certificaciones

Protección

IP54
